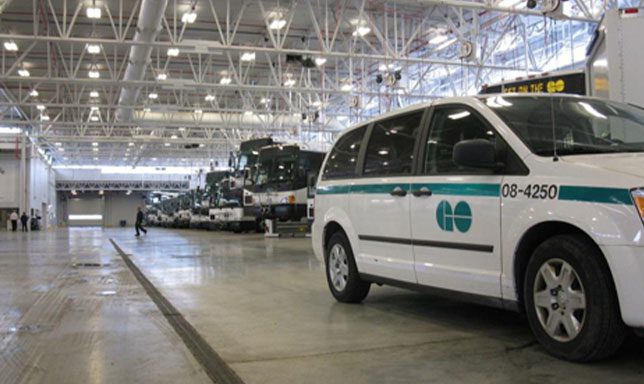

Auto Service Centers
Auto Centers of all sizes can rely on the quality and durability of ACO drainage solutions to maintain that working areas are properly drained from water and other liquids.
Locations that can benefit from ACO products:
- Body shops
- Mechanic shops
- Taxi garages
- Public transportation garages
Products
Stormwater Management
KlassikDrain
General Purpose Drains- Polymer concrete channels
- 0.5% sloped systems
- Steel edge rails
- Steel, iron, and plastic grates
- EN1433 A–E grate loading
PowerDrain®
Heavy-Duty Drains- Polymer concrete channels
- 0.5% sloped systems
- Ductile iron edge rails
- Ductile iron grates
- EN1433 A–F grate loading
SlabDrain
Shallow Depth Drains- Polymer concrete channels
- Constant depth systems
- Various edge rail & grate materials
- Shallow invert depth
- EN1433 A–F grate loading
Sumps
Multi-System Catch Basins- Polymer concrete bodies
- Constant depth systems
- Ductile iron frames/grates
- Standalone or system-integrated
- Supports AASHTO H20/HS20
Oil-Water Separators
Stormwater TreatmentPolymer concrete and polyethylene separators capable of removing oil and suspended solids from wastewater. Multiple capacities and flow rates available.
Spill Containment Curbs
Spill RetentionDurable, low-maintenance polymer concrete barrier for containing hazardous spills in industrial and chemical storage areas. Sloped for forklift traffic.
Case Studies
-
Firestone Truck Dock
Akron, OhioACO KlassikDrain K200 was installed at the converted loading dock of the Firestone Triangle Building to control surface runoff in the lower bay. Chosen for fast, cost-effective installation and strong hydraulic capacity, the system provides about 140 linear feet in two runs to reduce ponding and improve safety.
Considerations
Loading
- Frequent car and truck traffic will require a drainage system and grate with a minimum Load Rating of Class C or higher
Application
- ADA compliant and/or slip resistant grates may be required in pedestrian access areas
- Surface water runoff is likely to contain hydrocarbons and an oil/water separator may be required
- Car wash areas result in hydrocarbons, oils, road salts, detergent, and sediment in the wastewater which may need treatment before release/reuse
