Brickslot
Slotted Paver Drains

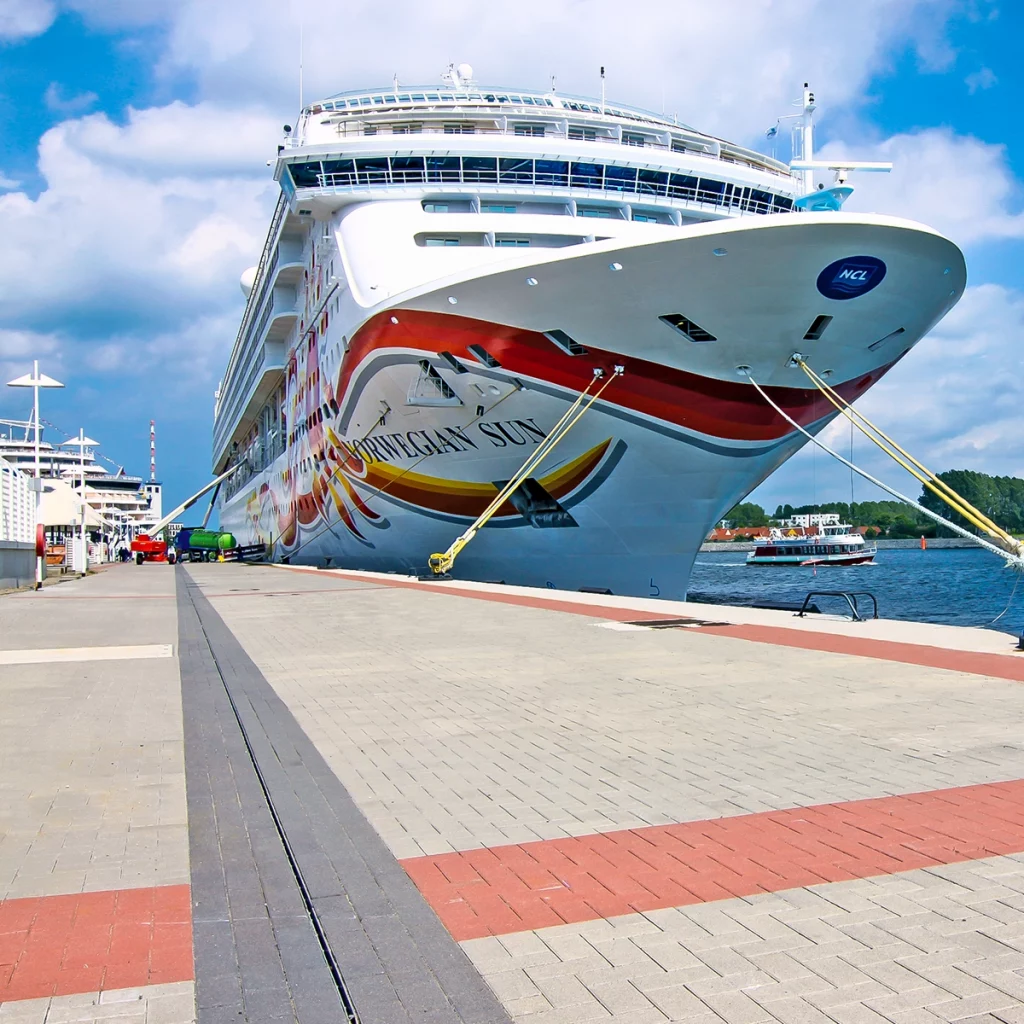

BrickSlot offers a discreet drainage solution that integrates seamlessly with paver surfaces, maintaining clean aesthetics without sacrificing performance. Designed for pedestrian and heavy-duty commercial areas, its slim slot opening provides effective water control with minimal visual impact. Durable steel construction ensures long-lasting reliability, while easy access units simplify maintenance, making Brickslot the perfect choice for stylish, functional outdoor spaces.
Products
-
Brickslot 100
- 0.47” slot width
- Slotted cover for pavers
- Fits K100/H100K-6/H100K-8
- Stainless/Galvanized steel
- EN-1433 Load Class A–C
-
Brickslot 100 Heel-Resistant
- 2 adjacent 0.31″ wide slots
- Slotted cover for pavers
- Fits K100 / H100K-6 / H100K-8
- Stainless or Galvanized steel
- EN-1433 Load Class A–C
-

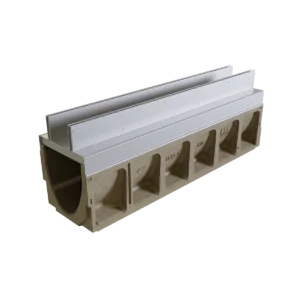

Brickslot 200 Twinslot
- 2 parallel 0.47” wide slots
- Slotted cover for pavers
- Fits K200/H200K-13/H200K-13
- Stainless/Galvanized steel
- EN-1433 Load Class A–C
-
Brickslot 200 Heel-Resistant
- 2 adjacent 0.31″ wide slots
- Slotted cover for pavers
- Fits K200 / H200K-13 / H200K-13
- Stainless or Galvanized steel
- EN-1433 Load Class A–C
Features & Benefits
Interconnecting End Profiles
Allow easy and effective joining of channels. Appropriate sealant can be used to create a sealed joint.
Knock-Outs
Channels feature numbering on sidewalls and base of channel to allow easy identification after concrete encasement.
Channel Identification
Protrusions in grate fit into recesses on the edge rail to prevent longitudinal movement.
System Numbering
Each end of the channel indicates the number of the channel that will connect to it.
Sloped (0.5%) Channel Units
Meter long units provide 131'-3" continuous slope—equates to 1/17" fall per linear foot. Constant depth units can be used to extend run lengths.
Applications
-
Emergency Facilities
Public Services -
Fountains & Landmarks
Sports & RecreationParks and fountains can take in many sizes and shapes and may require a variety of drainage solutions that... -
Hospitals & Clinics
Public ServicesTrench drains in hospitals and other healthcare facilities are an important part of the overall public and property safety... -
Hotels & Resorts
Hospitality & ResidentialThe hospitality industry have needs of very effective, attractive drain grates that allow for fast liquid drainage while maintaining... -
Multifamily & Residential
Hospitality & ResidentialApartments and townhouses complexes may need different types of drainage systems that have different load and terrain specifications. The... -
Parks & Public Spaces
Sports & Recreation -
Retail & Office Spaces
Commercial & RetailRetail and office buildings of any size can benefit from the widest range of drainage systems that provide aesthetic... -
Schools & Universities
Public ServicesSchool and University drainage is often found in large areas across buildings, sidewalks, sport facilities and parking areas. Most...
