SlabDrain
Shallow Depth Drains

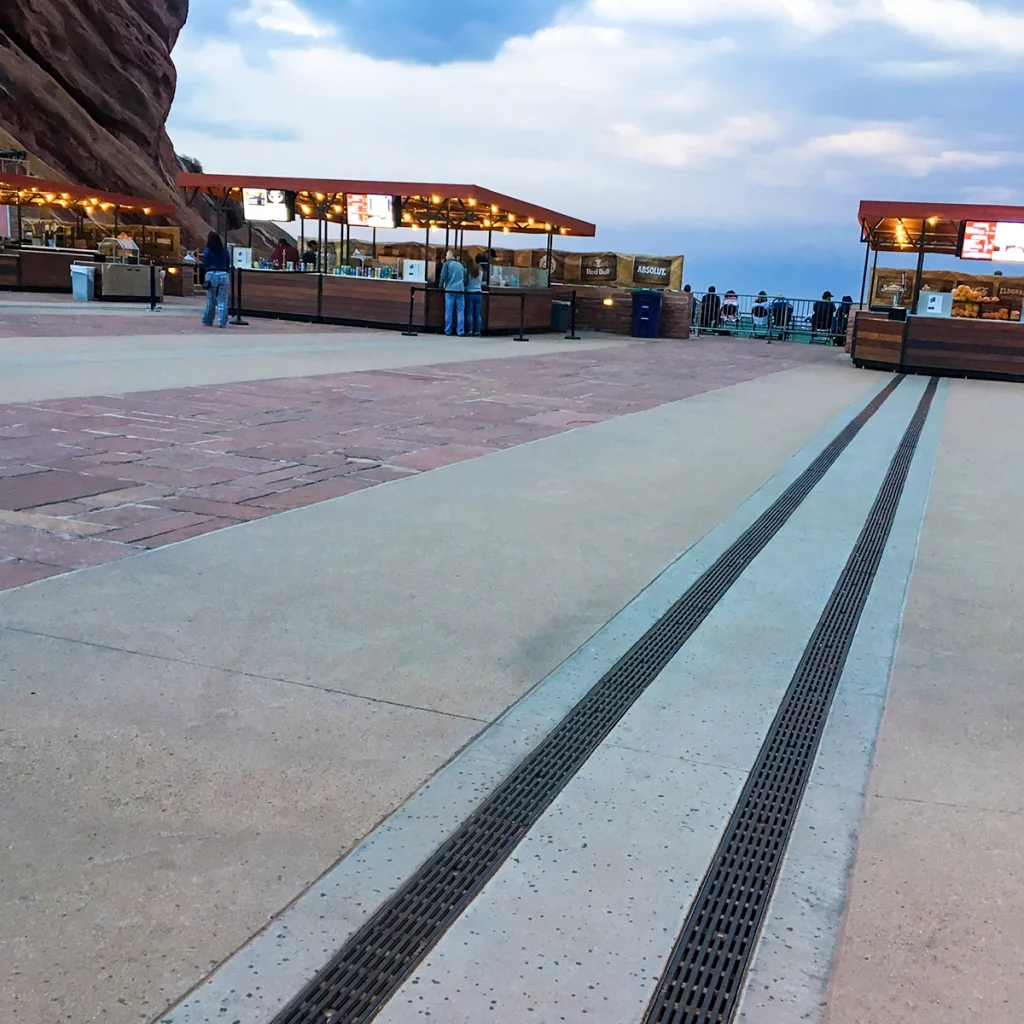

SlabDrain is a shallow invert trench drain with a constant depth that offers a smart solution for sites with limited installation space, delivering efficient water control in tight areas. It is available with different edge rails and its streamlined design blends strength with versatility, making it suitable for uses from walkways to demanding industrial environments. With low-maintenance grates and flexible configuration options, SlabDrain ensures long-lasting performance where other trench drains may not fit.
Products
-

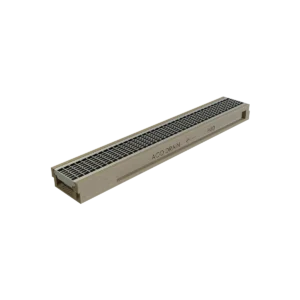

SlabDrain H100-8
- 4” internal width
- 2.56” invert depth
- Polymer concrete channels
- Non-metallic edges
- EN-1433 Load Class A–C
-

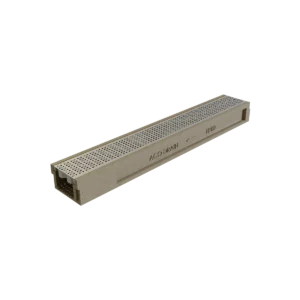

SlabDrain H100-10
- 4” internal width
- 3.35” invert depth
- Polymer concrete channels
- Non-metallic edges
- EN-1433 Load Class A–C
-
SlabDrain H100K-6/H100KS6
- 4” internal width
- 1.78” invert depth
- Polymer concrete channels
- Stainless/galvanized rails
- EN-1433 Load Class A–E
-
SlabDrain H100K-8/H100KS8
- 4” internal width
- 2.56” invert depth
- Polymer concrete channels
- Stainless/galvanized rails
- EN-1433 Load Class A–E
-

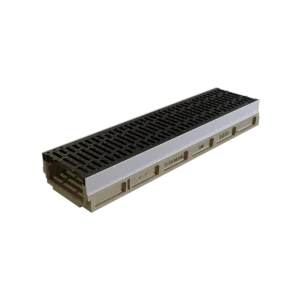

SlabDrain H200K-13/H200KS13
- 8” internal width
- 3.94” invert depth
- Polymer concrete channels
- Stainless/galvanized rails
- EN-1433 Load Class A–E
-

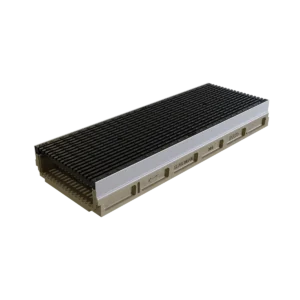

SlabDrain H300K-13/H300KS13
- 12” internal width
- 3.94” invert depth
- Polymer concrete channels
- Stainless/galvanized rails
- EN-1433 Load Class A–E
-

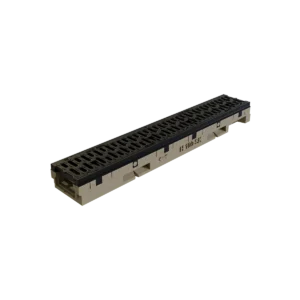

SlabDrain H100SK-10
- 4” internal width
- 2.83” invert depth
- Polymer concrete channels
- Ductile iron rails
- EN-1433 Load Class A–F
-

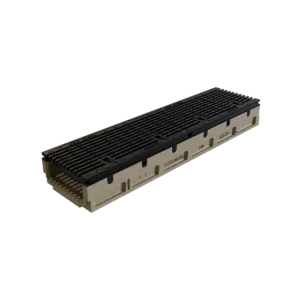

SlabDrain H200SK-13
- 8” internal width
- 3.94” invert depth
- Polymer concrete channels
- Ductile iron rails
- EN-1433 Load Class A–F
-

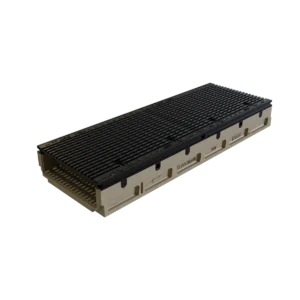

SlabDrain H300SK-13
- 12” internal width
- 3.94” invert depth
- Polymer concrete channels
- Ductile iron rails
- EN-1433 Load Class A–F
Features & Benefits

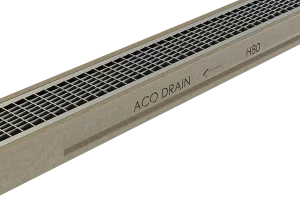

H100 Polymer Concrete Edge
Ideal for situations where metals cannot be used.

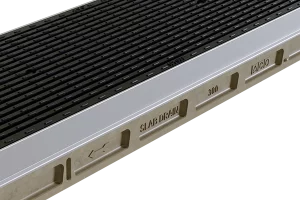

HK/HKS Steel Edge Rail
Provides maximum strength and protection for channel body.

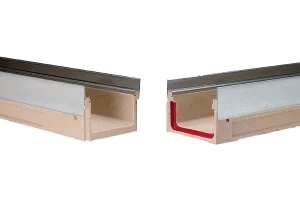

Interconnecting End Profiles
Allow easy and effective joining of channels.

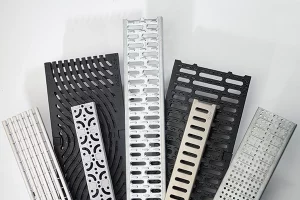

Wide Choices of Grates
In various materials, styles and slot configurations (including ADA compliant).
H100 - From Load Class A to Load Class C (25 tons).
H100K/H200K/H300K - From Load class A to Load Class E (60 tons).

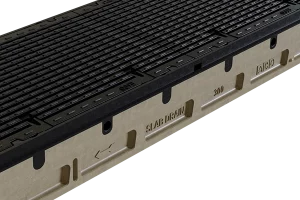

HSK Ductile Iron Edge Rail
Provides maximum strength and protection for channel body.

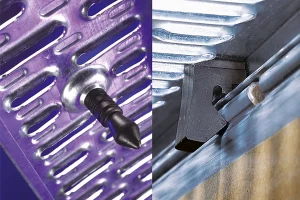

QuickLok® & DrainLok
Patented, boltless locking systems provide quick fitting and removal of grates. Helps reduce installation/maintenance time and cost. H100 will accept QuickLok® grates only.

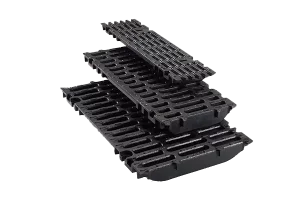

Ductile Iron Grates
Heavy duty ductile iron grates in choice of Load Class F slotted or longitudinal ADA compliant (H200SK & H300SK ADA grates are rated to Load Class E). A 4-bolt slotted grate is also available.

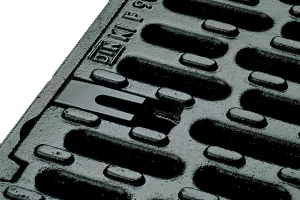

PowerLok
A patented, boltless locking system that allows for quick fitting and removal of HSK grates, helping reduce installation/maintenance time and cost.

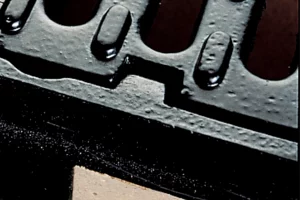

Anti-Shunt Lugs
Protrusions in the HSK grate fit into recesses on the edge rail to prevent longitudinal movement.
