FlowDrain
Fiberglass Drains

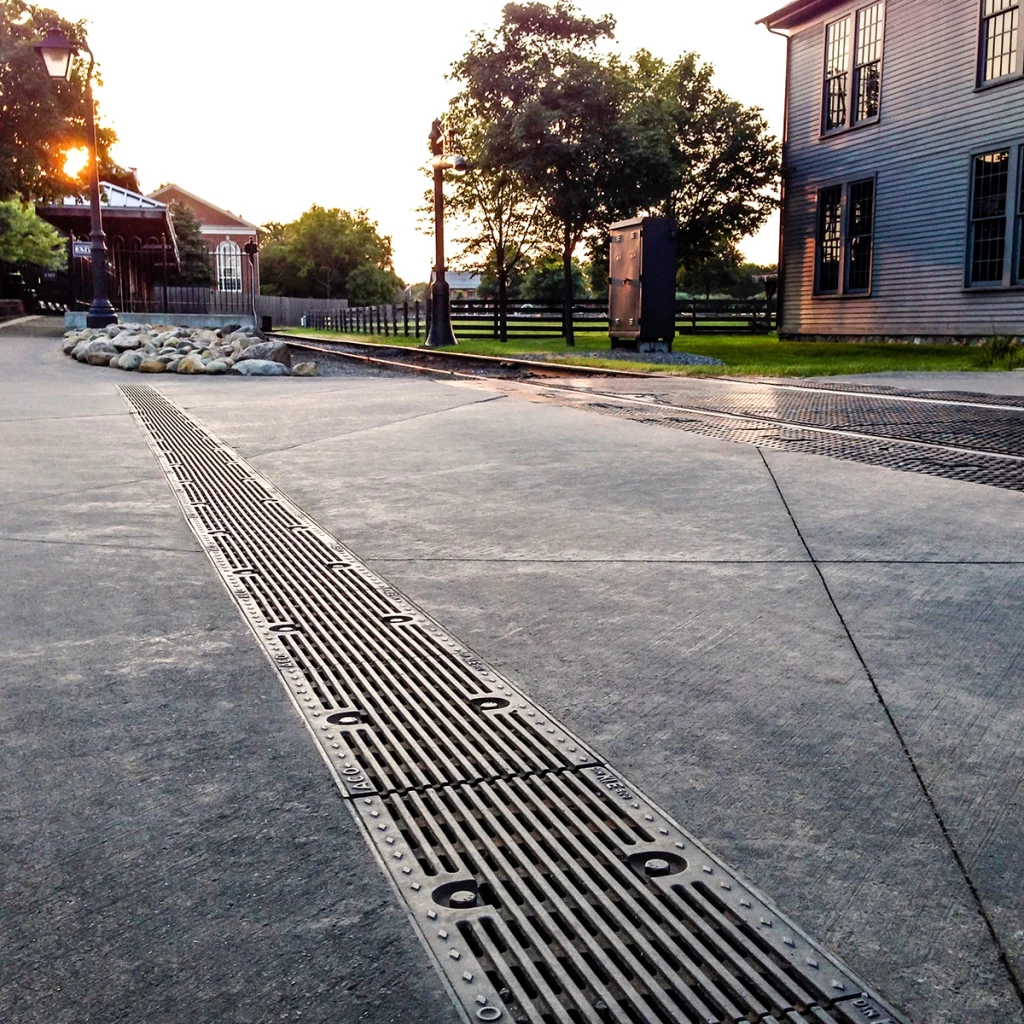

The 1.0%-sloped FlowDrain FG200 system is designed to handle demanding environments where strength, efficiency, and reliability matter most. Its lightweight, chemical-resistant fiberglass channels make filling long, uninterrupted trenches easier, while its steel/iron frames and grates are capable of handling EN1433 F loads along those same lengthy runs.
Products
-
FlowDrain FG200
Fiberglass trench drain system with steel frame edge support. Ideal for long, straight runs in concrete slabs across industrial and commercial applications. Pedestrian to industrial-duty loads (EN-1433 Load Class E)…
Features & Benefits

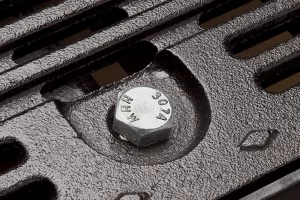

Bolted Grates
FG200 grates are lockable with two ½ - 13 x 1½" bolts fixing directly into steel frame at 18" (457 mm) intervals.

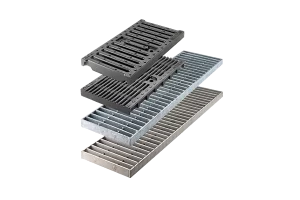

Choice of Grates
In various materials and styles (including ADA compliant) for applications up to Load Class E.

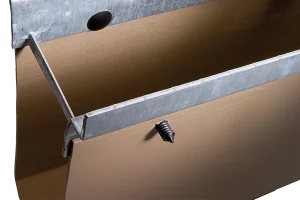

Snap-Fit Studs
Hold channel body securely to frame and allows quick assembly on-site. Supplied with frame.

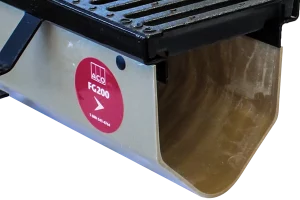

Directional Arrows
Sticker on side of channel indicates flow direction and ensures channels are installed correctly.

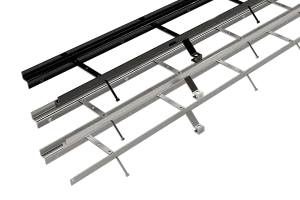

Choice of Steel Frame
Provides grate support and protects channel edge from damage. Available in black coated, galvanized and stainless steel.

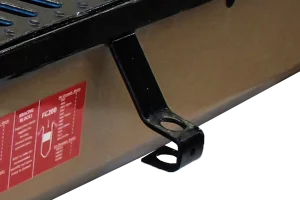

Installation Brackets
A 2" internal width, constant depth system for high profile, aesthetic applications where a barrier is required to separate wet and dry areas.

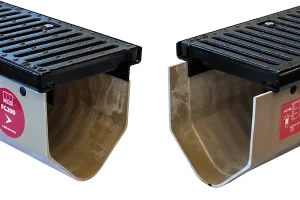

Interconnecting End Profiles
Allow easy and effective joining of channels. Sealant can be used to create sealed joints.

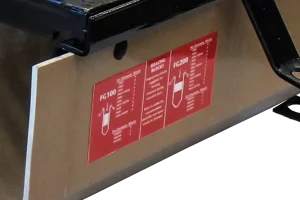

Bracing Blocks
Supplied to brace deeper channels during concrete pour, details on how to position are shown on a sticker on each channel.

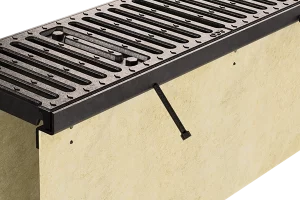

Nelson Studs
Attached to frame, act as concrete anchors to secure channels into concrete surround.
Sloped (1.0%) Channel Units
9' (2.75 m) long units provide 108' (32.9 m) continuous slope. Equates to 1/8" fall per linear foot. Four constant depth channels extend run lengths. Four 3' (0.915 m) units and accessories also available.
