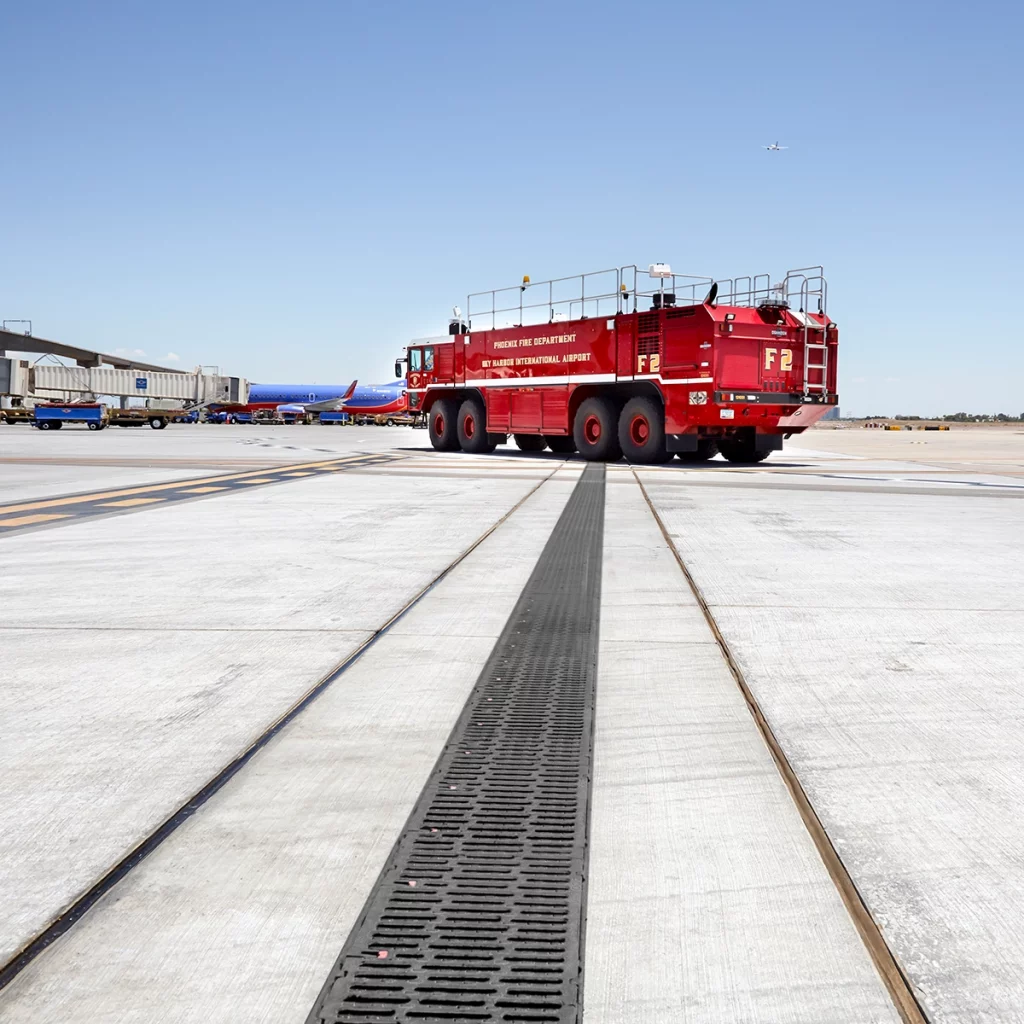

Power drain

PowerDrain®

Heavy-Duty Drains
PowerDrain is a set of modular, heavy-duty, 0.5% slope trench drain systems designed for the toughest environments. Featuring polymer concrete channels with integrally-cast ductile iron edge rails, each system delivers long-lasting strength under pedestrian to industrial-duty loads up to and including EN1433 Load Class F.

With options like ADA-compliant grates and secure PowerLok® locking, PowerDrain ensures reliable water management in commercial areas, industrial sites, airports and more.

Products

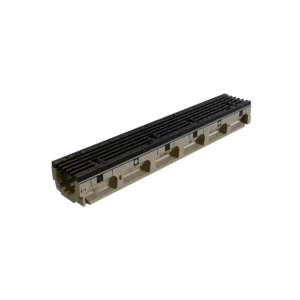

  • PowerDrain S100K

    PowerDrain S100K

    • 4” internal width
    • Polymer concrete channels
    • Ductile iron rails
    • 0.5% sloped system
    • EN-1433 Load Class A–F
    Explore Product
  • PowerDrain S200K

    PowerDrain S200K

    • 8” internal width
    • Polymer concrete channels
    • Ductile iron rails
    • 0.5% sloped system
    • EN-1433 Load Class A–F
    Explore Product
  • PowerDrain S300K

    PowerDrain S300K

    • 12” internal width
    • Polymer concrete channels
    • Ductile iron rails
    • 0.5% sloped system
    • EN-1433 Load Class A–F
    Explore Product

Features & Benefits

PowerLok

PowerLok®

A patented, boltless locking system that allows for quick fitting and removal of grates, helping reduce installation/maintenance time and cost.

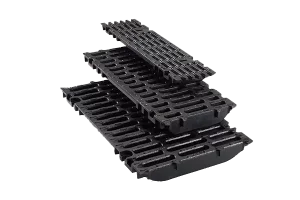

Ductile Iron Grates

Ductile Iron Grates

Heavy duty ductile iron grates with ADA compliant longitudinal (Load Class E*) or slotted (Load Class F) designs available. *S100K ADA grates rated to Load Class F

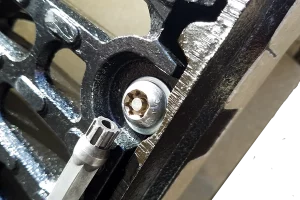

4-Bolt Slotted Grate

4-Bolt Slotted Grate

4-bolt grate option is available on all widths to provide maximum security and stability for super heavy duty applications.
Concrete Anchor Boss

Concrete Anchor Boss

A drill-through hole in the ductile iron rail enables a concrete anchor (4 per meter) to be attached for extra embedment into concrete haunch.
Anti-Shunt Lugs

Anti-Shunt Legs

Protrusions in grate fit into recesses on the edge rail to prevent longitudinal movement.

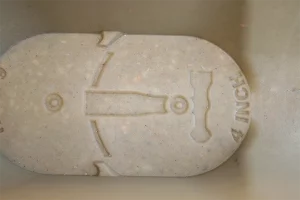

Knock-Outs

Knock-Outs

Included on every 5th channel to allow vertical evacuation of the system along the run.

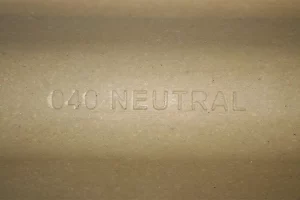

Channel Identification

Channel Identification

Channels feature numbering on sidewalls and base of channel to allow easy identification after concrete encasement.
Interconnecting End Profiles

Interconnecting End Profiles

Allow easy and effective joining of channels. Appropriate sealant can be used to create a sealed joint.

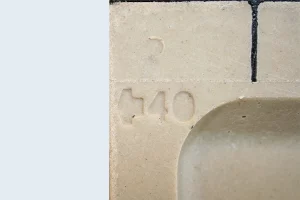

System Numbering

System Numbering

Each end of the channel indicates the number of the channel that will connect to it.
Sloped (0.5%) Channel Units

Sloped (0.5%) Channel Units

Meter long units provide 131'-3" continuous slope—equates to 1/17" fall per linear foot. Constant depth units can be used to extend run lengths.
