KlassikDrain
General Purpose Drains
KlassikDrain is a general purpose sloped trench drain made from polymer concrete, designed for superior strength and durability. Featuring advanced edge rail protection and a modular channel system, it ensures reliable performance for commercial and industrial drainage needs. Easy to install and built to last, KlassikDrain delivers efficient water management with low maintenance.
Products
-
KlassikDrain K100/KS100
- 4” internal width
- Polymer concrete channels
- Stainless/galvanized rails
- 0.5% sloped system
- EN-1433 Load Class A–E
-
KlassikDrain K200/KS200
- 8” internal width
- Polymer concrete channels
- Stainless/galvanized rails
- 0.5% sloped system
- EN-1433 Load Class A–E
-
KlassikDrain K300/KS300
- 12” internal width
- Polymer concrete channels
- Stainless/galvanized rails
- 0.5% sloped system
- EN-1433 Load Class A–E
-
MiniKlassik K50/KS50
- 2” internal width
- Polymer concrete channels
- Stainless/galvanized rails
- Constant depth system
- EN-1433 Load Class A–C
Features & Benefits
DrainLok & QuickLok®
Patented, boltless locking systems provide quick fitting and removal of grates. Helps reduce installation time and cost.

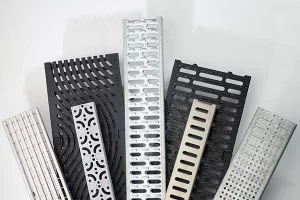

Wide Choice of Grates
In various materials and styles (including ADA compliant) for applications from Load Class A to Load Class E.

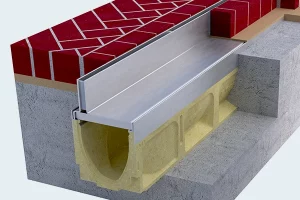

Brickslot 100 & 200
A discreet drainage solution for use with brick and stone pavers. Available as standard, Heel Resistant, and Twinslot versions.

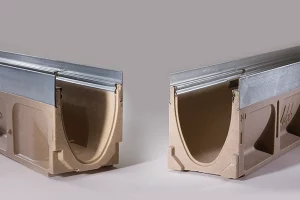

Interconnecting End Profiles
Allow easy and effective joining of channels. Appropriate sealant can be used to create a sealed joint.

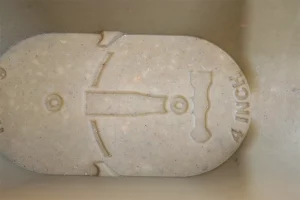

Knock-Outs
Included on every 5th channel to allow vertical evacuation of the system along the run.

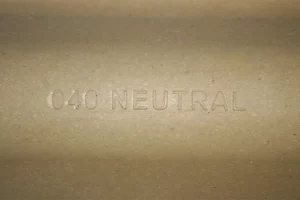

Channel Identification
Channels feature numbering on sidewalls and base of channel to allow easy identification after concrete encasement.

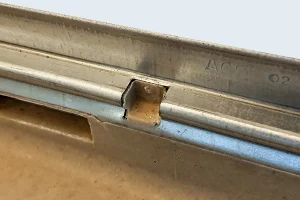

Anti-Shunt Lugs
Protrusions in grate fit into recesses on the edge rail to prevent longitudinal movement.
System Numbering
Each end of the channel indicates the number of the channel that will connect to it.
Sloped (0.5%) Channel Units
Meter long units provide 131'-3" continuous slope—equates to 1/17" fall per linear foot. Constant depth units can be used to extend run lengths.
