Fire Departments
Fire Departments require heavy duty drainage solutions to meet the demands of heavy vehicles – such as water trucks – and to provide a safe, slip-free environment. Trench drains provide an even floor with minimal slope that is safer for firefighters inside and outside of fire stations.
Products
Stormwater Management
KlassikDrain
General Purpose Drains- Polymer concrete channels
- 0.5% sloped systems
- Steel edge rails
- Steel, iron, and plastic grates
- EN1433 A–E grate loading
SlabDrain
Shallow Depth Drains- Polymer concrete channels
- Constant depth systems
- Various edge rail & grate materials
- Shallow invert depth
- EN1433 A–F grate loading
ACO StormBrixx®
Modular Water TanksStormBrixx is a geocellular stormwater storage solution designed to maximize capacity in areas with depth or space restrictions. Its modular, brick-bonding design ensures stability, while lightweight construction simplifies installation alongside existing utilities. Built for durability with a 50–60 year design life, StormBrixx offers reliable water management that reduces excavation needs and provides long-lasting performance in urban and industrial environments.
Building Drainage
ShowerChannel
Linear Shower DrainsShower drain channels combining sleek aesthetics with reliable performance. Multiple edge profiles, sizes, outlet options, and grate designs/finishes available.
ShowerPoint
Point Shower DrainsPoint shower drains combining sleek aesthetics with reliable performance. Multiple edge profiles, sizes, and grate designs/finishes available.
Case Studies
-
Fair Fax Fire & Rescue

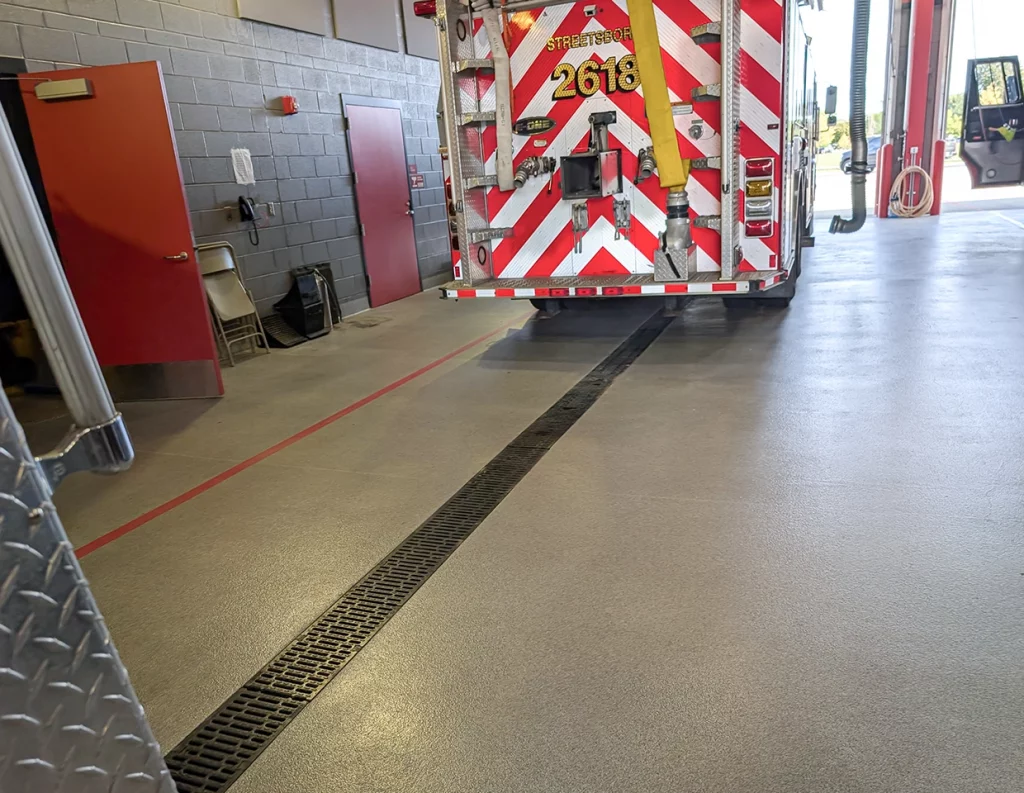

Herndon, VirginiaACO FlowDrain FG200 was installed along the center of Fairfax County Fire & Rescue’s fire engine bays to capture washdown water. Located outside wheel paths, the system could use Load Class E rather than F, delivering compliant, cost-effective drainage while keeping bay floors clear and safe for operations.
Considerations
Loading
- Extraordinary heavy loads may be present and require a drainage system and grate with a minimum Load Rating of Class F
- Monolithic systems (Monoblok) or those cast into the slab (Qmax) may be required to withstand dynamic loads
Application
- High capacity intake grates may be required if large volumes are present
- Wastewater from vehicle washdown may contain hydrocarbons and post collection treatment may be necessary
- Slip resistant grates may be required in pedestrian access areas
Areas with large run-off volumes may be ideal for modular water storage such as ACO StormBrixx
