FloorDrain Square 8"

FloorDrain Square 8″

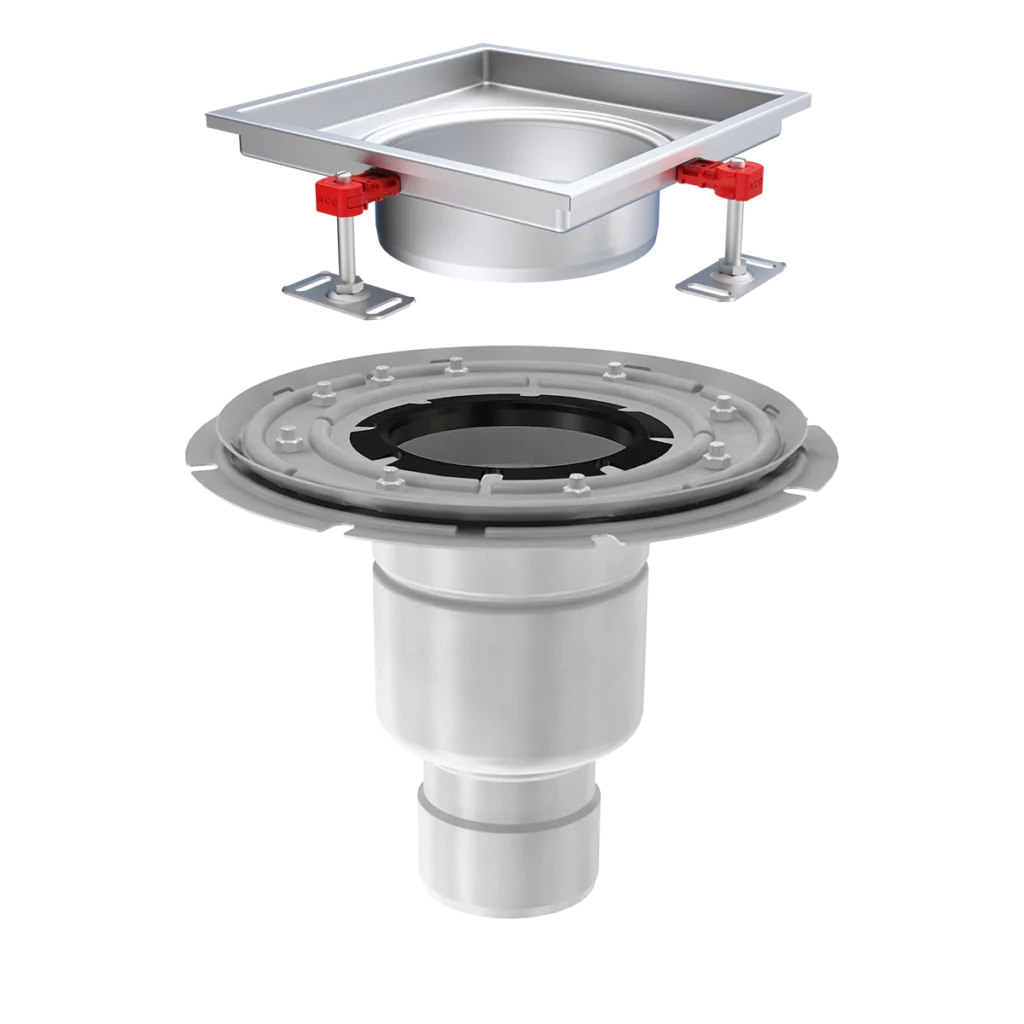

8” Wide Stainless Steel Square Floor Drain
Hygienic floor drain with minimal installation. Ideal for commercial kitchens, restaurants, and food processing areas. Deep-drawn body with ≥ 1/8″ (3 mm) internal radii and dry-sump design for complete drainage and easy cleaning.
  • 8″ × 8″ square drain body available in AISI 304 or 316L stainless steel
  • Available in fixed-height or adjustable-height models
  • Various square grate style options available
  • Can be used with ACO Hub Drains to capture wastewater from multiple outlet lines
  • Can be stand-alone or integrated into a trench drain system
Find a Rep

Technical Documents

  • Product Literature
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Drains
    FloorDrain Square 8″
    • ACO Stainless Steel Resistance Table PDF
    • ACO Building Drainage Winery Brochure PDF
    • ACO Building Drainage Food & Beverage Brochure PDF
    • ACO Building Drainage Commercial Kitchen Brochure PDF
    • ACO Building Drainage Brewery Brochure PDF
    • ACO FloorDrain Product Line Overview PDF
    • ACO FloorDrain Top & ACO BoxDrain Installation Guide PDF
    • ACO Stainless Catalog VIEW
    • ACO Building Drainage – 304 vs 316L Stainless Steel PDF
  • Specification Drawings
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Drains
    FloorDrain Square 8″
    • ACO FloorDrain – 8in Adjustable Mech. Clamping Flange, 4in Vertical Outlet Spec Sheet PDF
    • ACO FloorDrain – 8in Adjustable Location Flange 4in Vertical Outlet Spec Sheet PDF
    • ACO FloorDrain – 8 Inch Fixed Height, 4 Inch Vertical Outlet Spec Sheet PDF
    • ACO FloorDrain – 8 Inch Debris Strainer Basket Spec Sheet PDF
    • ACO FloorDrain – 8 Inch Adjustable Top Spec Sheet PDF
    • ACO FloorDrain – Slot Cover Grate Spec Sheet PDF
    • ACO FloorDrain – Odor Seal Cover Spec Sheet PDF
    • ACO FloorDrain – Quadrato Grate Spec Sheet PDF
    • ACO FloorDrain – Raising Piece Spec Sheet PDF
    • ACO FloorDrain – Funnel Grate Spec Sheet PDF

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Funnel LD

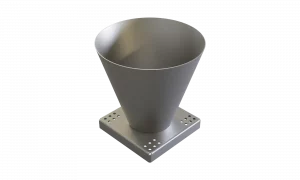

    Funnel LD

    Part No. 415918

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Weight 3.50 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Ladder LD

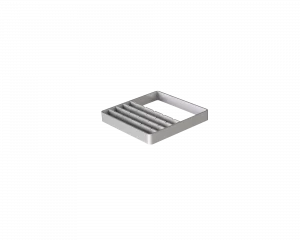

    Half-Ladder LD

    Part No. 416919

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 3.01" Open, 6.61" x 0.86" Ladder avg.
    Intake Area 35.00 in2
    Weight 2.40 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Ladder LD

    Half-Ladder LD

    Part No. 416918

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 3.01" Open, 6.61" x 0.86" Ladder avg.
    Intake Area 35.00 in2
    Weight 2.40 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Plate LD

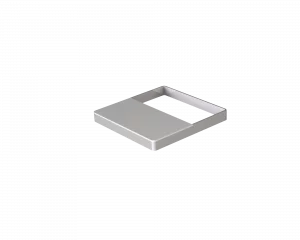

    Half-Plate LD

    Part No. 416929

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 3.01" avg.
    Intake Area 18.80 in2
    Weight 2.60 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Plate LD

    Half-Plate LD

    Part No. 416928

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 3.01" avg.
    Intake Area 18.80 in2
    Weight 2.60 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Ladder LD

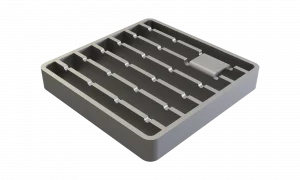

    Ladder LD

    Part No. 416913

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 0.79" avg.
    Intake Area 31.30 in2
    Weight 3.50 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder LD

    Ladder LD

    Part No. 416912

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 0.79" avg.
    Intake Area 31.30 in2
    Weight 3.50 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Quadrato LD

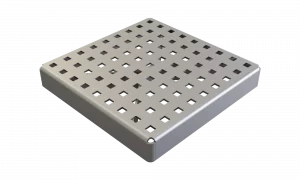

    Quadrato LD

    Part No. 408192

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 0.28" x 0.28" avg.
    Intake Area 6.20 in2
    Weight 1.70 lbs
    ADA Compliant Chem Resist Heel Resistant LEED Certified
    Spec sheet
  • Quadrato LD

    Quadrato LD

    Part No. 408092

    Light Duty (ASME) – ≤2,000 LBS
    Width 8"
    Length 6.61"
    Slot Size 0.28" x 0.28" avg.
    Intake Area 6.20 in2
    Weight 1.70 lbs
    ADA Compliant Chem Resist Heel Resistant LEED Certified
    Spec sheet
  • Heel-Safe MD

    Heel-Safe MD

    Part No. 408122

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 0.24" avg.
    Intake Area 20.40 in2
    Weight 2.30 lbs
    ADA Compliant Anti-Slip Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet
  • Heel-Safe MD

    Heel-Safe MD

    Part No. 408022

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 0.24" avg.
    Intake Area 20.40 in2
    Weight 2.30 lbs
    ADA Compliant Anti-Slip Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet
  • Ladder MD

    Ladder MD

    Part No. 408193

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 8"
    Length 6.61"
    Slot Size 6.61" x 0.71" avg.
    Intake Area 28.90 in2
    Weight 4.20 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
