SlabDrain H100-10
SlabDrain H100-10

SlabDrain H100-10

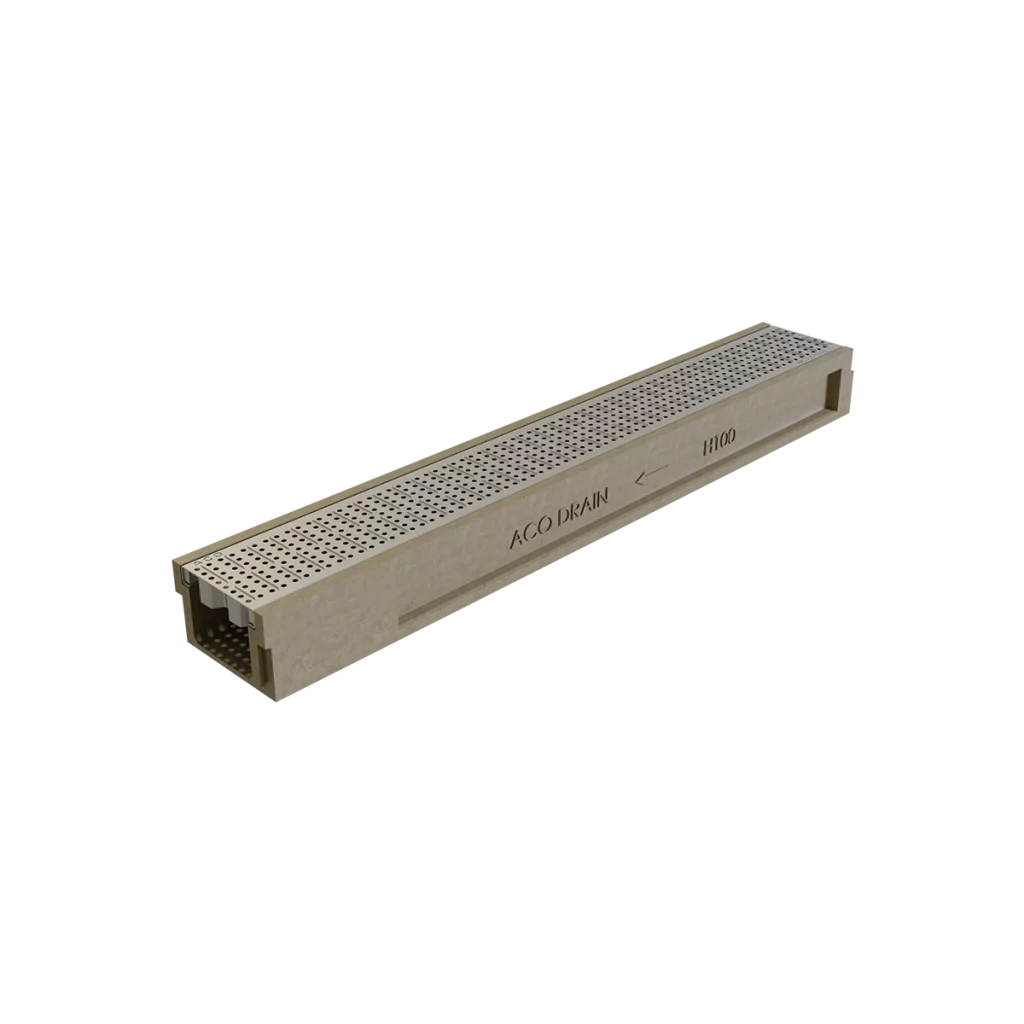

4" Internal Width Shallow Trench Drain
Shallow-invert, constant-depth trench drain system made of polymer concrete with non-metallic edges, ideal for applications with depth restrictions.
  • Pedestrian to industrial-duty loads (EN-1433 Load Class C)
  • Invert depth of 3.35" (85 mm)
  • QuickLok® boltless grate locking
  • Compatible with Brickslot 100 series
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Shallow Depth Drains
    SlabDrain H100-10
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
    • ACO SlabDrain H100 Product Overview PDF
  • Specification Drawings
    Commercial Trench Drains
    Shallow Depth Drains
    SlabDrain H100-10
    • SlabDrain – H100-10 Channel System Spec Sheet PDF
    • SlabDrain – Membrane No-Hub Drain – Stainless Steel Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Shallow Depth Drains
    SlabDrain H100-10
    • H100-10 – Load A – Exposed Asphalt Pavement PDF DWG
    • H100-10 – Load A – Exposed Concrete Pavement PDF DWG
    • H100-10 – Load A – Exposed Paver Pavement PDF DWG
    • H100-10 – Load B – Exposed Asphalt Pavement PDF DWG
    • H100-10 – Load B – Exposed Concrete Pavement PDF DWG
    • H100-10 – Load B – Exposed Paver Pavement PDF DWG
    • H100-10 – Load C – Exposed Asphalt Pavement PDF DWG
    • H100-10 – Load C – Exposed Concrete Pavement PDF DWG
    • H100-10 – Load C – Exposed Paver Pavement PDF DWG

Tools

  • tool icon set_Run Layout Design

    ACO Drain Run Layout Designer

    ACO Scheduler helps create, plan, and profile ACO Drain run layouts compete with an itemized bill of materials.

    Use Tool
  • tool icon set_Grate Hydraulics

    Stormwater Grate Intake Calculator

    Provides Stormwater grate intake performance recommendations.

    Use Tool
  • Stormwater Grate Visualizer

    Stormwater Grate Visualizer

    View ACO Stormwater grates installed in several surface finishes.

    Use Tool

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Type 410D Perforated Galvanized Steel

    Type 410D Perforated Galvanized Steel

    Part No. 12666

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 39.37"
    Slot Size ⌀0.25"
    Intake Area 28.30 in2
    Weight 6.30 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 412D Perforated Galvanized Steel

    Type 412D Perforated Galvanized Steel

    Part No. 12667

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size ⌀0.25"
    Intake Area 14.10 in2
    Weight 3.20 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 420D Slotted Galvanized Steel

    Type 420D Slotted Galvanized Steel

    Part No. 12610

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 39.37"
    Slot Size 0.38" x 1.46" avg.
    Intake Area 35.20 in2
    Weight 5.90 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 421D Slotted Galvanized Steel

    Type 421D Slotted Galvanized Steel

    Part No. 12611

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size 0.38" x 1.46" avg.
    Intake Area 17.60 in2
    Weight 3.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 450D Slotted Stainless Steel

    Type 450D Slotted Stainless Steel

    Part No. 12640

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 39.37"
    Slot Size 0.38" x 1.46" avg.
    Intake Area 35.20 in2
    Weight 5.90 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 451D Perforated Stainless Steel

    Type 451D Perforated Stainless Steel

    Part No. 12664

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 39.37"
    Slot Size ⌀0.25"
    Intake Area 28.30 in2
    Weight 6.30 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 452D Slotted Stainless Steel

    Type 452D Slotted Stainless Steel

    Part No. 12641

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size 0.38" x 1.46" avg.
    Intake Area 17.60 in2
    Weight 3.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 453D Perforated Stainless Steel

    Type 453D Perforated Stainless Steel

    Part No. 12665

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size ⌀0.25"
    Intake Area 14.10 in2
    Weight 3.20 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 494D Longitudinal Plastic Black

    Type 494D Longitudinal Plastic Black

    Part No. 99575

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size 1.76" x 0.34" avg.
    Intake Area 27.40 in2
    Weight 1.80 lbs
    ADA Compliant Bicycle Safe Anti-Slip LEED Certified Non-Metallic
    Calculate water intake Spec sheet
  • Type 495D Longitudinal Plastic Gray

    Type 495D Longitudinal Plastic Gray

    Part No. 99576

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size 1.76" x 0.34" avg.
    Intake Area 27.40 in2
    Weight 1.80 lbs
    ADA Compliant Bicycle Safe Anti-Slip LEED Certified Non-Metallic
    Calculate water intake Spec sheet
  • Type 496D Longitudinal Plastic Tan

    Type 496D Longitudinal Plastic Tan

    Part No. 99577

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 4"
    Length 19.69"
    Slot Size 1.76" x 0.34" avg.
    Intake Area 27.40 in2
    Weight 1.80 lbs
    ADA Compliant Bicycle Safe Anti-Slip LEED Certified Non-Metallic
    Calculate water intake Spec sheet
  • Type 437D Longitudinal Galvanized Steel

    Type 437D Longitudinal Galvanized Steel

    Part No. 132550

    EN1433 Load Class B28,101 lbs, 387–580 PSI
    Width 4"
    Length 19.69"
    Slot Size 1.61" x 0.24" avg.
    Intake Area 33.00 in2
    Weight 4.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Anti-Slip LEED Certified
    Calculate water intake Spec sheet
