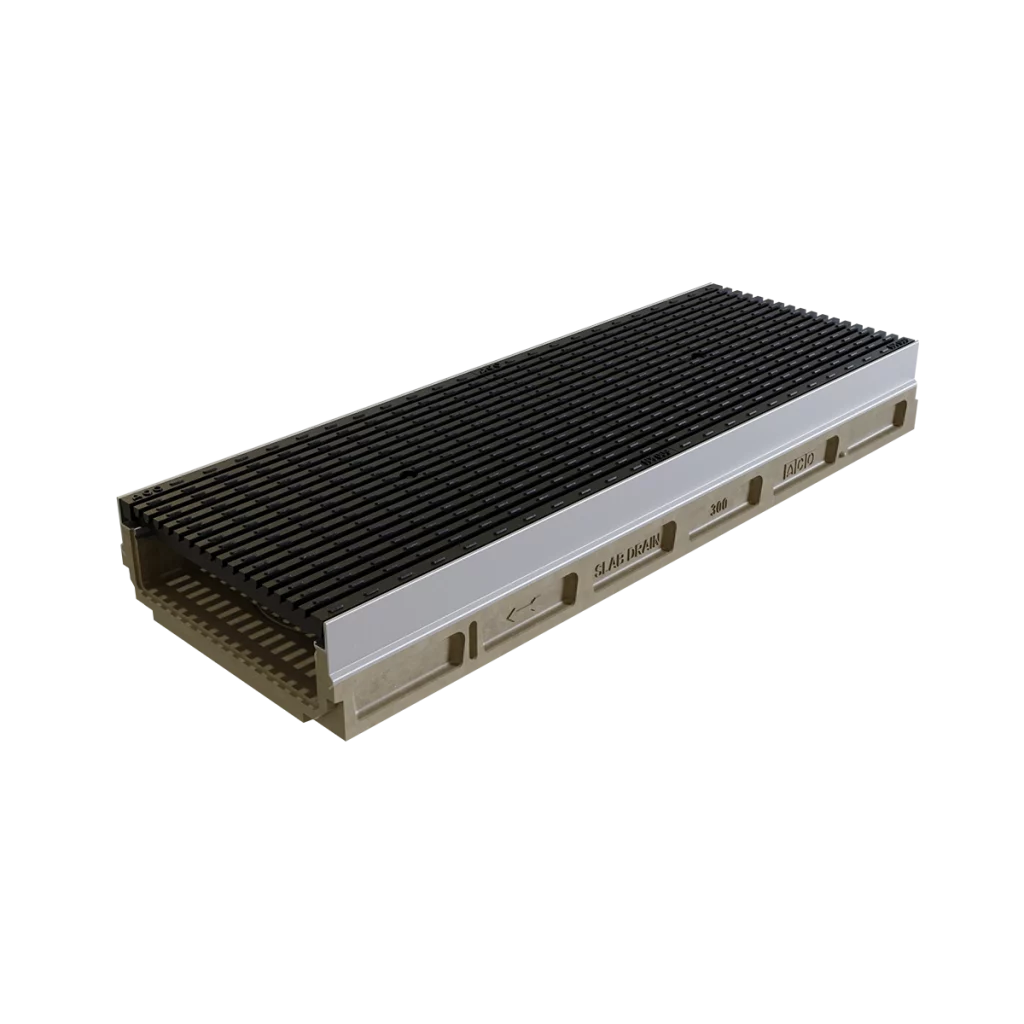

SlabDrain H300K-13/H300KS13

SlabDrain H300K-13/H300KS13

12" Internal Width Shallow Trench Drain
Shallow-invert, constant-depth trench drain system made of polymer concrete, available with galvanized (H300K-13) or stainless steel (H100KS-13) edge rails. Ideal for applications with depth restrictions.
  • Pedestrian to heavy industrial-duty loads (EN-1433 Load Class E)
  • Invert depth of 3.94" (100 mm)
  • DrainLok or QuickLok® boltless grate locking options
  • Compatible with Brickslot 100 series
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Shallow Depth Drains
    SlabDrain H300K-13/H300KS13
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
    • ACO SlabDrain HK Product Overview PDF
  • Specification Drawings
    Commercial Trench Drains
    Shallow Depth Drains
    SlabDrain H300K-13/H300KS13
    • SlabDrain – Membrane No-Hub Drain – Stainless Steel Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Shallow Depth Drains
    SlabDrain H300K-13/H300KS13
    • H300K-13 – Load A – Exposed Asphalt Pavement PDF DWG
    • H300K-13 – Load A – Exposed Concrete Pavement PDF DWG
    • H300K-13 – Load A – Exposed Paver Pavement PDF DWG
    • H300K-13 – Load B – Exposed Asphalt Pavement PDF DWG
    • H300K-13 – Load B – Exposed Concrete Pavement PDF DWG
    • H300K-13 – Load B – Exposed Paver Pavement PDF DWG
    • H300K-13 – Load C – Exposed Asphalt Pavement PDF DWG
    • H300K-13 – Load C – Exposed Concrete Pavement PDF DWG
    • H300K-13 – Load C – Exposed Paver Pavement PDF DWG
    • H300K-13 – Load D – Exposed Asphalt Pavement PDF DWG

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Type 847D Longitudinal Stainless Steel

    Type 847D Longitudinal Stainless Steel

    Part No. 142223

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 12"
    Length 39.37"
    Slot Size 0.81" x 0.24" avg.
    Intake Area 263.20 in2
    Weight 29.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

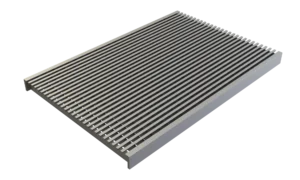

  • Type 848D Longitudinal Stainless Steel

    Type 848D Longitudinal Stainless Steel

    Part No. 142224

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.81" x 0.24" avg.
    Intake Area 131.60 in2
    Weight 14.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

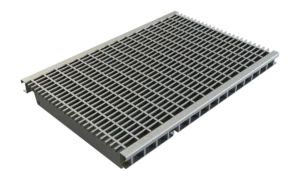

  • Type 805D Mesh Galvanized Steel

    Type 805D Mesh Galvanized Steel

    Part No. 133675

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.63" x 0.87" avg.
    Intake Area 163.70 in2
    Weight 26.20 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 811Q Perforated Galvanized Steel

    Type 811Q Perforated Galvanized Steel

    Part No. 98967

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 39.37"
    Slot Size ⌀0.25"
    Intake Area 63.80 in2
    Weight 30.90 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 813Q Perforated Galvanized Steel

    Type 813Q Perforated Galvanized Steel

    Part No. 98966

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size ⌀0.25"
    Intake Area 31.90 in2
    Weight 15.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 830D Mesh Stainless Steel

    Type 830D Mesh Stainless Steel

    Part No. 133678

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.63" x 0.87" avg.
    Intake Area 163.70 in2
    Weight 29.50 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 860D Slotted Ductile Iron

    Type 860D Slotted Ductile Iron

    Part No. 13870

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.47" x 2.57" avg.
    Intake Area 88.10 in2
    Weight 38.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 865Q Perforated Stainless Steel

    Type 865Q Perforated Stainless Steel

    Part No. 98968

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 39.37"
    Slot Size ⌀0.25"
    Intake Area 63.80 in2
    Weight 30.90 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 866Q Perforated Stainless Steel

    Type 866Q Perforated Stainless Steel

    Part No. 98969

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size ⌀0.25"
    Intake Area 31.90 in2
    Weight 15.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 876D Longitudinal Ductile Iron

    Type 876D Longitudinal Ductile Iron

    Part No. 99588

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 1.97" x 0.24" avg.
    Intake Area 64.30 in2
    Weight 35.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 880D Wave Ductile Iron

    Type 880D Wave Ductile Iron

    Part No. 99581

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.27" x 0.90" avg.
    Intake Area 88.50 in2
    Weight 37.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 861Q Slotted Ductile Iron

    Type 861Q Slotted Ductile Iron

    Part No. 10431

    EN1433 Load Class E134,885 lbs, 1,856–2,785 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.39" x 5.71" avg.
    Intake Area 97.00 in2
    Weight 58.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
