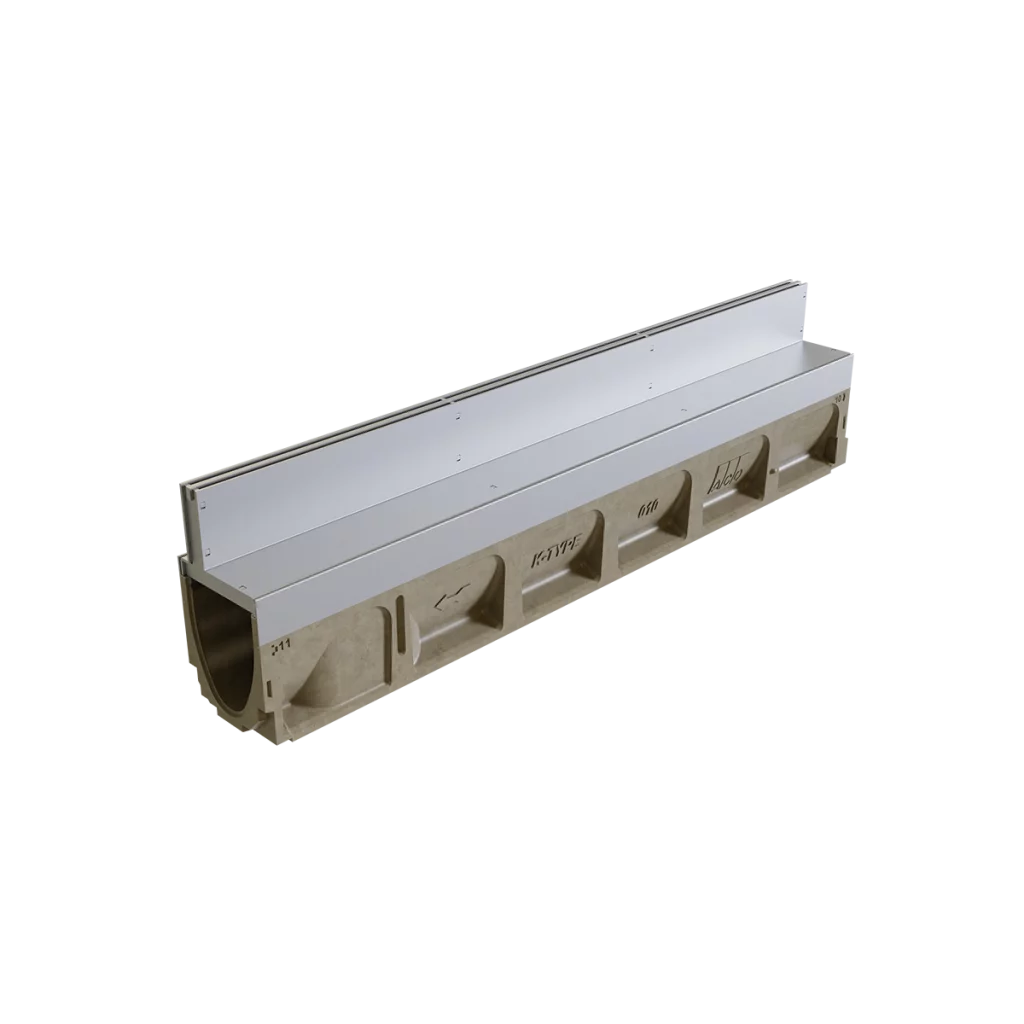

Heel-Resistant Brickslot 100
Heel-Resistant Brickslot 100

Brickslot 100 Heel-Resistant

Heel-Resistant Slotted Drain Cover​ for Pavers
Designed for use with 4” internal width KlassikDrain and SlabDrain trench drain. Slots blend seamlessly with pavers in pedestrian areas requiring low-profile drainage.
  • Pedestrian to industrial-duty loads (EN-1433 Load Class C)
  • Two adjacent 0.31" (8 mm) slots with 0.25" (6.35 mm) bar spacing
  • Flared slot opening: 0.31" (8 mm) to 0.87" (22 mm) for increased drainage capacity
  • Supports pavers up to 2.48" (63 mm) deep; ideal for 3.15" (80 mm) pavers
  • Available in galvanized or 11-gauge stainless steel
  • Offered in half-meter and 1-meter sections with access units for maintenance
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Slotted Paver Drains
    Brickslot 100 Heel-Resistant
    • ACO Brickslot Product Line Overview PDF
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
  • Specification Drawings
    Commercial Trench Drains
    Slotted Paver Drains
    Brickslot 100 Heel-Resistant
    • Brickslot – Type 470-471 Galvanized Heel-Resistant Brickslot 100 Spec Sheet PDF
    • Brickslot – Type 472-473 Stainless Steel Heel-Resistant Brickslot 100 Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Slotted Paver Drains
    Brickslot 100 Heel-Resistant
    • BS100HR H100K-8 – Load A – Exposed Concrete Pavement PDF DWG
    • BS100HR H100K-8 – Load A – Exposed Paver Pavement PDF DWG
    • BS100HR H100K-8 – Load A – Haunched Paver Pavement PDF DWG
    • BS100HR H100K-8 – Load B – Exposed Concrete Pavement PDF DWG
    • BS100HR H100K-8 – Load B – Exposed Paver Pavement PDF DWG
    • BS100HR H100K-8 – Load B – Haunched Paver Pavement PDF DWG
    • BS100HR H100K-8 – Load C – Exposed Concrete Pavement PDF DWG
    • BS100HR H100K-8 – Load C – Exposed Paver Pavement PDF DWG
    • BS100HR H100K-8 – Load C – Haunched Paver Pavement PDF DWG
    • BS100HR H100SK-8 – Load A – Exposed Concrete Pavement PDF DWG

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

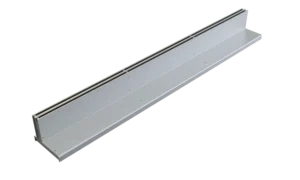

  • Brickslot Heel-Resistant 100 Type 470 Galvanized Steel

    Brickslot Heel-Resistant 100 Type 470 Galvanized Steel

    Part No. 138050

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 39.37"
    Slot Size 39.40" x 0.30" avg.
    Intake Area 24.80 in2
    Weight 18.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant LEED Certified
    Calculate water intake Spec sheet
  • Brickslot Heel-Resistant 100 Type 471 Galvanized Steel

    Brickslot Heel-Resistant 100 Type 471 Galvanized Steel

    Part No. 138051

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 39.40" x 0.30" avg.
    Intake Area 24.80 in2
    Weight 9.20 lbs
    ADA Compliant Bicycle Safe Heel Resistant LEED Certified
    Calculate water intake Spec sheet

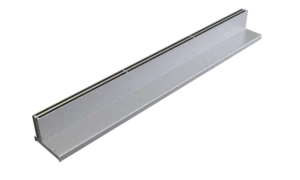

  • Brickslot Heel-Resistant 100 Type 472 Stainless Steel

    Brickslot Heel-Resistant 100 Type 472 Stainless Steel

    Part No. 138055

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 39.37"
    Slot Size 39.40" x 0.30" avg.
    Intake Area 24.80 in2
    Weight 18.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant LEED Certified
    Calculate water intake Spec sheet

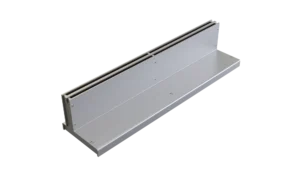

  • Brickslot Heel-Resistant 100 Type 473 Stainless Steel

    Brickslot Heel-Resistant 100 Type 473 Stainless Steel

    Part No. 138056

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 39.40" x 0.30" avg.
    Intake Area 24.80 in2
    Weight 9.20 lbs
    ADA Compliant Bicycle Safe Heel Resistant LEED Certified
    Calculate water intake Spec sheet
  • Brickslot Heel-Resistant 100 Type 483 Galvanized Steel Access Unit

    Brickslot Heel-Resistant 100 Type 483 Galvanized Steel Access Unit

    Part No. 138052

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 19.70" x 0.30" avg.
    Intake Area 12.40 in2
    Weight 11.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant LEED Certified
    Calculate water intake Spec sheet

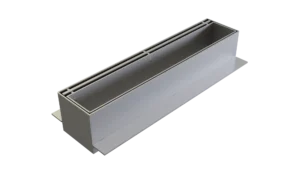

  • Brickslot Heel-Resistant 100 Type 485 Stainless Steel Access Unit

    Brickslot Heel-Resistant 100 Type 485 Stainless Steel Access Unit

    Part No. 138057

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 19.70" x 0.30" avg.
    Intake Area 12.40 in2
    Weight 11.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant LEED Certified
    Calculate water intake Spec sheet

Case Studies

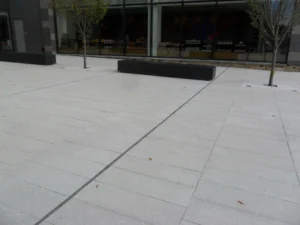

McCormick & Company

McCormick & Company

Hunt Valley, Maryland
View Case Study
Beard Elementary School

Beard Elementary School

Chicago, Illinois
Under the proposal, a one-story annex would be constructed on Beard’s parking lot, creating space for an additional 200 pre-kindergartners at the school, whose current enrollment consists of about 175 children in pre-kindergarten and 70 diverse learners in kindergarten through third grade. Problem: To provide a safer, cleaner, family friendly… Read More
View Case Study
Banner Hill Apartments

Banner Hill Apartments

Baltimore, Maryland
ACO Heel-Resistant Brickslot 100 at Banner Hill Apartments provides low profile, heel safe drainage across residential walks and entries, blending with hardscape, capturing runoff efficiently, and simplifying maintenance for property staff.
View Case Study
University of Chicago Main Quadrangle

University of Chicago Main Quadrangle

Chicago, Illinois
ACO Heel-Resistant Brickslot 100 integrated with KlassikDrain KS100 discreetly intercepts runoff along the University of Chicago Main Quadrangle paths. The narrow slot preserves the historic setting and reduces trip and slip risk while delivering the capacity the campus required.
View Case Study
Avalon Harbor East

Avalon Harbor East

Baltimore, Maryland
This high trafficked, common walking area surrounded by restaurants, hotels, commercial offices, shopping, and the Johns Hopkins Carey Business School is right on the Patapsco River. Problem: A low profile drainage solution was required create a barrier on the sidewalk between th walking path and a planting strip. Read More
View Case Study

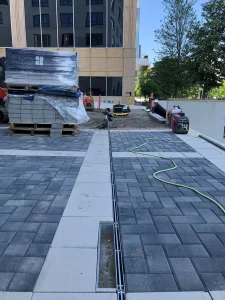

ELEVEN on the River

ELEVEN on the River

Minneapolis, Minnesota
ACO Brickslot 100 serves the tower’s riverfront terrace, preserving premium views and finishes. The nearly invisible slot manages rainfall and washdown without visual clutter, aligning with the project’s high end design.
View Case Study
Fitts-Woodlard Hall, North Carolina State University

Fitts-Woodlard Hall, North Carolina State University

Raleigh, North Carolina
ACO Heel-Resistant Brickslot trench drain was selected during new construction to keep entrances and walkways safe through rainy seasons. Its discreet slot preserves the building’s clean architecture, replacing bulkier drains that would have compromised the finished look.
View Case Study

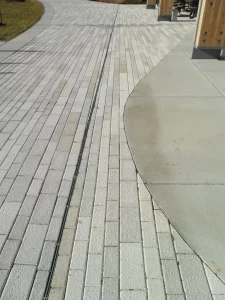

Anne Arundel Community College - Health & Life Sciences Building

Anne Arundel Community College – Health & Life Sciences Building

Arnold, Maryland
ACO Heel-Resistant Brickslot was installed on approach walks at the Health and Life Sciences Building at Anne Arundel Community College to protect the lobby and first floor from wind driven rain, with installation guidance from ACO technical services and the local sales team.
View Case Study
