Oleopator P NS10/1080 OWS
Oleopator P NS10/1080 OWS

Oleopator P NS10/1080 OWS

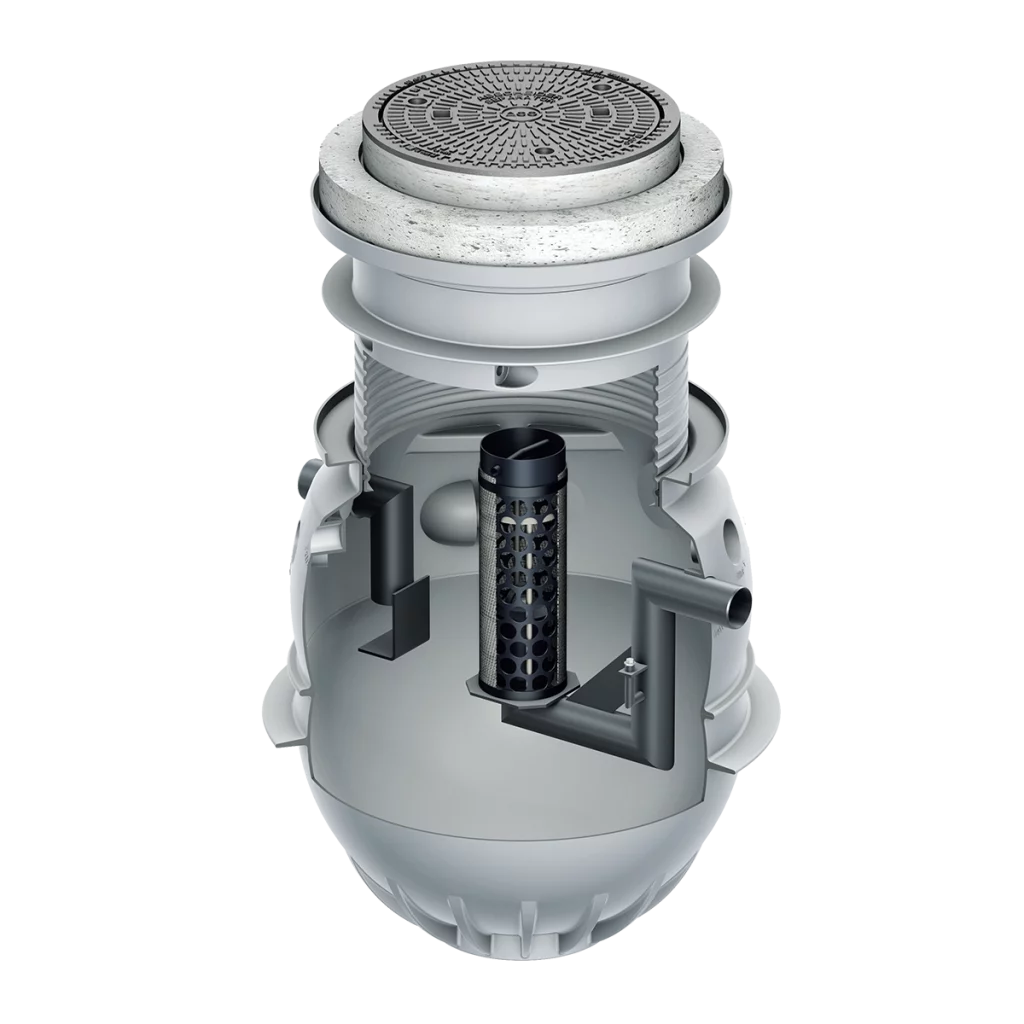

Polyethylene Body Coalescing Oil-Water Separator
Compact separator for oil and suspended solids removal. Designed for flow rates up to 160 gpm with space-saving vertical installation.
  • Solid traps volume: 286 gal (1,080 L), oil storage volume: 69 gal (260 L)
  • Total capacity: 427 gal (1,615 L)
  • MDPE separator body and shaft
  • Coalescing unit for oil/water separation, effluent quality of 5 ppm
  • Integrated sludge trap
  • 24″ (610 mm) cast iron access cover; pedestrian & heavy duty options
  • Optional alarms for high liquid, oil, or solids levels
Find a Rep

Technical Documents

  • Product Literature
    Oil-Water Separation & Spill Control
    Stormwater Treatment
    Oleopator P NS10/1080 OWS
    • ACO Environment Overview PDF
    • ACO Environment Spill Control Oil-Water Separator Brochure PDF
    • ACO Oleopator Maintenance Guide PDF
    • ACO Oleopator P Installation, Operation & Maintenance Manual PDF
    • ACO Oleopator P Series Overview PDF
  • Specification Drawings
    Oil-Water Separation & Spill Control
    Stormwater Treatment
    Oleopator P NS10/1080 OWS
    • Sludge Trap – 615 Gallons Spec Sheet PDF
    • Oleopator – Inspections & Sampling Chamber Spec Sheet PDF
    • Oleopator NS20 – Light Oil Separator Spec Sheet PDF
    • Oleopator NS60 – Light Oil Separator Spec Sheet PDF
    • Oleopator P NS10_1080 – MDPE Vertical Body Oil-Water Separator Spec Sheet PDF
