TraffikDrain 100

4” Internal Width Heavy-Duty Drain for Highways

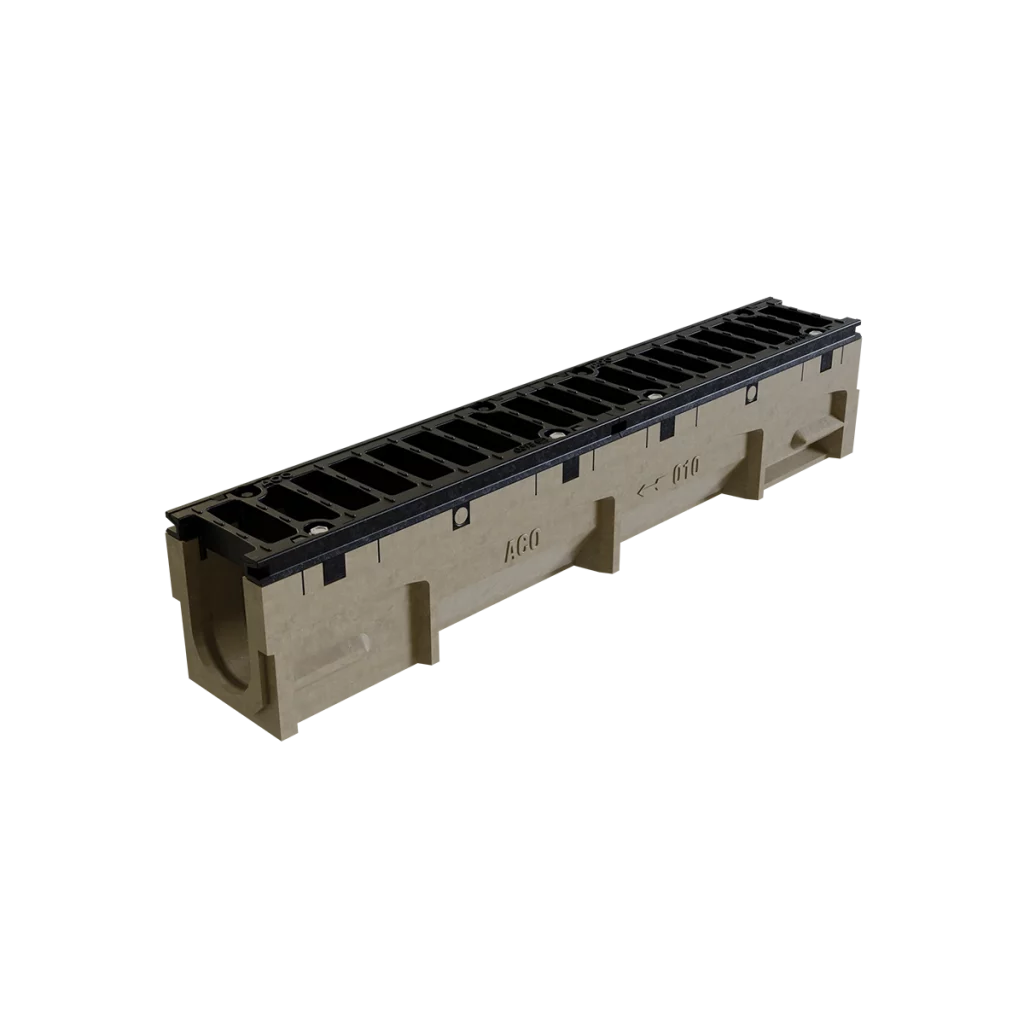

Modular polymer concrete trench drain with high-capacity grates and integrated ductile iron edge rails. Designed for efficient stormwater removal in heavy-duty traffic areas.

Pedestrian to industrial-duty loads (EN-1433 Load Class E)
0.6% sloped channels (constant-depth channels available)
Integrally cast-in ductile iron edge rail for maximum strength
Bolted and non-removable ductile iron grates available
Anti-shunt lugs prevent longitudinal movement under dynamic wheel loads
Bottom knockout features allow for vertical outlet connections

Find a Rep

Technical Documents

Standard Installation Details
Traffic-Rated Drains

High-Intake Roadside Drains

TraffikDrain 100

TD100 – Load C – Exposed Asphalt Pavement PDF DWG

TD100 – Load C – Haunched Asphalt Pavement PDF DWG

TD100 – Load E – Exposed Asphalt Pavement PDF DWG

TD100 – Load E – Exposed Concrete Pavement PDF DWG

Tools

Stormwater Grate Visualizer

View ACO Stormwater grates installed in several surface finishes.

Use Tool

Case Studies

I-75 Highway

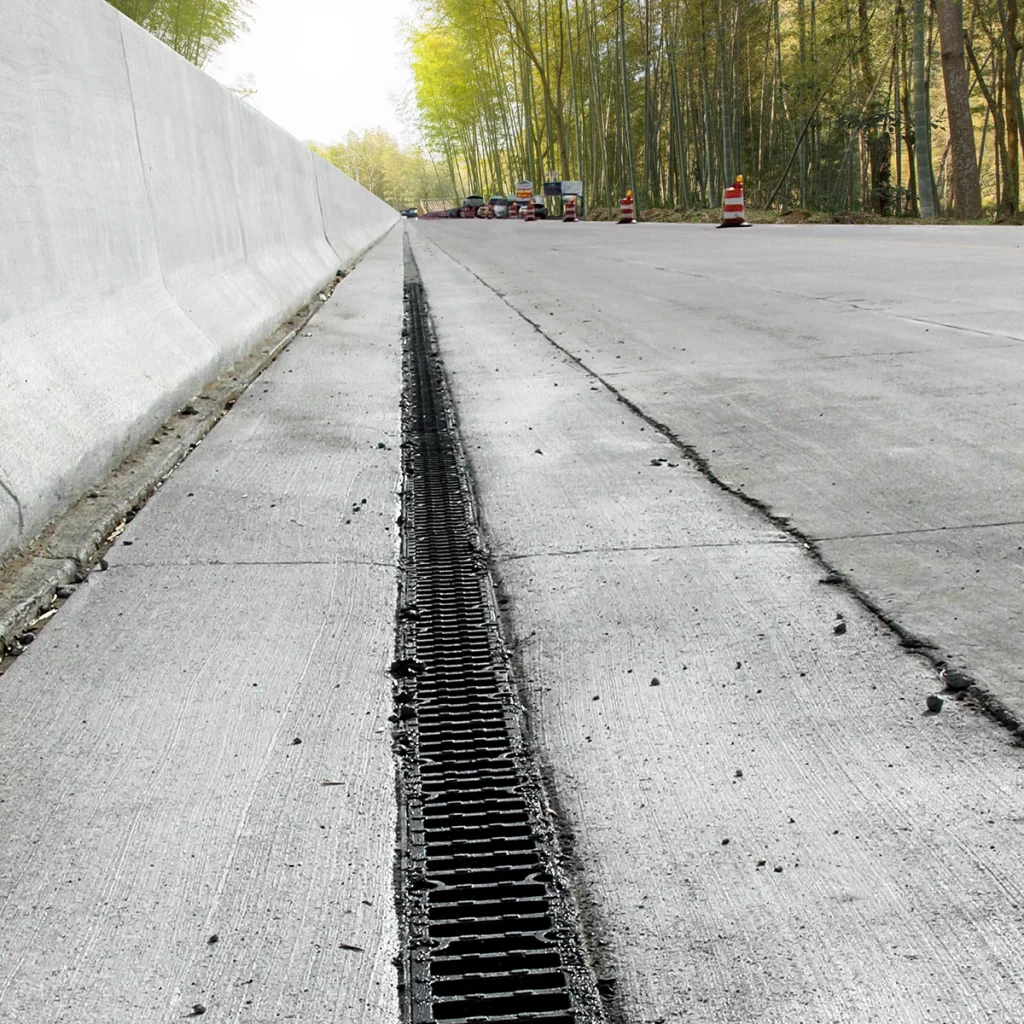

ACO TraffikDrain 100 was installed along an 8-mile stretch of I-75 near Flint, MI to eliminate ponding on a flat roadway. Continuous trench runs with high-intake ductile iron grates and cast-in rails deliver rapid water evacuation and heavy-duty performance, improving safety while reducing grading costs.

View Case Study

State Route 23

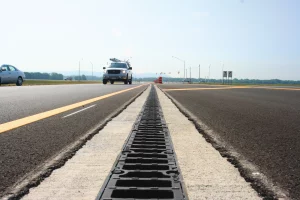

ACO TraffikDrain 100 was installed in the center median of the Route 23 bypass in Chillicothe, OH to prevent ponding on a flat roadway. High-intake grates and large flume outlets deliver fast drainage, while ductile iron grates and cast-in rails withstand heavy traffic for safer operations.

View Case Study
