MonoBloc ADA 100
4″ Internal Width Monolithic Trench Drain

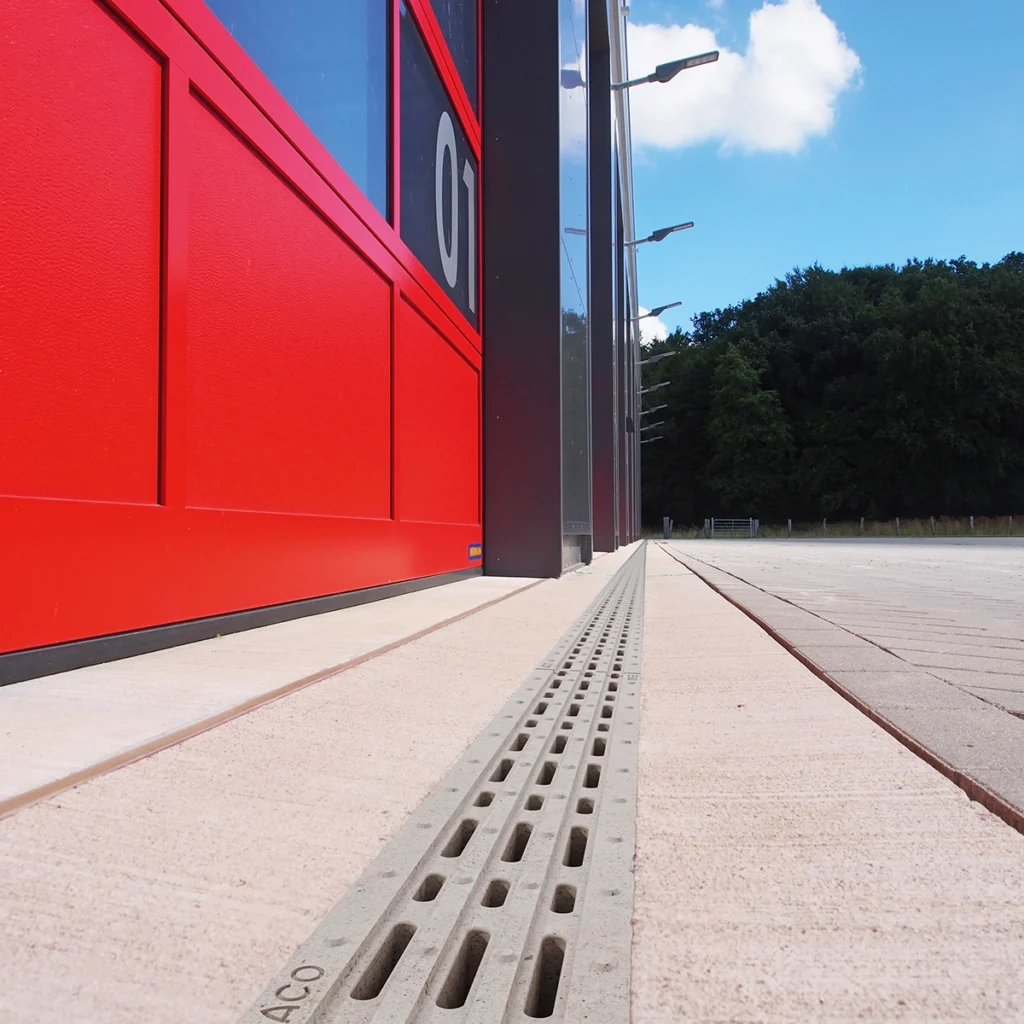

Modular polymer concrete trench drain system comprised of singlepiece channels. Designed for efficient stormwater removal in heavy-duty traffic and commercial/residential areas, especially in applications where the drainage must be positioned within the flow of traffic.
- Manufactured in USA
- ADA-compliant surface slot pattern
- Pedestrian to industrial-duty loads (EN 1433 Load Class E)
- 0.5% sloped channels (constant-depth channels available)
- Solid build prevents loosening from vibrations
- Grated access channels provided for maintenance
- Grated catch basin access channels available
MonoBloc ADA 100 Features

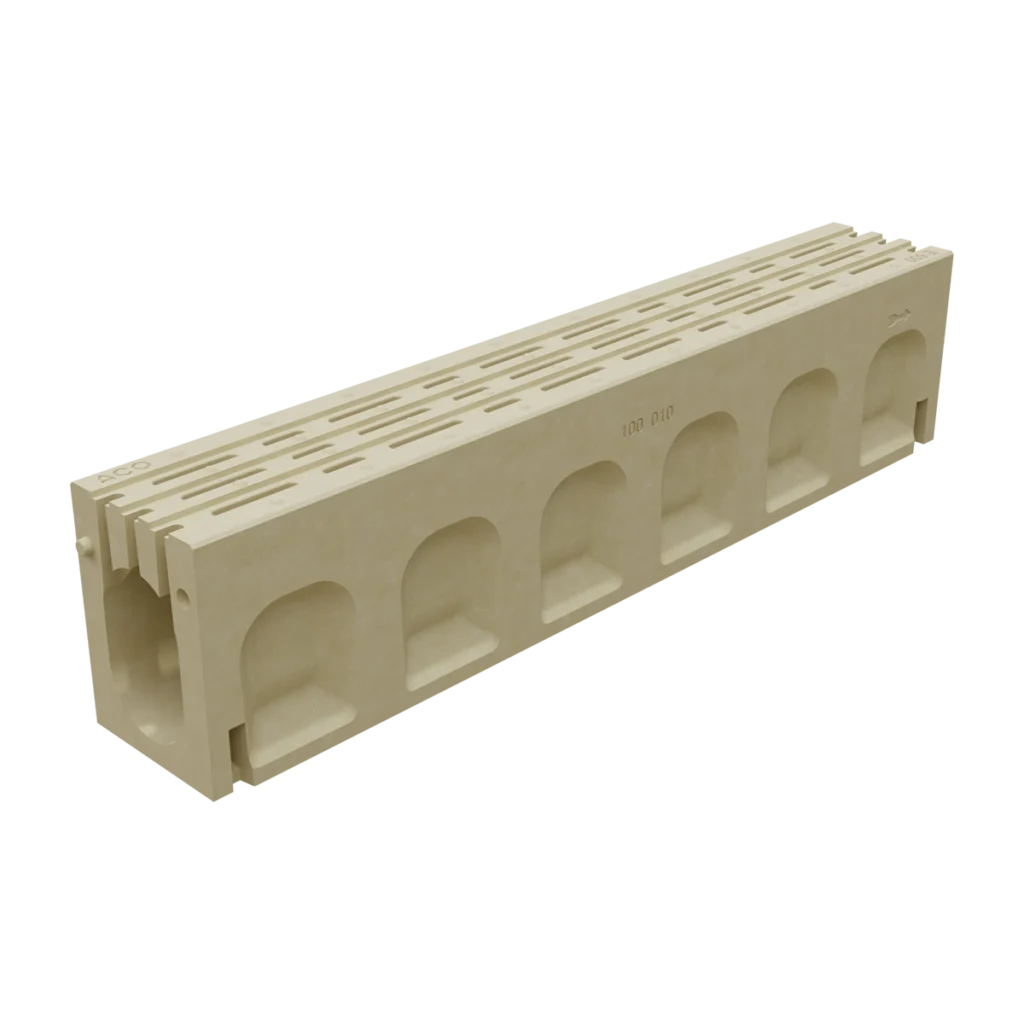

Monolithic Strength
- Single-piece build along with grated access channels
- High strength polymer concrete
- Exceeds AASHTO HS-25 requirements
- ADA-compliant slots
- Abrasion-resistant surface
Ease of Installation
- Compatible with ACO Installation Devices
- Directional arrows on each channel
- Interconnecting end profiles
- Profiled side walls for extra support in concrete surround
Applications

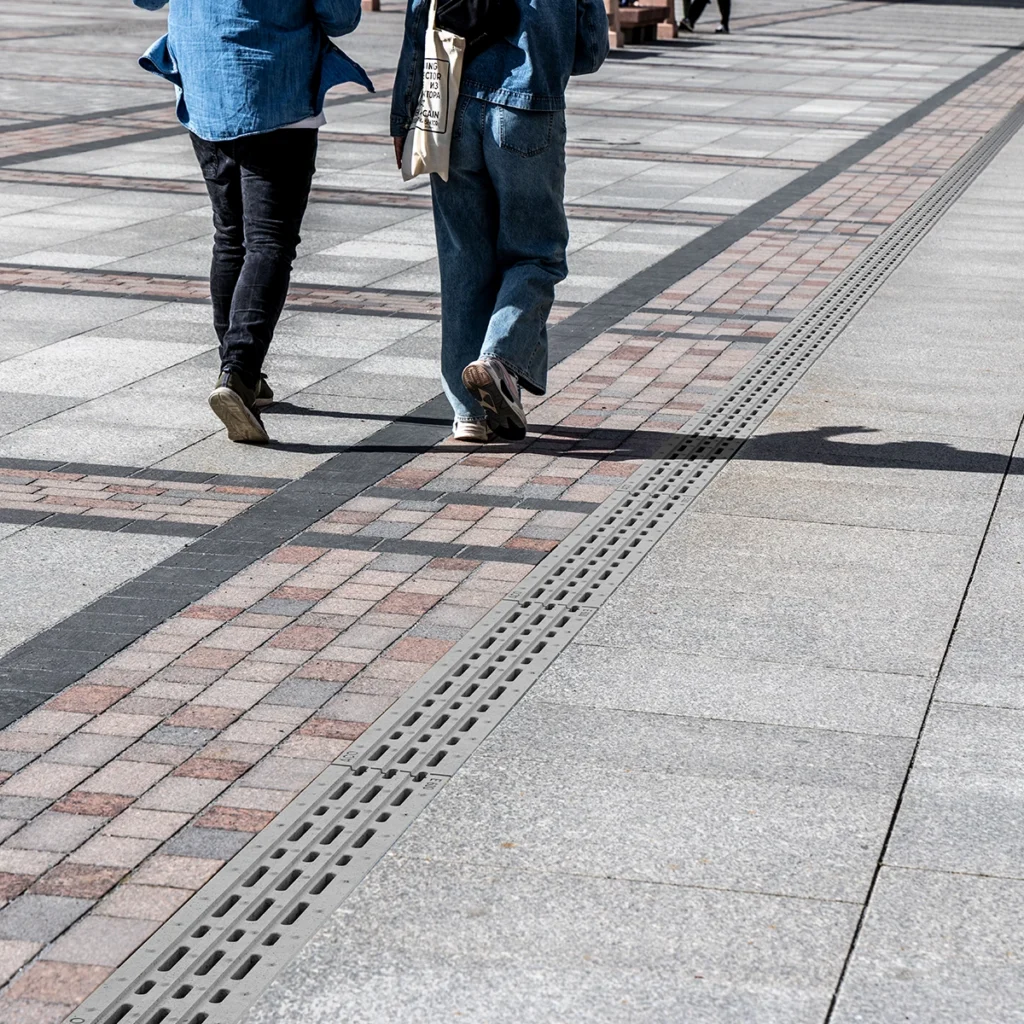

MonoBloc ADA 100 trench drain is ideal for demanding industrial and transportation applications with high heavy-duty vehicle loading and traffic and expected regular pedestrian traffic:
- Truck stops and gas stations
- Parking lots and garages
- Shopping districts
- Light industrial areas
- Commercial areas
- Internal heavy-duty applications
Specifications
- Channel Length: 39.37″
- Channel Width: 6.30″
- Channel Depth: 6.89″–14.76″
- Channel Invert Depth: 5.91″–13.78″
- Channel Weight: 81.4–116.5 lbs
- Channel Slot Sizes: 0.47″ x 3.15″, 0.47″ x 1.65″
- Channel Clear Opening Width: 3.94″
- Channel Wall Thickness: 0.39″ minimum
- EN 1433 Load Class: E600 (134,885 lbs, 2,785 psi)
- Channel Material: Polymer Concrete
- Access Grate Material: Ductile Iron
