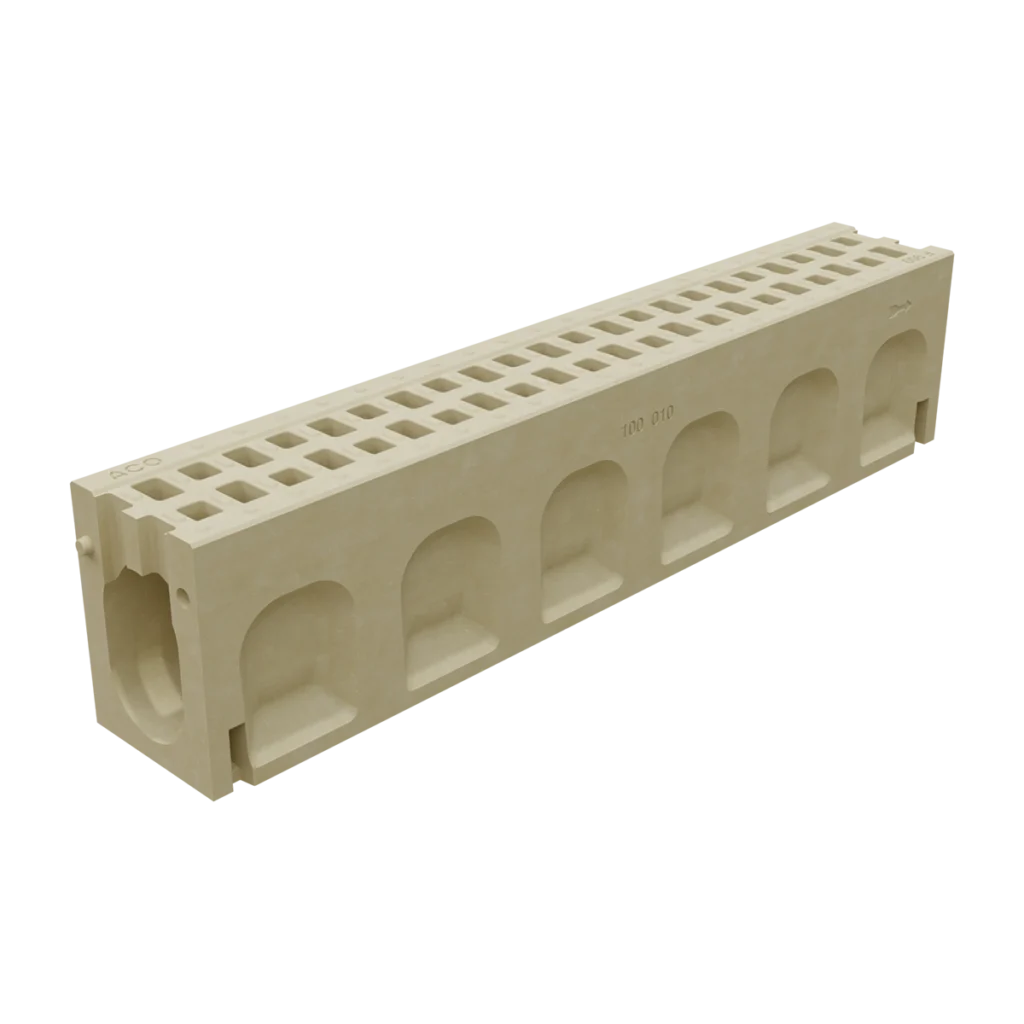

MonoBloc HD 100
4″ Internal Width Monolithic Trench Drain
Modular polymer concrete trench drain system comprised of singlepiece channels. Designed for efficient stormwater removal in heavyduty traffic areas, especially in applications where the drainage must be positioned within the flow of traffic.
- Manufactured in USA
- Pedestrian to industrial-duty loads (EN 1433 Load Class F)
- 0.5% sloped channels (constant-depth channels available)
- Solid build prevents loosening from vibrations
- Grated access channels provided for maintenance
- Grated catch basin access channels available
MonoBloc HD 100 Features
Monolithic Strength
- Single-piece build along with grated access channels
- High strength polymer concrete
- Exceeds AASHTO HS-25 requirements
- High-intake slots (40% open area)
- Abrasion-resistant surface
Ease of Installation
- Compatible with ACO Installation Devices
- Directional arrows on each channel
- Interconnecting end profiles

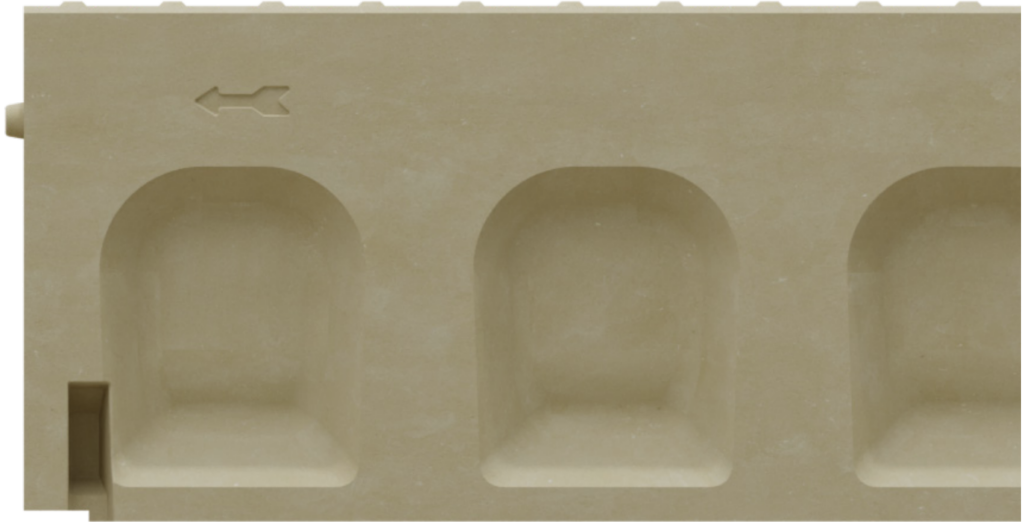

- Profiled side walls for extra support in concrete surround
Applications
MonoBloc HD 100 trench drain is ideal for demanding industrial and transportation applications with high heavy-duty vehicle loading and traffic:
- Highways
- Interstates
- Race tracks
- Truck stops
- Industrial parks
- Container ports
- Distribution depots
- Toll booths
Specifications
- Channel Length: 39.37″
- Channel Width: 6.30″
- Channel Depth: 6.89″–14.76″
- Channel Invert Depth: 5.91″–13.78″
- Channel Weight: 77.4–115.5 lbs
- Channel Slot Sizes: 0.98″ x 1.18″, 0.98″ x 1.57″
- Channel Clear Opening Width: 3.94″
- Channel Wall Thickness: 0.39″ minimum
- EN 1433 Load Class: F900 (202,328 lbs, 4,177 psi)
- Channel Material: Polymer Concrete
- Access Grate Material: Ductile Iron with (4) Stainless Steel M10 x 30 Bolts
-

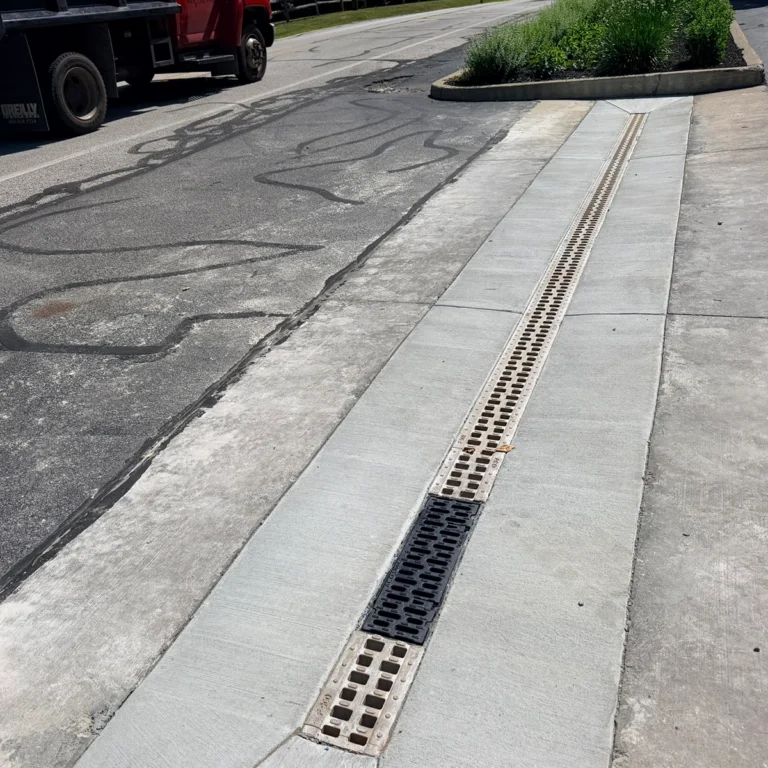

Divine Word Catholic Church
