QMax 225
QMax 225
QMax 225

QMax 225

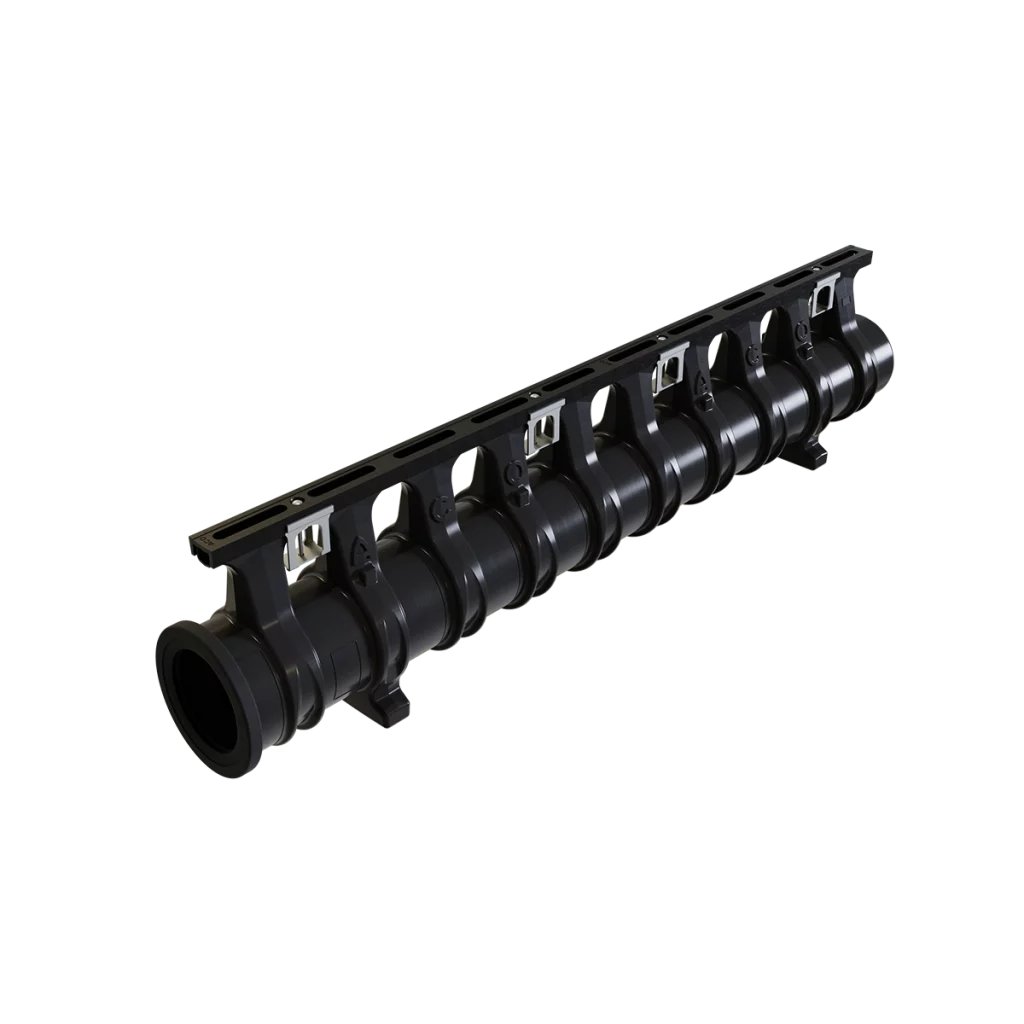

8.6” Internal Width High-Capacity Slotted Trench Drain​
Heavy-duty recycled MDPE channels with a selection of pre-installed slotted top rails. Designed to manage stormwater in large catchment areas.
  • Pedestrian to heavy industrial-duty loads (EN-1433 Load Class F)
  • Loading standard includes airport airside 200K lb proof load
  • Lightweight material for easy handling and quick installations
  • Patented pavement beam feature provides extra support
  • Four top rail options for flexibility
  • Water-tight neoprene twin-lipped seals
  • Molded cut lines every 8" for customization
  • Male/female interlock for secure installation
Find a Rep

Technical Documents

  • Product Literature
    Traffic-Rated Drains
    Slotted High-Capacity Drains
    QMax 225
    • ACO Qmax 225 Product Overview PDF
  • Specification Drawings
    Traffic-Rated Drains
    Slotted High-Capacity Drains
    QMax 225
    • QMax – 225 Channel with Q-Flow Ductile Iron Rail Spec Sheet PDF
    • QMax – 225 Channel with Q-Flow Galvanized Steel Rail Spec Sheet PDF
    • QMax – 225 Channel with Q-Guard Ductile Iron Rail Spec Sheet PDF
    • QMax – 225 Channel with Q-Guard Galvanized Rail Spec Sheet PDF
    • QMax – Catch Basin Deep with Black Coated Steel Rail Spec Sheet PDF
    • QMax – Catch Basin Deep with Galvanized Steel Rail Spec Sheet PDF
    • QMax – Catch Basin Short Galvanized Steel Rail Spec Sheet PDF
    • QMax – Catch Basin Short with Black Coated Steel Rail Spec Sheet PDF

Tools

  • Stormwater Grate Visualizer

    Stormwater Grate Visualizer

    View ACO Stormwater grates installed in several surface finishes.

    Use Tool

Case Studies

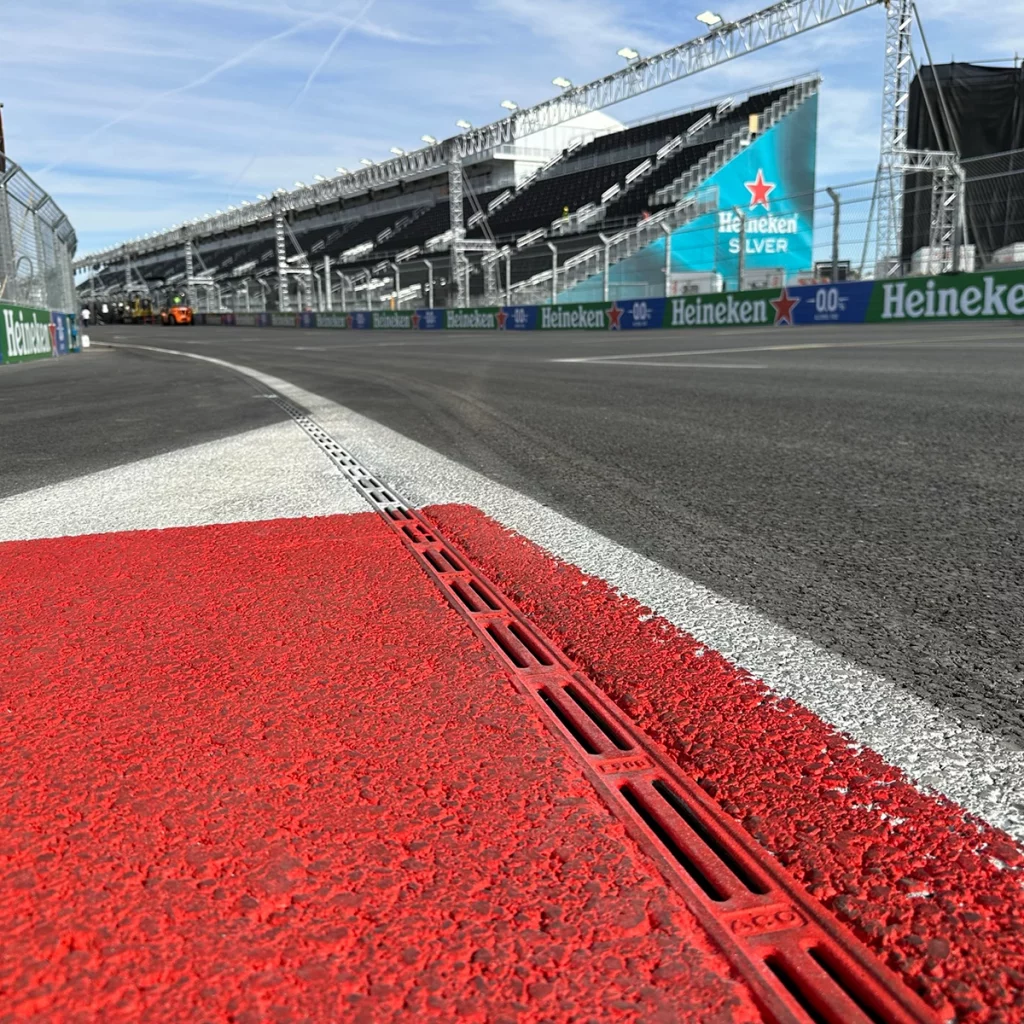

Las Vegas Grand Prix

Las Vegas Grand Prix

Las Vegas, Nevada
The project stands out as a testament to the flexibility and innovations by ACO. Custom channels, grates, and junction boxes were design and manufactured specifically for this project. Problem: The PowerDrain was used as a cable chase primarily with a secondary use for nuisance water. The PowerDrain runs span across… Read More
View Case Study
