Public Utilities
Public utilities such as wastewater treatment plants, power plants, reservoires, and water utilities need reliable drainage systems compliant with goverment regulations. ACO products offer effective and functional solutions for containment, filtration, and drainage appropriate for infrastructural applications. As a "Made in the USA" brand, ACO drainage products are an ideal choice for engineers working on civic projects.
Products
Stormwater Management
KlassikDrain
General Purpose DrainsSloped, polymer concrete trench drain systems with steel edge rails. EN1433 A–E grate loading for commercial and industrial applications.
PowerDrain®
Heavy-Duty DrainsIndustrial-grade, sloped, polymer concrete trench drain systems with iron edge rail options. EN1433 A–F and additional 200k proof grate loading applications.
SlabDrain
Shallow Depth DrainsConstant depth, shallow invert, polymer concrete trench drain for sites with limited installation space. Variety of edge rails suiting many ACO Drain® grates.
FlowDrain
Fiberglass DrainsSloped, lightweight fiberglass trench drain system for long, uninterrupted trench runs. EN1433 A–E grate loading for commercial and industrial applications.

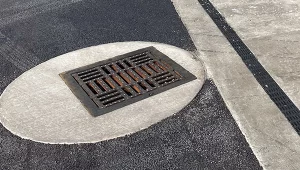

Sumps
Multi-System Catch BasinsSimple polymer concrete water collection unit with secure ductile iron grating, to be integrated into a trench drain system or used as a stand-alone drain.
StormBrixx
Modular Water Tanks
MonoBloc
Monolithic DrainsGrate-free polymer concrete channels built for high and heavy traffic. Monolithic build leads to increased security, stability, and EN1433 A–E load support.
TraffikDrain
High-Intake Roadside DrainsSloped, polymer concrete trench drain systems with iron edge rails. Bolted and non-removable iron grate options provide highway traffic-rated support.
QMax
Slotted High-Capacity DrainsMDPE, high-capacity trench drain channels with heavy-duty slotted railing. EN1433 A–F loading supports projects such as airports (airside) with high demands.

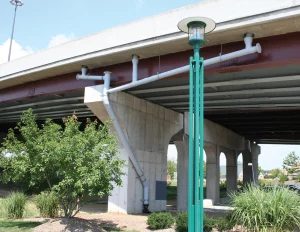

BridgeDrain
Lightweight Bridge Deck DrainsFiberglass scuppers built to drain stormwater from bridges and overpasses. Weather-resistant, with steel and iron grating available.
Oil-Water Separators
Stormwater TreatmentPolymer concrete and polyethylene separators capable of removing oil and suspended solids from wastewater. Multiple capacities and flow rates available.
Spill Containment Curbs
Spill RetentionDurable, low-maintenance polymer concrete barrier for containing hazardous spills in industrial and chemical storage areas. Sloped for forklift traffic.
Aquaduct Trench
Custom Trench DrainsFully custom trench drain systems tailored to complex project requirements that standard systems can’t meet.
Aquaduct Double Containment
Leak Detection SystemTrench drains with advanced leak detection and prevention for high-risk environments. Leaks are captured between monitored dual trenches.
Aquaduct Former System
Custom Trench FormerCost-effective, reusable solution for shaping concrete trench systems with precision. Fiberglass formers can be removed and reused after concrete cures.
Building Drainage
Modular
Stainless Grated Trench DrainsGrated, sloped, modular, stainless steel trench drain systems with emphasis on hygienic design, corrosion-resistance, durability, and ease of maintenance.
SlotDrain
Stainless Slotted Trench DrainsSlotted, sloped, modular, stainless steel trench drain systems with emphasis on hygienic design, corrosion-resistance, durability, and ease of maintenance.
BoxDrain
Stainless Floor SinksGrated, hygienic, stainless steel floor sinks built for the heavy demands of commercial kitchens and food service environments.
FloorDrain
Stainless Floor DrainsSquare and round stainless steel floor drains built for industrial facilities. Grated, hygienic, and versatile; includes options for size, height, and outlet.
Case Studies
-

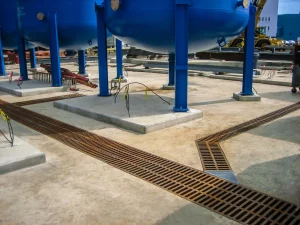

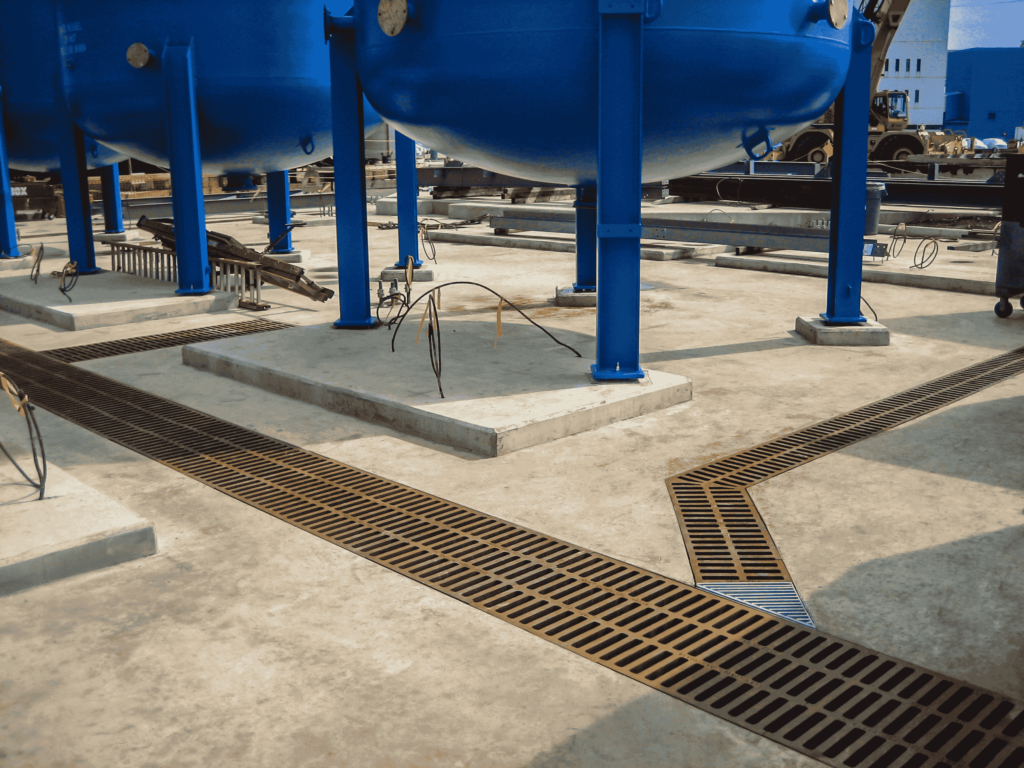

DTE Energy Electric Company
ACO Aquaduct was installed at the Monroe Power Plant in Monroe, MI to replace a cast-in-place trench drain design. The modular system simplified complex layouts, reducing time and cost while providing durable, efficient drainage for one of the largest coal-fired power plants on the western shore of Lake Erie. -

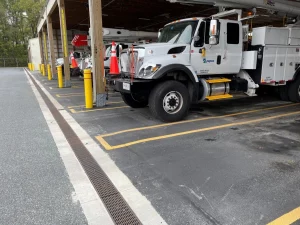

Pepco
ACO KlassikDrain K200 with 678Q grates was installed across the service-truck parking lot at the Pepco Service Yard to resolve recurring drainage issues. Durable grates handle heavy vehicle loads, while straightforward brackets and layout planning sped installation and minimized downtime.
Considerations
Loading
- Extraordinary heavy loads may be present and require a drainage system and grate with a minimum Load Rating of Class F
- Monolithic systems (Monoblok) or those cast into the slab (Qmax) may be required to withstand dynamic loads
Application
- High capacity intake grates may be required where large volumes are present
- Wastewater may contain hydrocarbons and/or chemicals and chemical resistance and post collection treatment may be necessary
- Slip resistant grates may be required in pedestrian access areas
- Aquaduct custom trench drains are also available for unique applications
Areas with large run-off volumes may be ideal for modular water storage such as ACO StormBrixx
