Veterans Memorial Bridge
Cleveland, Ohio
Veterans Memorial Bridge was originally The Detroit Superior Bridge and was established in 1917. The bridge was then renamed Veterans Memorial Bridge on Veterans Day in 1989.
Problem:

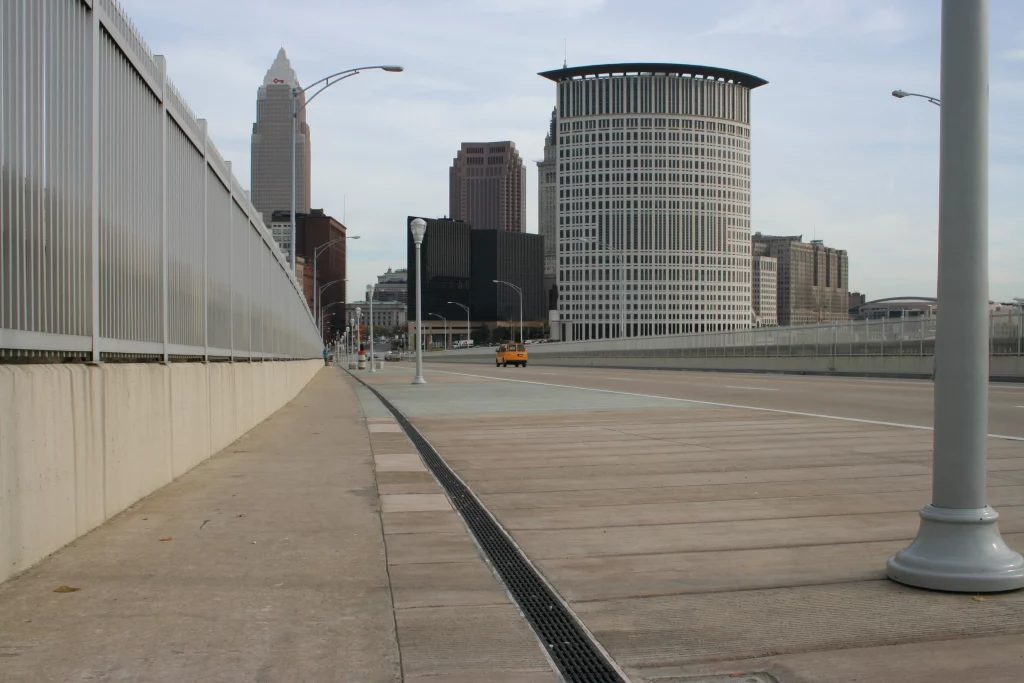

A trench drain was needed to run the length of the bridge when refurbishing the 3,112-foot-long structure. The key requirement was that the trench drain remove rainfall from the pavement before it runs onto the road surface, thus preventing slip hazards to both motorists and pedestrians. Due to the depth restrictions of the project, a shallow drainage system was needed.
ACO Solution:
- ACO Drain®
- SlabDrain H100K with Type 494Q
- Longitudinal Plastic Grates
ACO's SlabDrain H100K was chosen as the solution due to its overall depth of just 4". The Type 494Q grate by ACO is designed to be safe for pedestrians without sacrificing aesthetics.
-
SlabDrain H100K-6/H100KS6
- 4” internal width
- 1.78” invert depth
- Polymer concrete channels
- Stainless/galvanized rails
- EN-1433 Load Class A–E
-
SlabDrain H100K-8/H100KS8
- 4” internal width
- 2.56” invert depth
- Polymer concrete channels
- Stainless/galvanized rails
- EN-1433 Load Class A–E
