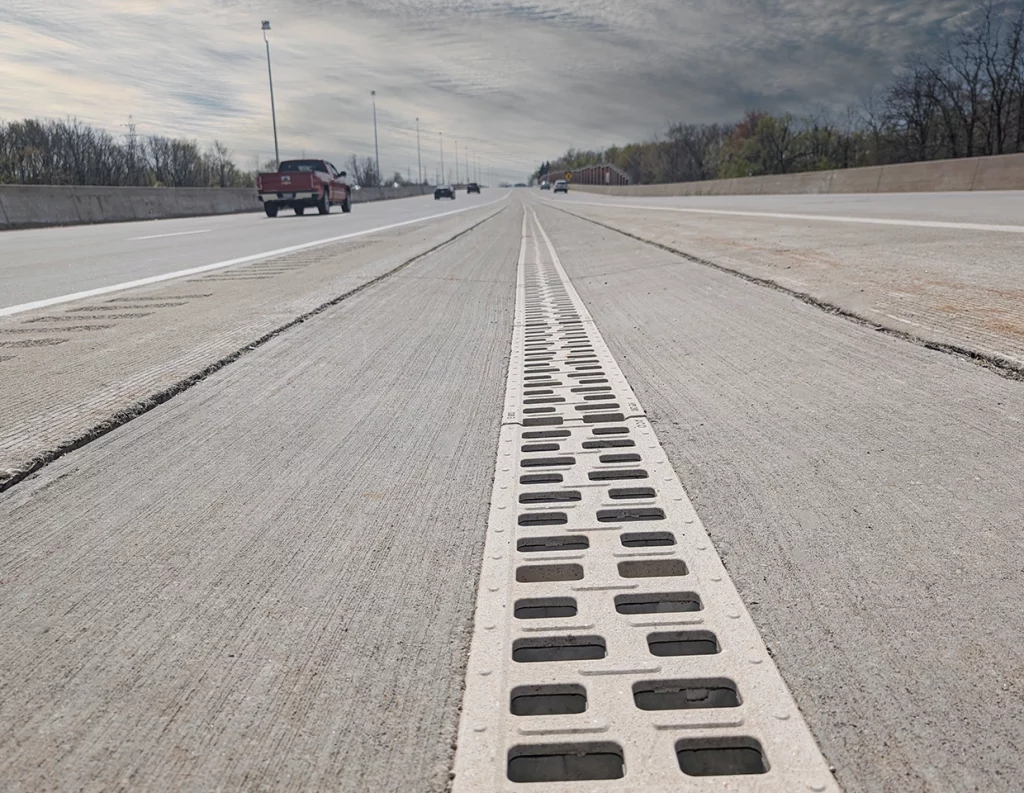

Highways & Bridges
The success of transportation projects rely on quality product solutions and exceptional service that ensures many variables such as load ratings, traffic and speed are taken into consideration. Roads and transportation hubs require solutions engineered for their specific needs. ACO offers specialized drainage solutions for bridges, highways, and surface roads able to handle constant traffic.
Products
Stormwater Management
FlowDrain
Fiberglass Drains- Lightweight fiberglass channels
- 1.0% sloped systems
- Steel and iron frames/grates
- Longer channels for longer runs
- EN1433 A–F grate loading
MonoBloc
Monolithic DrainsGrate-free polymer concrete channels built for high and heavy traffic. Monolithic build leads to increased security, stability, and EN1433 A–E load support.
QMax
Slotted High-Capacity DrainsMDPE, high-capacity trench drain channels with heavy-duty slotted railing. EN1433 A–F loading supports projects such as airports (airside) with high demands.
BridgeDrain
Lightweight Bridge Deck DrainsFiberglass scuppers built to drain stormwater from bridges and overpasses. Weather-resistant, with steel and iron grating available.
DrainLine
DIY Vehicle-Rated Trench DrainsPolymer concrete residential trench drain system built to protect driveways, patios, and walkways with reliable water management.
Climate Tunnels
Wildlife Road TunnelsSafe and sustainable polymer concrete passages for small wildlife beneath roadways, helping reduce collisions and habitat fragmentation.
Amphibian Wall
Wildlife Guiding WallDurable polymer concrete animal guidance system designed to protect small wildlife from road hazards. Can redirect wildlife to Climate Tunnel under roadways.
Wildlife Fencing System
Wildlife Guiding FenceLightweight plastic animal guidance system designed to protect small wildlife from road hazards. Can redirect wildlife to Climate Tunnel under roadways.
Aquaduct Trench
Custom Trench DrainsFully custom trench drain systems tailored to complex project requirements that standard systems can’t meet.
Aquaduct Double Containment
Leak Detection SystemTrench drains with advanced leak detection and prevention for high-risk environments. Leaks are captured between monitored dual trenches.
Aquaduct Former System
Custom Trench FormerCost-effective, reusable solution for shaping concrete trench systems with precision. Fiberglass formers can be removed and reused after concrete cures.
Case Studies
-
Brooklyn Battery Tunnel
Brooklyn, New YorkThe Brooklyn–Battery Tunnel is a two-tube tolled tunnel connecting Brooklyn and Manhattan by bypassing the East River. It is the longest continuous underwater vehicular tunnel in North America. Problem: As the four existing drainage installation (entries and exits) were perpendicular to traffic, it was decided that the grated drainage would… Read More -
Circuit of the Americas – Formula 1 Race Track
Austin, TexasSince 1950, Formula One has been the world’s top motor racing championship. Many F1 races were staged in the United States during that time. The final Formula One race in the United States was conducted in 2007 at the Indianapolis Motor Speedway in Indiana. It was announced in 2010 that… Read More -
Executive Housing Development
Santa Cruz, CaliforniaOur ACO Wildlife Fencing and Climate Tunnel were installed at the Executive Housing Development in Santa Cruz, CA to guide the protected Santa Cruz Long-toed Salamander safely to breeding ponds. Recycled plastic tunnel entrances and barrier systems ensure safe passage, meeting conservation requirements for this exclusive hillside community. -
F1 Miami Grand Prix
Miami, FloridaACO MonoBloc HD200 was installed at the Miami F1 circuit to rapidly capture and redirect rainwater along the track perimeter. The one-piece design withstands extreme vehicle loads, maintaining consistent surface conditions, reducing hydroplaning risk, and enhancing safety and performance during wet weather. -
Government Bridge
Davenport, IowaACO BridgeDrain was installed on the Government Bridge to manage deck runoff. Scuppers collect water at the surface and tie into the existing pipe network, helping prevent ponding and deicing chemical buildup while simplifying maintenance and extending deck service life. -
Huguenot Road Bridge
Richmond, VirginiaACO BridgeDrain was installed at the Huguenot Road Bridge to remove stormwater from the deck. Discrete scuppers capture runoff and discharge away from the surface, reducing splash and spray and improving safety during rain. -
I-75 Highway
Flint, MichiganACO TraffikDrain 100 was installed along an 8-mile stretch of I-75 near Flint, MI to eliminate ponding on a flat roadway. Continuous trench runs with high-intake ductile iron grates and cast-in rails deliver rapid water evacuation and heavy-duty performance, improving safety while reducing grading costs. -
IDOT 7 West I90
Rosemont, IllinoisThe project for West I90 by O’Hare Airport was divided into three phases. Milling, resurfacing, shoulder rumble strips, and drainage system improvements are all component of project plan for phase two. Problem: For phase two, all operations specified by the engineer must be followed. Those objectives include excavation, frames, grates,… Read More -
Las Vegas Grand Prix
Las Vegas, NevadaThe project stands out as a testament to the flexibility and innovations by ACO. Custom channels, grates, and junction boxes were design and manufactured specifically for this project. Problem: The PowerDrain was used as a cable chase primarily with a secondary use for nuisance water. The PowerDrain runs span across… Read More -
Stackpole Road
Somersworth, New HampshireStackpole Road is a major intersection in Somersworth, New Hampshire and is prone to ponding water after heavy rainfall and melting snow. Problem: The ponding water causes numerous road hazards for the drivers in the area. ACO Solution: ACO Infrastructure MonoBloc HD200 To alleviate the problem, ACO’s MonoBloc… Read More -
State Highway 288
Houston, TexasState Highway 288 or SH 288, is a north-south highway in the southeastern portion of Texas, between I-45 in downtown Houston and Freeport, where it terminates on FM 1495. The route was originally designed in 1939. Problem Texas Department of Transportation was looking for an approved drain system that could… Read More -
State Route 23
Chillicothe, OhioState Highway 288 or SH 288, is a north-south highway in the southeastern portion of Texas, between I-45 in downtown Houston and Freeport, where it terminates on FM 1495. The route was originally designed in 1939. Problem: Texas Department of Transportation was looking for an approved drain system that could… Read More -
Stirling Road
Cooper City, FloridaThis project was designed to alleviate a flooding problem along a 2,000 foot stretch of Stirling Road in Cooper City, Florida Problem: Before the trench drain was installed on the south side of the road, ponding would occur in the grassy area along that side of the road during a… Read More -
Ventana Way Seascape Uplands Oceanview Residential Development
Aptos, CaliforniaOur ACO Climate Tunnel and Wildlife Fencing were installed at Seascape Uplands in Santa Cruz, CA to enable safe migration of the protected Santa Cruz Long-toed Salamander. The slotted-surface tunnels and barrier fencing guide amphibians across the development without injury, meeting conservation requirements for this exclusive hillside community. -
Veterans Memorial Bridge
Cleveland, OhioVeterans Memorial Bridge was originally The Detroit Superior Bridge and was established in 1917. The bridge was then renamed Veterans Memorial Bridge on Veterans Day in 1989. Problem: A trench drain was needed to run the length of the bridge when refurbishing the 3,112-foot-long structure. The key requirement was that… Read More
Considerations
Loading
- Extraordinary heavy loads may be present and require a drainage system and grate with a minimum Load Rating of Class F
- Monolithic systems (Monoblok) or those cast into the slab (Qmax) may be required to withstand dynamic loads
Application
- High capacity intake grates may be required as large volumes are present and tolerance for short-term ponding is low
- Wastewater from may contain hydrocarbons and post collection treatment may be necessary
- Bridge decks often require products with minimal weight – ACO BridgeDrain is a lightweight fiberglass scupper system designed specifically for bridge applications
- Aquaduct custom trench drains are also available for unique applications
Areas with large run-off volumes may be ideal for modular water storage such as ACO StormBrixx
