BoxDrain 16″

16” Wide Stainless Steel Floor Sink
Hygienic stainless steel floor trough for commercial kitchens/restaurants, ideal for areas near steamers, dishwashers, and other high-volume wastewater equipment.
  • 16″ (400 mm) internal width with 2.36″ (60 mm) invert depth
  • Dry-sump, fully drainable design eliminates standing water and odors
  • Internal radii ≥ 1/8″ (3 mm) promote effective cleaning and hygiene
  • Reinforced flat-bottom profile for added strength in wider systems
  • Slip-resistant, lockable grates certified to 5 tons (ASME A112.6.3 / EN 1433)
  • Edge infill ensures sealed transition to surrounding flooring
  • Outlet options: ACO Pipe 200 mm, ACO P-Trap, or ACO FloorDrain 12″ body with 4″ / 6″ outlet
  • Available in AISI 304 or AISI 316L stainless steel, pickled and passivated
Find a Rep

Technical Documents

  • Product Literature
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Sinks
    BoxDrain 16″
    • ACO Stainless Steel Resistance Table PDF
    • ACO Building Drainage – 304 vs 316L Stainless Steel PDF
    • ACO Building Drainage Brewery Brochure PDF
    • ACO Building Drainage Commercial Kitchen Brochure PDF
    • ACO Building Drainage Food & Beverage Brochure PDF
    • ACO Building Drainage Winery Brochure PDF
    • ACO FloorDrain Top & ACO BoxDrain Installation Guide PDF
    • ACO Stainless Catalog VIEW
  • Specification Drawings
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Sinks
    BoxDrain 16″
    • ACO BoxDrain – Frameless Ladder Grate Spec Sheet PDF
    • ACO BoxDrain – Ladder Grate Spec Sheet PDF
    • ACO BoxDrain – Mesh Grate Spec Sheet PDF
    • ACO BoxDrain – Slot Cover Grate Spec Sheet PDF
    • ACO BoxDrain 16 Inch Channels – Spec Sheet PDF

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Ladder

    Ladder

    Part No. 416821

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 15.75"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 180.90 in2
    Weight 27.60 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416823

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 23.62"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 274.60 in2
    Weight 37.30 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416820

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 15.75"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 180.90 in2
    Weight 37.30 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416822

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 23.62"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 274.60 in2
    Weight 27.60 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Mesh

    Mesh

    Part No. 416869

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 15.75"
    Slot Size 0.91" x 0.91" avg.
    Intake Area 188.50 in2
    Weight 8.80 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Mesh

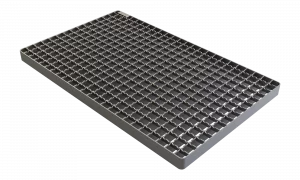

    Mesh

    Part No. 416871

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 23.62"
    Slot Size 0.91" x 0.91" avg.
    Intake Area 284.30 in2
    Weight 13.00 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Mesh

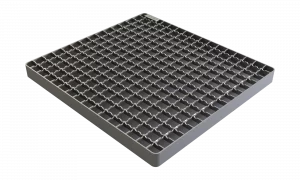

    Mesh

    Part No. 416868

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 15.75"
    Slot Size 0.91" x 0.91" avg.
    Intake Area 188.50 in2
    Weight 8.80 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Mesh

    Mesh

    Part No. 416870

    Light Duty (ASME) – ≤2,000 LBS
    Width 14.49"
    Length 23.62"
    Slot Size 0.91" x 0.91" avg.
    Intake Area 284.30 in2
    Weight 13.00 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416825

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 14.49"
    Length 15.75"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 172.60 in2
    Weight 29.20 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416827

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 14.49"
    Length 23.62"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 261.40 in2
    Weight 22.30 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416824

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 14.49"
    Length 15.75"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 172.60 in2
    Weight 22.30 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder

    Ladder

    Part No. 416826

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 14.49"
    Length 23.62"
    Slot Size 14.49" x 0.79" avg.
    Intake Area 261.40 in2
    Weight 29.20 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
