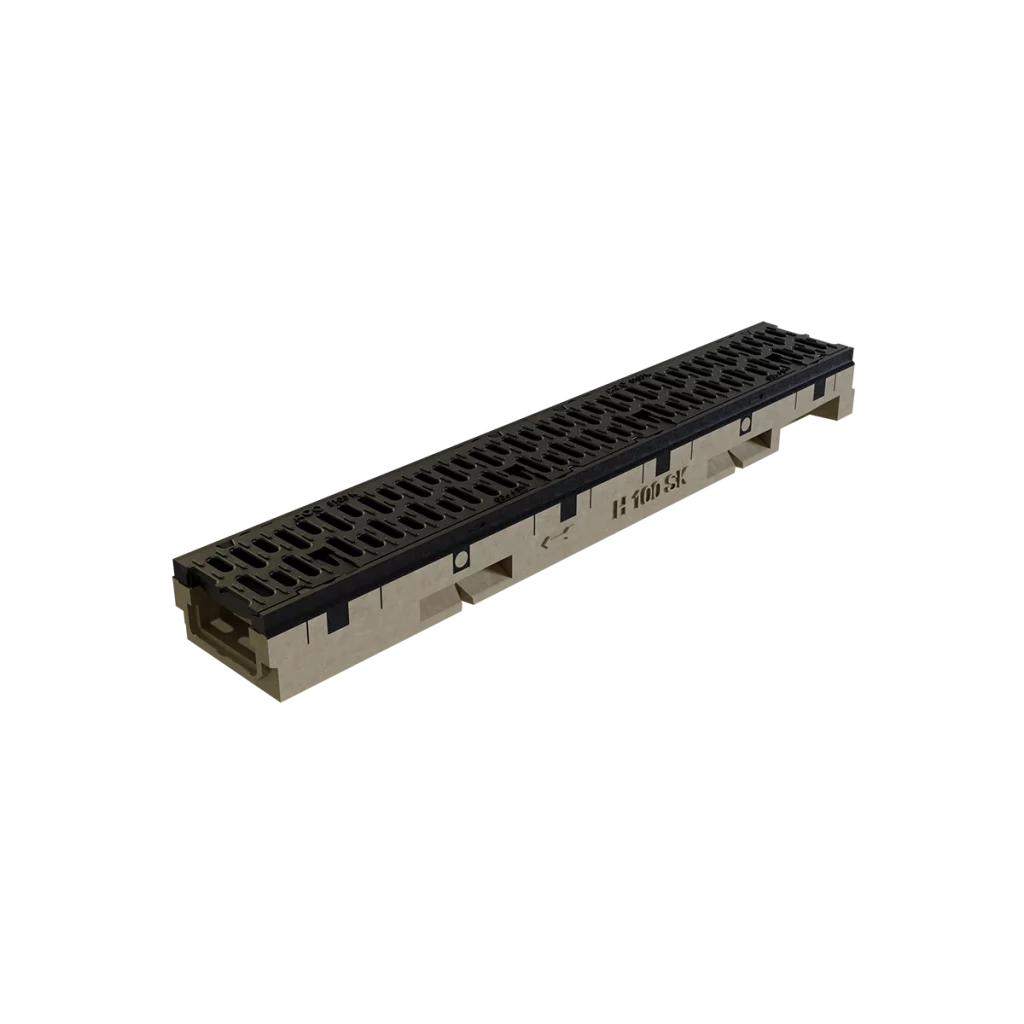

SlabDrain H100SK-10

4" Internal Width Shallow Trench Drain

Shallow-invert, constant-depth trench drain system made of polymer concrete with a ductile iron edge rail Ideal for applications with depth restrictions.

Pedestrian to heavy industrial-duty loads (EN-1433 Load Class F)
Invert depth of 2.83" (72 mm)
Bolted or PowerLok® boltless grate locking options

Where to Buy

Width	4"
Length	19.69"
Slot Size	0.71" x 1.81" avg.
Intake Area	36.00 in²
Weight	10.80 lbs

Width	4"
Length	19.69"
Slot Size	1.36" x 0.45" avg.
Intake Area	25.20 in²
Weight	13.60 lbs

Width	4"
Length	19.69"
Slot Size	0.43" x 1.98" avg.
Intake Area	25.70 in²
Weight	12.30 lbs

Stormwater Management

Building Drainage

SlabDrain H100SK-10

Technical Documents

Filter by Document Type

Grates

Select Load Class

Select Length

Select Site Need

Select Material

Select Design

Available Grates:

4-Bolt Slotted Ductile Iron

PowerLok® Longitudinal Ductile Iron

PowerLok® Slotted Ductile Iron
