Brickslot 100
Brickslot 100

Brickslot 100

Slotted Drain Cover​ for Pavers
Designed for use with 4” internal width KlassikDrain and SlabDrain trench drain. Slots blend seamlessly with pavers in pedestrian areas requiring low-profile drainage.
  • Pedestrian to industrial-duty loads (EN-1433 Load Class C)
  • 0.47" (12 mm) slot opening for minimal visual impact
  • Flared slot: 0.31" (8 mm) to 0.87" (22 mm) for increased drainage capacity
  • Supports pavers up to 2.48" (63 mm) deep; ideal for 3.15" (80 mm) pavers
  • Available in galvanized or 11-gauge stainless steel
  • Offered in half-meter sections with access units for maintenance
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Slotted Paver Drains
    Brickslot 100
    • ACO Brickslot Product Line Overview PDF
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
  • Specification Drawings
    Commercial Trench Drains
    Slotted Paver Drains
    Brickslot 100
    • Brickslot – Type 441-442 Galvanized Brickslot 100 Spec Sheet PDF
    • Brickslot – Type 443-444 Stainless Steel Brickslot 100 Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Slotted Paver Drains
    Brickslot 100
    • BS100 H100-10 MD – Load A – Exposed Concrete Pavement PDF DWG
    • BS100 H100K-8 – Load A – Exposed Concrete Pavement PDF DWG
    • BS100 H100K-8 – Load A – Exposed Concrete Pavement PDF DWG
    • BS100 H100K-8 – Load A – Exposed Paver Pavement PDF DWG
    • BS100 H100K-8 – Load A – Haunched Paver Pavement PDF DWG
    • BS100 H100K-8 – Load B – Exposed Concrete Pavement PDF DWG
    • BS100 H100K-8 – Load B – Exposed Paver Pavement PDF DWG
    • BS100 H100K-8 – Load B – Haunched Paver Pavement PDF DWG
    • BS100 H100K-8 – Load C – Exposed Concrete Pavement PDF DWG
    • BS100 H100K-8 – Load C – Exposed Paver Pavement PDF DWG

Tools

  • tool icon set_SWM Trench Hydraulics

    Stormwater Trench Drain Hydraulics

    ACO’s HYDROlite software provides accurate Stormwater channel size recommendations.

    Use Tool
  • tool icon set_Grate Hydraulics

    Stormwater Grate Intake Calculator

    Provides Stormwater grate intake performance recommendations.

    Use Tool

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

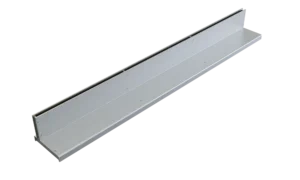

  • Brickslot 100 Type 441 Galvanized Steel

    Brickslot 100 Type 441 Galvanized Steel

    Part No. 138040

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 39.37"
    Slot Size 39.40" x 0.47" avg.
    Intake Area 18.60 in2
    Weight 17.60 lbs
    ADA Compliant Bicycle Safe LEED Certified
    Calculate water intake Spec sheet

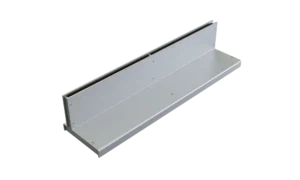

  • Brickslot 100 Type 442 Galvanized Steel

    Brickslot 100 Type 442 Galvanized Steel

    Part No. 138041

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 39.40" x 0.47" avg.
    Intake Area 18.60 in2
    Weight 9.00 lbs
    ADA Compliant Bicycle Safe LEED Certified
    Calculate water intake Spec sheet

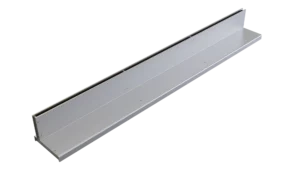

  • Brickslot 100 Type 443 Stainless Steel

    Brickslot 100 Type 443 Stainless Steel

    Part No. 138045

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 39.37"
    Slot Size 39.40" x 0.47" avg.
    Intake Area 18.60 in2
    Weight 17.60 lbs
    ADA Compliant Bicycle Safe LEED Certified
    Calculate water intake Spec sheet

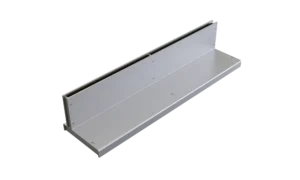

  • Brickslot 100 Type 444 Stainless Steel

    Brickslot 100 Type 444 Stainless Steel

    Part No. 138046

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 39.40" x 0.47" avg.
    Intake Area 18.60 in2
    Weight 9.00 lbs
    ADA Compliant Bicycle Safe LEED Certified
    Calculate water intake Spec sheet
  • Brickslot 100 Type 482 Galvanized Steel Access Unit

    Brickslot 100 Type 482 Galvanized Steel Access Unit

    Part No. 138042

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 19.70" x 0.47" avg.
    Intake Area 9.30 in2
    Weight 16.40 lbs
    ADA Compliant Bicycle Safe LEED Certified
    Calculate water intake Spec sheet
  • Brickslot 100 Type 484 Stainless Steel Access Unit

    Brickslot 100 Type 484 Stainless Steel Access Unit

    Part No. 138047

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Slot Size 19.70" x 0.47" avg.
    Intake Area 9.30 in2
    Weight 16.40 lbs
    ADA Compliant Bicycle Safe LEED Certified
    Calculate water intake Spec sheet

Case Studies

Blue Cross Blue Shield

Blue Cross Blue Shield

Detroit, Michigan
View Case Study
Peppermill Hotel and Casino

Peppermill Hotel and Casino

Reno, Nevada

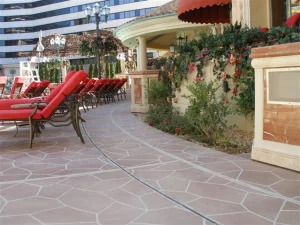

ACO Brickslot 100 was added at pool and garden equipment decks at Peppermill Resort Spa Casino to manage rain and fountain overspray. The low profile slot reduces slip hazards and complements the venue’s high end aesthetic.
View Case Study
The Resort at Pelican Hill

The Resort at Pelican Hill

Newport, California

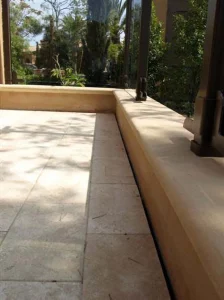

ACO Brickslot 100 serves patios and balconies at The Resort at Pelican Hill, removing surface water while harmonizing with brick pavers. The discreet slot preserves premium views and finishes across the property.
View Case Study
Sundance Square

Sundance Square

Fort Worth, Texas
Sundance Square has been a gathering place for downtown Fort Worth since 2013. It sums up Fort Worth: the history of the Wild West within a modern city. It’s also known as an entertainment hub, with small theaters, events and concerts at Sundance Square Plaza, and the Bass Performance Hall,… Read More
View Case Study
United States Institute of Peace

United States Institute of Peace

Washington, D.C.
ACO Brickslot 100 provides discreet pedestrian area drainage that does not distract from brick pavers or the landscape. The low profile slot supports accessible, secure circulation on this high visibility civic campus.
View Case Study
4 World Trade Center

4 World Trade Center

New York, New York
ACO Brickslot 100 provides discreet pedestrian area drainage at 4 World Trade Center, preventing pooling while blending into the plaza design and supporting accessible circulation without compromising the site’s refined finish.
View Case Study
Golden Gate Bridge

Golden Gate Bridge

San Francisco, California
The Golden Gate Bridge Visitor’s Experience Center was newly renovated to give guests information related to its tremendous 746′ tall towers, sweeping main cables, signature International Orange color, and art deco styling. Problem: This job required the designer to incorporate a drainage system with the aesthetics of the area in… Read More
View Case Study
Golden 1 Center Plaza

Golden 1 Center Plaza

Sacramento, California
Golden 1 Center is an indoor arena in downtown Sacramento, California. The arena is part of the Downtown Commons (DoCo) commercial and entertainment complex, which also includes a $250 million 16-story mixed-use tower. Problem: The customer requested a simple, unobtrusive solution that is both aesthetically beautiful and pedestrian-safe. Read More
View Case Study
American Veterans Disabled for Life Memorial

American Veterans Disabled for Life Memorial

Washington, D.C.

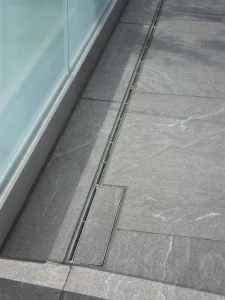

ACO Brickslot was customized at the American Veterans Disabled for Life Memorial to suit a four inch granite build up along the glass displays, providing discreet drainage that protects pedestrian safety and preserves the memorial’s aesthetic.
