FloorDrain Round 12"

FloorDrain Round 12″

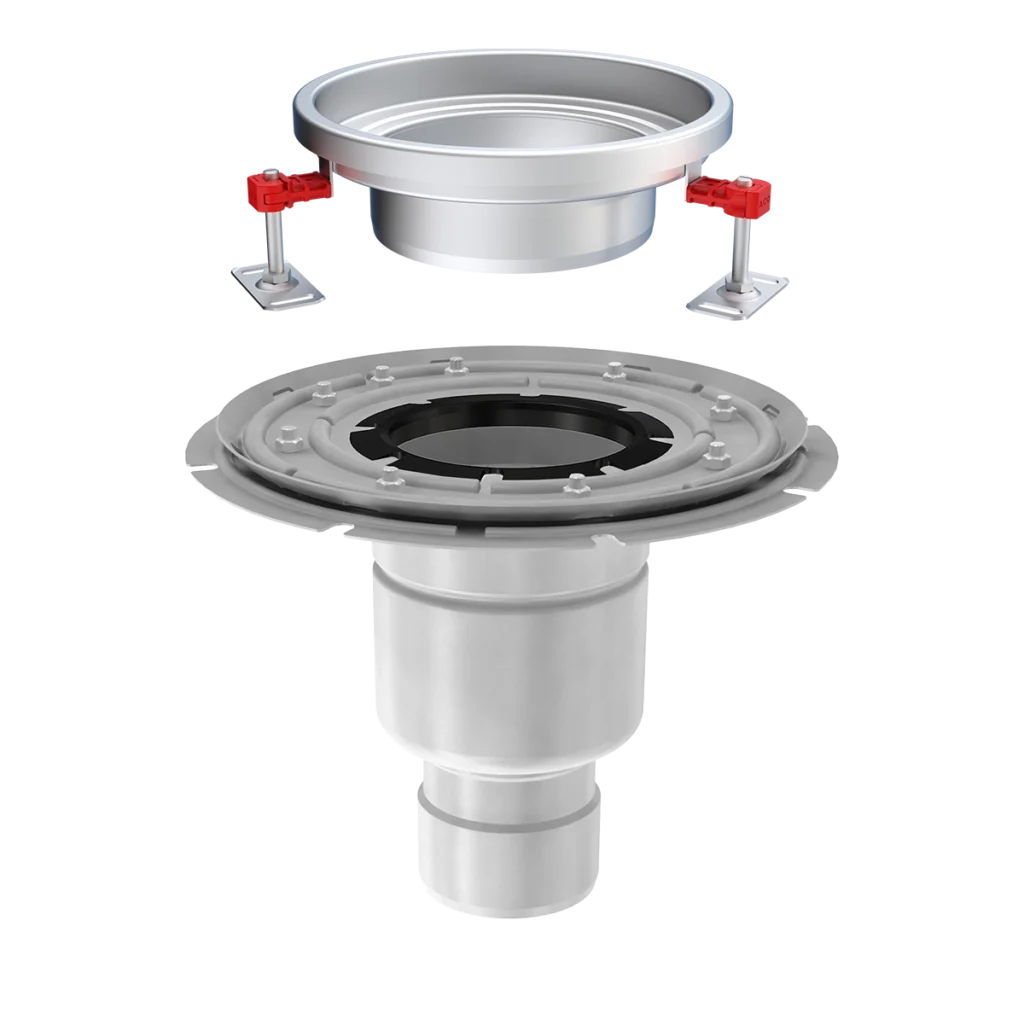

12” Wide Stainless Steel Round Floor Drain
Hygienic stainless steel point drain with minimal installation. Ideal for commercial kitchens/restaurants and food processing areas.
  • 12″ × 12″ round drain body available in AISI 304 or 316L stainless steel
  • Available in fixed-height or adjustable-height models with EasyFix leveling feet
  • Can be used in conjunction with ACO Hub Drains to capture wastewater from multiple outlet lines efficiently
  • Can be stand-alone or integrated into a trench drain system
  • Various round grate style options available
  • Deep-drawn body with ≥ 1/8″ (3 mm) internal radii and dry-sump design for complete drainage and easy cleaning
Find a Rep

Technical Documents

  • Product Literature
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Drains
    FloorDrain Round 12″
    • ACO Stainless Steel Resistance Table PDF
    • ACO Building Drainage Winery Brochure PDF
    • ACO Building Drainage Food & Beverage Brochure PDF
    • ACO Building Drainage Commercial Kitchen Brochure PDF
    • ACO Building Drainage Brewery Brochure PDF
    • ACO FloorDrain Product Line Overview PDF
    • ACO FloorDrain Top & ACO BoxDrain Installation Guide PDF
    • ACO Stainless Catalog VIEW
    • ACO Building Drainage – 304 vs 316L Stainless Steel PDF
  • Specification Drawings
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Drains
    FloorDrain Round 12″
    • ACO FloorDrain – Round Slot Cover Grate Spec Sheet PDF
    • ACO FloorDrain – Round Perforated Grate Spec Sheet PDF
    • ACO FloorDrain – Round Ladder Grate Spec Sheet PDF
    • ACO FloorDrain – Round Heelsafe Grate Spec Sheet PDF
    • ACO FloorDrain – Round Funnel Grate Spec Sheet PDF
    • ACO FloorDrain – Raising Piece Spec Sheet PDF
    • ACO FloorDrain – Round 12 Inch Adjustable Top Spec Sheet PDF
    • ACO FloorDrain – Round Frameless Ladder Grate Spec Sheet PDF

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

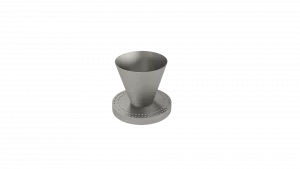

  • Funnel LD

    Funnel LD

    Part No. 140152

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 7.80"
    Weight 5.00 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Funnel LD

    Funnel LD

    Part No. 140147

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 7.80"
    Weight 5.00 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Heel-Safe LD

    Heel-Safe LD

    Part No. 140150

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 7.80"
    Weight 5.30 lbs
    ADA Compliant Anti-Slip Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet
  • Heel-Safe LD

    Heel-Safe LD

    Part No. 140145

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 7.80"
    Weight 5.30 lbs
    ADA Compliant Anti-Slip Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet
  • Perforated LD

    Perforated LD

    Part No. 447740

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 7.80"
    Slot Size ⌀0.24"
    Weight 3.50 lbs
    ADA Compliant Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet
  • Perforated LD

    Perforated LD

    Part No. 447732

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 7.80"
    Slot Size ⌀0.24"
    Weight 3.50 lbs
    ADA Compliant Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet

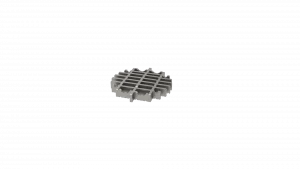

  • Frameless Ladder HD

    Frameless Ladder HD

    Part No. 446787

    Heavy Duty (ASME) – 5,000-7,499lbs
    Width 12"
    Length 7.80"
    Slot Size 0.79" x 2.40" avg.
    Weight 13.40 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified
    Spec sheet
  • Frameless Ladder HD

    Frameless Ladder HD

    Part No. 446786

    Heavy Duty (ASME) – 5,000-7,499lbs
    Width 12"
    Length 7.80"
    Slot Size 0.79" x 2.40" avg.
    Weight 13.40 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified
    Spec sheet
  • Ladder HD

    Ladder HD

    Part No. 446779

    Heavy Duty (ASME) – 5,000-7,499lbs
    Width 12"
    Length 7.80"
    Slot Size ⌀0.79"
    Weight 9.70 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder HD

    Ladder HD

    Part No. 446778

    Heavy Duty (ASME) – 5,000-7,499lbs
    Width 12"
    Length 7.80"
    Slot Size ⌀0.79"
    Weight 9.70 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet

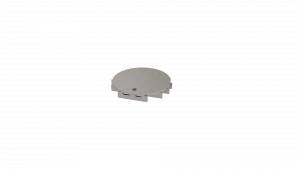

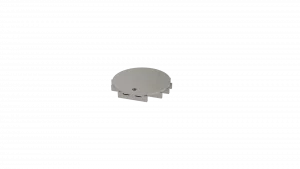

  • Slot Cover HD

    Slot Cover HD

    Part No. 446791

    Heavy Duty (ASME) – 5,000-7,499lbs
    Width 12"
    Length 7.80"
    Slot Size 0.35" perimeter slot
    Weight 9.90 lbs
    ADA Compliant Anti-Slip Chem Resist Hygienic LEED Certified
    Spec sheet
  • Slot Cover HD

    Slot Cover HD

    Part No. 446790

    Heavy Duty (ASME) – 5,000-7,499lbs
    Width 12"
    Length 7.80"
    Slot Size 0.35" perimeter slot
    Weight 9.90 lbs
    ADA Compliant Anti-Slip Chem Resist Hygienic LEED Certified
    Spec sheet
