4” Internal Width Grated Drain for Sports Tracks
Polymer concrete grated drainage system ideal for sports fields, courts, and running tracks. Compatible with System 2000 radius channels where slotted drains are required on curves. Rubber safety edge is available for constant-depth channels to reduce athlete injury from impact.
  • Certified to DIN 19580 Load Class A (3,500 lbs, 70 psi)
  • Straight 0.6% sloped channels (constant-depth channels available)
  • ADA-compliant grate options available
  • QuickLok® boltless grate locking
  • Matching in-line catch basin available
Find a Rep

Technical Documents

  • Product Literature
    Athletic & Sports Field Systems
    Track & Field Drains
    System 4000
    • ACO Sport Product Line Overview PDF
    • ACO Sport Site Installation Guide PDF
    • ACO Sport System 4000 Product Line Overview PDF
  • Specification Drawings
    Athletic & Sports Field Systems
    Track & Field Drains
    System 4000
    • ACO Sport – Plastic Grate Spec Sheet PDF
    • ACO Sport – Slotted Galvanized Steel Grate Spec Sheet PDF
    • ACO Sport – System 4000 Open Channel Trench Drain System Spec Sheet PDF
    • ACO Sport – System 4000 Safety Edge Spec Sheet PDF
  • Standard Installation Details
    Athletic & Sports Field Systems
    Track & Field Drains
    System 4000
    • S4000 – Concrete, Grass, Non-Porous Synthetic Surface v1 PDF DWG
    • S4000 – Concrete, Grass, Non-Porous Synthetic Surface v2 PDF DWG
    • S4000 – Concrete, Grass, Synthetic Surface Overlay PDF DWG
    • S4000 – Concrete, Turf, Non-Porous Synthetic Surface v1 PDF DWG
    • S4000 – Concrete, Turf, Non-Porous Synthetic Surface v2 PDF DWG
    • S4000 – Concrete, Turf, Non-Porous Synthetic Surface v3 PDF DWG
    • S4000 – Full Concrete, Grass, Non-Porous Synthetic Surface PDF DWG
    • S4000 – Full Concrete, Turf, Synthetic Surface PDF DWG
    • S4000 – Full Concrete, Turf, Synthetic Surface Overlay PDF DWG
    • S4000 – Partial Concrete, Grass, Non-Porous Synthetic Surface PDF DWG

Case Studies

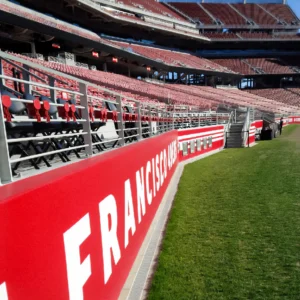

Levi's Stadium at Santa Clara, California

Levi’s Stadium

Santa Clara, California
Levi’s Stadium is home to the NFL’s San Francisco 49ers and has served as the hosting location for Super Bowls, Rugby World Cups, college football games, soccer matches, wrestling events, concerts, and ice hockey. The stadium is also known for promoting its green infrastructure components, including a rooftop farm, several… Read More
View Case Study

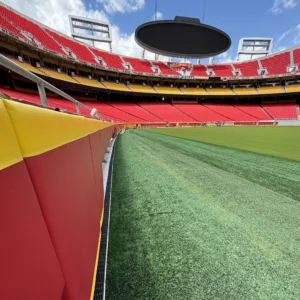

arrowhead Stadium in Kansas City Missouri

Arrowhead Stadium

Kansas City, Missouri
Kansas City’s Arrowhead Stadium boasts a 76,000+ seating capacity to support fans of its NFL home team Kansas City Chiefs. The stadium also supports college football, soccer, concerts, and other various events. Problem: Simple, unobtrusive drainage was needed around the perimeter of the playing field to remain out of the… Read More
View Case Study
Kenyon College

Kenyon College

Gambier, Ohio
Kenyon College is a private liberal arts college in Gambier, Ohio. It was founded in 1824 and has a 1,000-acre campus is set in a rural setting. Problem: A major overhaul of the sports facilities at the college the outdoor athletic track was resurfaced and a new perimeter trench drain… Read More
View Case Study
Alpharetta High School

Alpharetta High School

Alpharetta, Georgia
ACO Sport System 4000 was installed around the running track at Alpharetta High School to provide reliable perimeter drainage. Removable grates allow easy clearing of turf clippings and debris, protecting the surface and maintaining safe, consistent performance for athletes.
