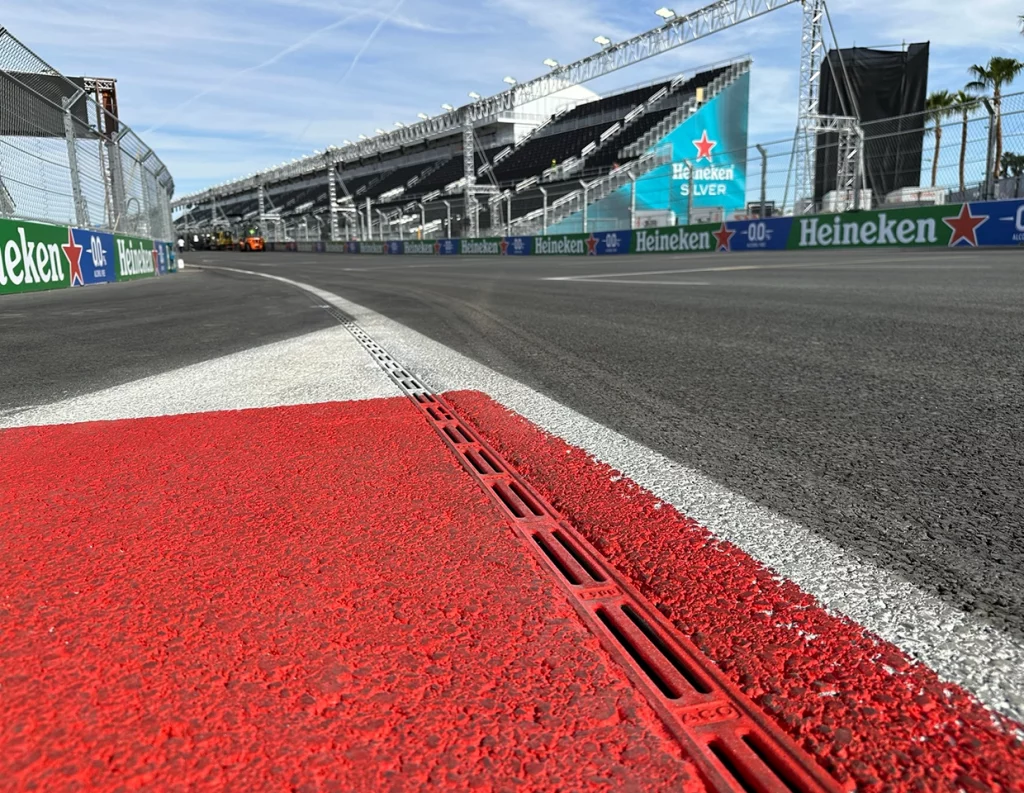

Sports Venues & Facilities
Sports facilities and venues are designed to hold large amounts of people while having a safe environment with minimal water on the floor to avoid slips.
Trench drains in sports facilities can be a crucial part of maintaining people and property safety. Many sports venues have long runs of linear drainage. Stadiums, racetracks, and baseball or football fields see massive foot-traffic and constant use.
Products
Stormwater Management
KlassikDrain
General Purpose Drains- Polymer concrete channels
- 0.5% sloped systems
- Steel edge rails
- Steel, iron, and plastic grates
- EN1433 A–E grate loading
Brickslot
Slotted Paver Drains- Steel slotted channel covers
- Fits KlassikDrain K100/K200
- Discreetly supports pavers
- Heel-resistant options
- EN1433 A–C cover loading
SlabDrain
Shallow Depth Drains- Polymer concrete channels
- Constant depth systems
- Various edge rail & grate materials
- Shallow invert depth
- EN1433 A–F grate loading
Sumps
Multi-System Catch Basins- Polymer concrete bodies
- Constant depth systems
- Ductile iron frames/grates
- Standalone or system-integrated
- Supports AASHTO H20/HS20
ACO StormBrixx®
Modular Water TanksStormBrixx is a geocellular stormwater storage solution designed to maximize capacity in areas with depth or space restrictions. Its modular, brick-bonding design ensures stability, while lightweight construction simplifies installation alongside existing utilities. Built for durability with a 50–60 year design life, StormBrixx offers reliable water management that reduces excavation needs and provides long-lasting performance in urban and industrial environments.
MonoBloc
Monolithic DrainsGrate-free polymer concrete channels built for high and heavy traffic. Monolithic build leads to increased security, stability, and EN1433 A–E load support.

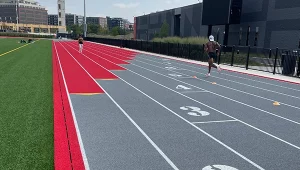

Sport Trench Drains
Track & Field DrainsPolymer concrete trench drains built with track & field in mind. Options include slotted or grated channels, rubber safety edges, and radiused slotted channels.

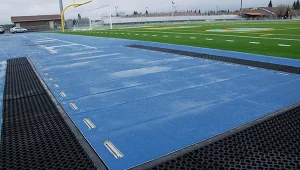

Jump Pits
Long Jump Sand PitsComplete modular jump pits built with integrated drainage to keep sand competition-ready. Builds available to meet high school, NCAA, and IAAF specifications.

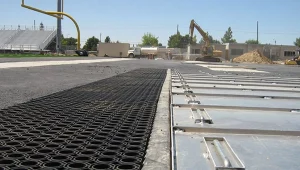

Sand Traps
Sand BasinsPolymer concrete basins with rubber matting designed to capture displaced sand, keeping adjacent areas cleaner and easier to maintain.

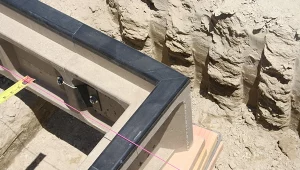

Safety Curbs
Field CurbingPolymer concrete curbing to create boundaries for fields, sandboxes, jump pits, and other applications. Rubber safety edge included to minimize contact injury.
ACO UtilityDuct
Utility TrenchUtility Duct provides a reliable surface-level solution for housing and protecting utilities such as cables and pipes. Made from durable polymer concrete, it shields people from hazardous contents while allowing safe, continuous access via removable covers. Resistant to chemicals, oils, and heavy loads, UtilityDuct delivers long-lasting performance in commercial and industrial environments.
Case Studies
-
Alpharetta High School
Alpharetta, GeorgiaACO Sport System 4000 was installed around the running track at Alpharetta High School to provide reliable perimeter drainage. Removable grates allow easy clearing of turf clippings and debris, protecting the surface and maintaining safe, consistent performance for athletes. -

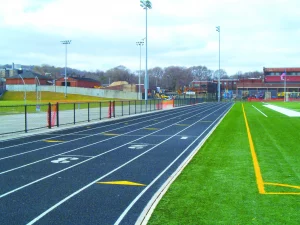

Arlington High School
Arlington, MassachusettsIn order to protect it’s investment in a new track Arlington High School wanted an effective yet affordable drainage system. Problem: Not only can standing water impact on the usability of the track but in the cold winters of the northeast any standing water could easily freeze and cause serious… Read More -
Arrowhead Stadium
Kansas City, MissouriKansas City’s Arrowhead Stadium boasts a 76,000+ seating capacity to support fans of its NFL home team Kansas City Chiefs. The stadium also supports college football, soccer, concerts, and other various events. Problem: Simple, unobtrusive drainage was needed around the perimeter of the playing field to remain out of the… Read More -

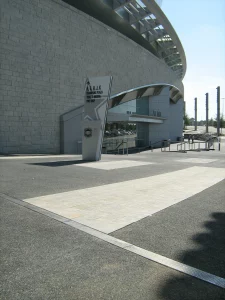

AT&T Stadium
Arlington, TexasAT&T Stadium has served as the home field for the NFL’s Dallas Cowboys since 2009. With a base capacity of 80,000, the Texas stadium has stood host to countless NFL and college football games (including a Super Bowl), several CONCACAF soccer Gold Cups, nine matches of the 2026 FIFA World… Read More -

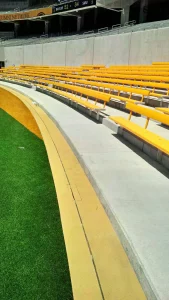

Baylor Stadium
Waco, TexasACO Sport System 2000 was installed around the football field at McLane Stadium in Waco, TX to provide efficient drainage. The system manages surface water effectively, protecting the field and ensuring safe, optimal playing conditions for Baylor University’s football program. -

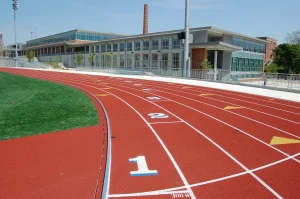

Coppin State University
Baltimore, MarylandCoppin State University is a public historically black university and was founded in 1900. The facility was in honor of an African-America woman who was a pioneer in teacher education named Fanny Jackson Coppin. Problem: Coppin State University’s new multi-purpose field and 400-meter outdoor track required a trench drain to… Read More -

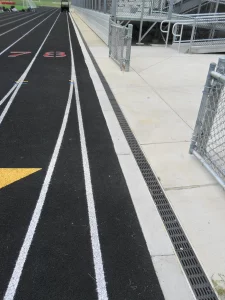

Crofton Area High School
Crofton, MarylandCrofton High School is a public high school in the Crofton, Maryland suburbs. Problem: A state-of-the-art sports complex was part of the facility development project, which necessitated a system to keep standing water off the track surface and insuring its longevity. ACO Solution: System 4000 with Type 494Q… Read More -
Dover Motor Speedway
Dover, DelawareDover Motor Speedway, a racetrack and the perfect spot to enjoy all the thrills and excitement of NASCAR racing. Since 1969, the track has hosted at least one NASCAR Cup Series race per year, including two from 1971 to 2020. Problem: The entranceway to garages is one of the busiest… Read More -
Golden 1 Center Plaza
Sacramento, CaliforniaGolden 1 Center is an indoor arena in downtown Sacramento, California. The arena is part of the Downtown Commons (DoCo) commercial and entertainment complex, which also includes a $250 million 16-story mixed-use tower. Problem: The customer requested a simple, unobtrusive solution that is both aesthetically beautiful and pedestrian-safe. Read More -
Guaranteed Rate Field
Chicago, IllinoisHome of the Chicago White Sox, Guaranteed Rate Field (formerly Comiskey Park) is capable of housing upwards of 40,000+ people, natrually with high traffic during the 80+ home games during the MLB Season Problem: Engineer wanted a system that would work around configurations(light poles, parking lot barriers, etc). Read More -
Hard Rock Stadium
Miami Gardens, FloridaHard Rock Stadium is a renowned venue, serving as the home of the the NFL’s Miami Dolphins and University of Miami Hurricanes. The stadium has hosted the second-most Super Bowls of any venue in the nation and matches for two FIFA World Cups as of 2026. The 65,000+ capacity stadium… Read More -

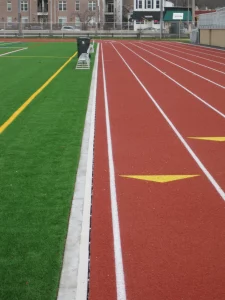

Hart Park Athletic Field Improvements
Wauwatosa, WisconsinHart Park, established in 1921, was, and currently is, the City’s major community park, and was created near Charles Hart’s first mill. Originally called City Park when the Common Council purchased the 19.5-acre tract of land, the name was changed, in 1960, to recognize the original settler of the area. Read More -

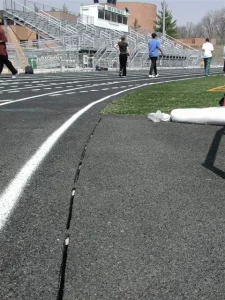

Huron High School
Ann Arbor, MichiganACO Sport System 2000 was installed at Huron High School in Ann Arbor, MI to provide drainage around the track radius. The slotted system ensures effective water management while creating a smooth transition to the ‘D’ area, enhancing safety and performance for student athletes. -

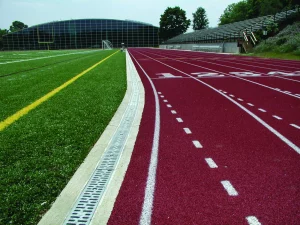

Kenyon College
Gambier, OhioKenyon College is a private liberal arts college in Gambier, Ohio. It was founded in 1824 and has a 1,000-acre campus is set in a rural setting. Problem: A major overhaul of the sports facilities at the college the outdoor athletic track was resurfaced and a new perimeter trench drain… Read More -

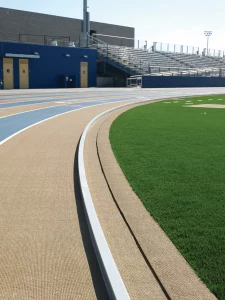

LA Southwest College
Los Angeles, CaliforniaLos Angeles Southwest College is a public community college in the unincorporated area of West Athens, California in the Los Angeles County, near the city of Los Angeles. It is part of the Los Angeles Community College District. Problem: In order to protect the investment of the new sports complex… Read More -

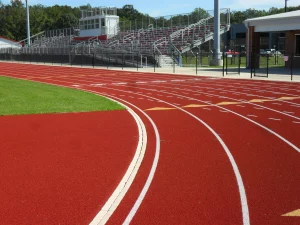

Laurel Middle High School
Laurel, DelawareLaurel High School is a public high school in Laurel, Delaware, a community in Sussex County. The total 2009–2010 high school enrollment was 531. The student-to-teacher ratio is 22 to 1. Problem: Laurel high school’s 400 meter outdoor track required a trench drain to maximize track life and ensure efficient… Read More -
Levi’s Stadium
Santa Clara, CaliforniaLevi’s Stadium is home to the NFL’s San Francisco 49ers and has served as the hosting location for Super Bowls, Rugby World Cups, college football games, soccer matches, wrestling events, concerts, and ice hockey. The stadium is also known for promoting its green infrastructure components, including a rooftop farm, several… Read More -
Lumen Field
Seattle, WashingtonLumen Field hosts the NFL’s Seattle Seahawks, MLS’s Seattle Sounders FC, and NWSL’s Seattle Reign FC. While primarily serving as a football and soccer venue, the stadium has also been the site for a wide range of other events, including concerts, motorcycle racing, and lacrosse. An attached event center further… Read More -
Mercedes-Benz Stadium
Atlanta, GeorgiaHome of the NFL’s Atlanta Falcons, MLS’s Atlanta United FC, and a future Atlanta NWSL team, Mercedes-Benz Stadium is the proud successor of the now-demolished Georgia Dome. The upgraded stadium now features an innovative architectural design, including an open-air build to provide outdoor play and avoid potential severe weather damage… Read More -

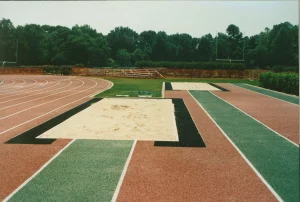

North Carolina State University, Paul H. Derr Track and Field
Raleigh, North CarolinaIn 1951, the University named Paul H. Derr Professor and Head of the Department of Physical Education. A new track facility on the main campus was named in his honor in 2006. Problem: During the refurbishment of the schools athletic facilities, the drainage for the track was to be replaced. Read More -
Ohio State University
Columbus, OhioACO Sport System 7300 jump pit was installed at Ohio State University’s Track to provide precise, durable drainage for the jump pit area. The system’s design ensures smooth integration with the track surface, preventing water accumulation and maintaining optimal conditions for training and competition. -
Oklahoma State Track & Field
Stillwater, OklahomaACO Sport System 2000 was installed at Oklahoma State University’s track and field facility to provide efficient drainage around the 400-meter track. The system protects the surface from water damage, extending track life and ensuring reliable performance during and after inclement weather. -
SoFi Stadium
Inglewood, CaliforniaThe 70,000+ capacity SoFi Stadium is home to both the NFL’s LA Rams and Chargers, and a popular selection for past and upcoming high-profile events, such as the NFL Super Bowl, FIFA World Cup, Rugby World Cup, and Summer Olympics. The venue also regularly houses concerts and a wide variety… Read More -

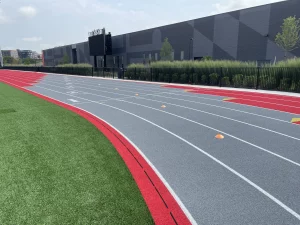

Under Armour Track
Baltimore, MarylandThe new Under Armour track is located in Baltimore, MD. The facility will be a 5 story, 284,000 sq ft. office building as well as the new NCAA-regulation track and field facility with a multisport playing field. This facility will serve primarily as a testing ground for UA’s innovation, product… Read More -
University of Georgia – Reed Plaza Sanford Stadium
Athens, GeorgiaAt the heart of UGA is a multi-functional amenity: Sanford Stadium. New transformation plans are in place for an area where over 30,000 square feet of space will be used on non-game days for student affairs activities and outdoor lectures. Problem: As a newly designated pedestrian route between Sanford Drive… Read More -

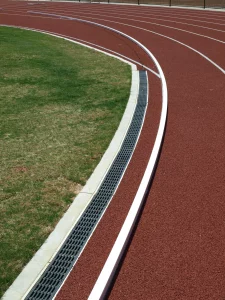

University of Georgia Track and Field
Athens, GeorgiaThe University of Georgia is a public research university with its main campus in Athens, Georgia. Founded in 1785, it is one of the oldest public universities in the United States. Problem: When the design team was creating the new track and field facility at the University of Georgia they… Read More -

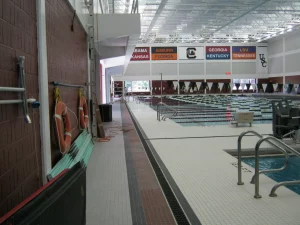

University of South Carolina Pool
Columbia, South CarolinaThe University of South Carolina Aquatics pool operates two indoor swimming pools and one outdoor pool for members of the Carolina community. Problem: The contractor was looking for a drain that would replace the failing point drains they had previously installed around the pool. The new drains would need to… Read More -

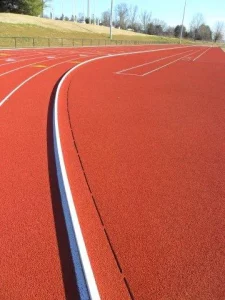

University of Virginia Lanningan Field
Charlottesville, VirginiaACO Sport System 3000 was installed at Lannigan Field, the University of Virginia’s outdoor track and field facility, to deliver reliable drainage around the 400-meter track. The system prevents surface damage and supports safe, long-lasting performance for athletes and community users alike. -
White Bear Lake High School
White Bear Lake, MinnesotaWhite Bear Lake High School’s track facility is a state-of-the-art athletic venue that provides an ideal setting for track and field events. With its top-notch amenities and attention to detail, the track facility creates an inspiring environment for athletes to strive for their personal bests. Problem: Needed to minimize flooding… Read More -
Wrigley Field
Chicago, IllinoisWrigley Field was opened as Weeghman Park in 1914 and has been the home baseball stadium of the Chicago Cubs since 1916. Problem: Renovations to restore and rehabilitate the stadium included the addition of trench drains. A drainage system was required which could handle the load capacity of constant truck… Read More
Considerations
Loading
- For pedestrian only areas, a system and grate with a minimum Load Rating of Class A is recommended. If wheeled carts are likely for deliveries then a higher load rating should be considered
- Parking areas will need to withstand frequent car and truck traffic, a drainage system and grate with a minimum Load Rating of Class C or higher is recommended
- Areas for delivery/maintenance vehicles will need to withstand heavy vehicle traffic, a system and grate with a minimum Load Rating of Class E is recommended. Drains located in areas where vehicles turn or stop should also consider these additional dynamic loads.
Application
- Food preparation environments may require Hygienic solutions and a stainless steel channel and grate should be considered for these areas, along with appropriate grease traps and/or sediment separators
- ADA compliant, Heelsafe and/or slip resistant grates may be required in pedestrian access areas
- Safety and aesthetics in shower areas can be enhanced with linear shower drains
- Athletic fields should consider track and field drainage and accessories from the ACO Sport range
Areas with large run-off volumes may be ideal for modular water storage such as ACO StormBrixx
