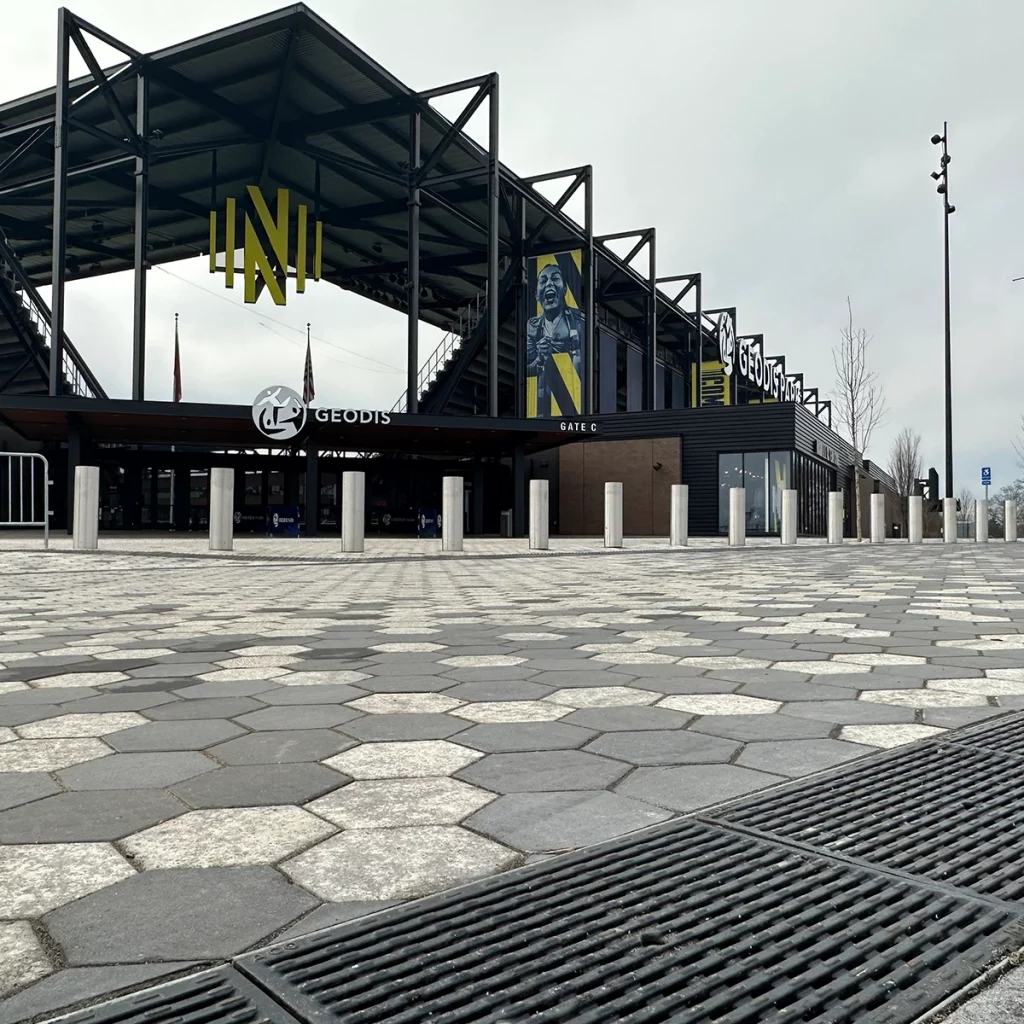

KlassikDrain K300/KS300
KlassikDrain K300/KS300
KlassikDrain K300/KS300

KlassikDrain K300/KS300

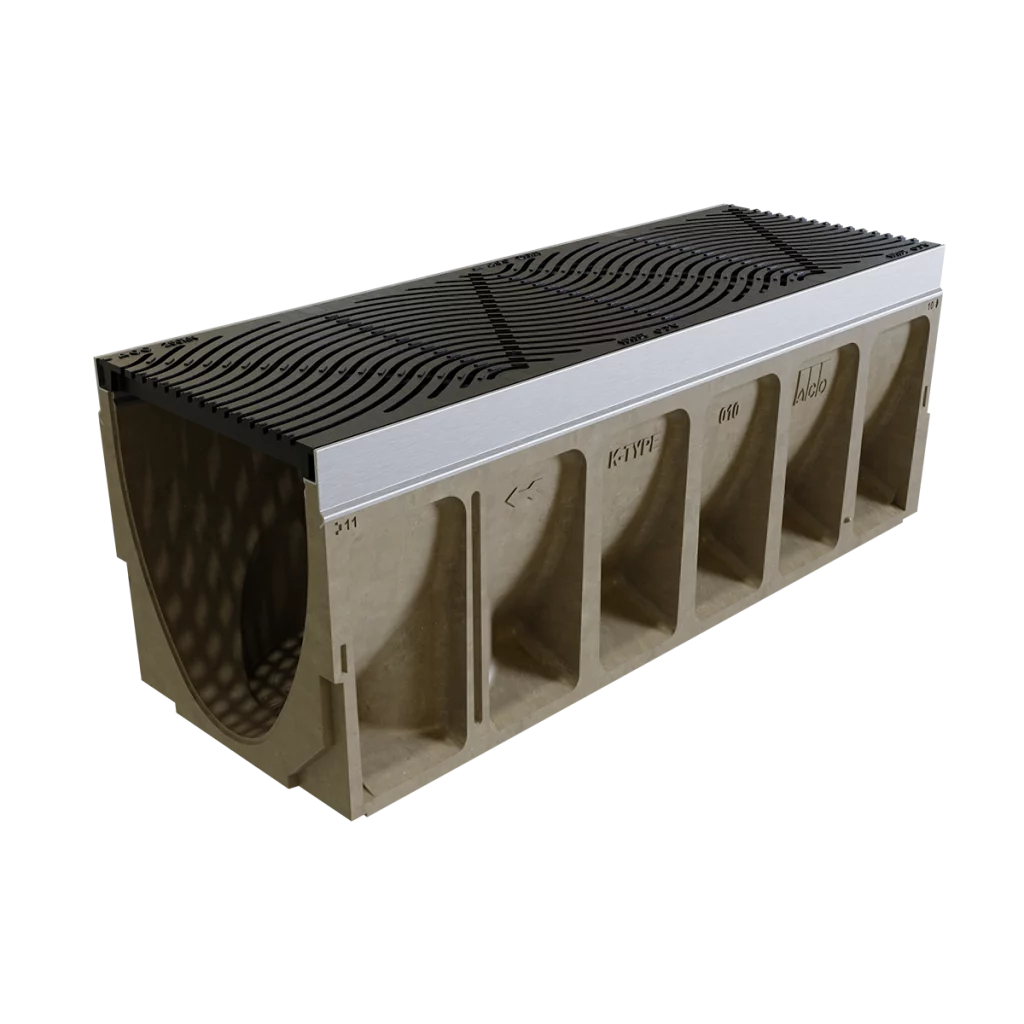

12” Internal Width Polymer Concrete Trench Drain
Modular polymer concrete trench drain system for commercial and industrial use. Available with galvanized (K300) or 304 stainless steel (KS300) edge rails.
  • Pedestrian to industrial-duty loads (EN-1433 Load Class E)
  • 0.5% sloped channels (constant-depth channels available)
  • Grate selection varying in design, material, and load class
  • DrainLok or QuickLok® boltless grate locking options
  • Installation devices and multiple catch basin options
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    General Purpose Drains
    KlassikDrain K300/KS300
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
    • ACO KlassikDrain K300 Product Overview PDF
  • Specification Drawings
    Commercial Trench Drains
    General Purpose Drains
    KlassikDrain K300/KS300
    • KlassikDrain – K3-903 In-Line Catch Basin with Plastic Base Spec Sheet PDF
    • KlassikDrain – K3-904 In-Line Catch Basin with Plastic Riser & Base Spec Sheet PDF
    • KlassikDrain – K3-907 In-Line Catch Basin with Polymer Concrete Base Spec Sheet
    • KlassikDrain – K3-907 In-Line Catch Basin with Polymer Concrete Base Spec Sheet PDF
    • KlassikDrain – K3-908 In-Line Catch Basin w Polymer Concrete Riser & Base Spec Sheet PDF
    • KlassikDrain – K300 Galvanized Steel Edge Rail Channel System Spec Sheet PDF
    • KlassikDrain – KS300 Stainless Steel Edge Rail Channel System Spec Sheet PDF
    • KlassikDrain – Type 805D Mesh Galvanized Steel Grate Spec Sheet PDF
    • KlassikDrain – Type 811Q-813Q Perforated Galvanized Steel Grate Spec Sheet PDF
    • KlassikDrain – Type 830D Mesh Stainless Steel Grate Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    General Purpose Drains
    KlassikDrain K300/KS300
    • K300 DrainLok – Load A – Exposed Asphalt Pavement PDF DWG
    • K300 DrainLok – Load A – Exposed Concrete Pavement PDF DWG
    • K300 DrainLok – Load A – Exposed Paver Pavement PDF DWG
    • K300 DrainLok – Load A – Haunched Asphalt Pavement PDF DWG
    • K300 DrainLok – Load A – Haunched Paver Pavement PDF DWG
    • K300 DrainLok – Load B – Exposed Asphalt Pavement PDF DWG
    • K300 DrainLok – Load B – Exposed Concrete Pavement PDF DWG
    • K300 DrainLok – Load B – Exposed Paver Pavement PDF DWG
    • K300 DrainLok – Load B – Haunched Asphalt Pavement PDF DWG
    • K300 DrainLok – Load B – Haunched Paver Pavement PDF DWG

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Type 847D Longitudinal Stainless Steel

    Type 847D Longitudinal Stainless Steel

    Part No. 142223

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 12"
    Length 39.37"
    Slot Size 0.81" x 0.24" avg.
    Intake Area 263.20 in2
    Weight 29.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 848D Longitudinal Stainless Steel

    Type 848D Longitudinal Stainless Steel

    Part No. 142224

    EN1433 Load Class A3,372 lbs, 46–70 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.81" x 0.24" avg.
    Intake Area 131.60 in2
    Weight 14.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

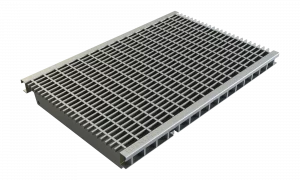

  • Type 805D Mesh Galvanized Steel

    Type 805D Mesh Galvanized Steel

    Part No. 133675

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.63" x 0.87" avg.
    Intake Area 163.70 in2
    Weight 26.20 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

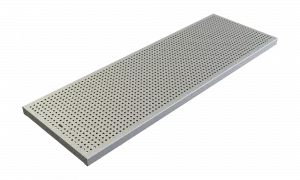

  • Type 811Q Perforated Galvanized Steel

    Type 811Q Perforated Galvanized Steel

    Part No. 98967

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 39.37"
    Slot Size ⌀0.25"
    Intake Area 63.80 in2
    Weight 30.90 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 813Q Perforated Galvanized Steel

    Type 813Q Perforated Galvanized Steel

    Part No. 98966

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size ⌀0.25"
    Intake Area 31.90 in2
    Weight 15.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Calculate water intake Spec sheet
  • Type 830D Mesh Stainless Steel

    Type 830D Mesh Stainless Steel

    Part No. 133678

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.63" x 0.87" avg.
    Intake Area 163.70 in2
    Weight 29.50 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

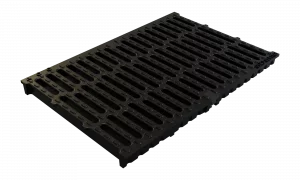

  • Type 860D Slotted Ductile Iron

    Type 860D Slotted Ductile Iron

    Part No. 13870

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.47" x 2.57" avg.
    Intake Area 88.10 in2
    Weight 38.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

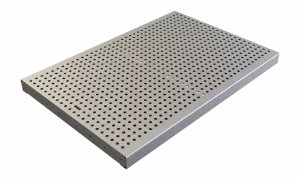

  • Type 865Q Perforated Stainless Steel

    Type 865Q Perforated Stainless Steel

    Part No. 98968

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 39.37"
    Slot Size ⌀0.25"
    Intake Area 63.80 in2
    Weight 30.90 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 866Q Perforated Stainless Steel

    Type 866Q Perforated Stainless Steel

    Part No. 98969

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size ⌀0.25"
    Intake Area 31.90 in2
    Weight 15.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet
  • Type 876D Longitudinal Ductile Iron

    Type 876D Longitudinal Ductile Iron

    Part No. 99588

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 1.97" x 0.24" avg.
    Intake Area 64.30 in2
    Weight 35.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

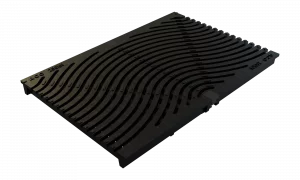

  • Type 880D Wave Ductile Iron

    Type 880D Wave Ductile Iron

    Part No. 99581

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.27" x 0.90" avg.
    Intake Area 88.50 in2
    Weight 37.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Anti-Slip LEED Certified
    Calculate water intake Spec sheet

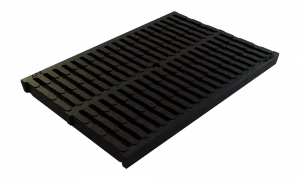

  • Type 861Q Slotted Ductile Iron

    Type 861Q Slotted Ductile Iron

    Part No. 10431

    EN1433 Load Class E134,885 lbs, 1,856–2,785 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.39" x 5.71" avg.
    Intake Area 97.00 in2
    Weight 58.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

Case Studies

US Bank Stadium

US Bank Stadium

Minneapolis, Minnesota
View Case Study
St. John Neumann Church

St. John Neumann Church

Franklin Park, Pennsylvania
View Case Study

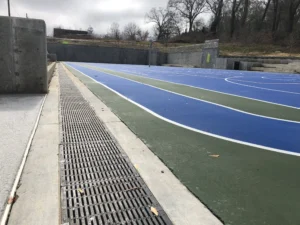

Rodney Cook Sr. Park

Rodney Cook Sr. Park

Atlanta, Georgia
Rodney Cook Sr. Park is a 16-acre park in the Vine City neighborhood of Atlanta. Vine City has been plagued by a complex set of social and economic challenges, along with outdated infrastructure and severe flooding. The 16-acre park has been designed to alleviate the flooding by capturing and storing… Read More
View Case Study

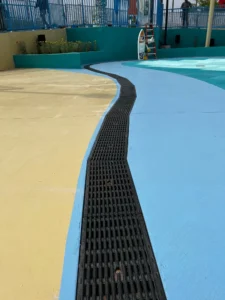

LEGOLAND®

LEGOLAND®

Goshen, New York
View Case Study
Center for Civil Human Rights

Center for Civil Human Rights

Atlanta, Georgia
View Case Study
Loyola University Maryland

Loyola University Maryland

Baltimore, Maryland
Loyola University Maryland is a private Jesuit university in Baltimore, Maryland. All new buildings and major renovation projects at Loyola University Maryland will be built in accordance with the University’s new Green Building Policy. Problem: The project required a drainage system that did not compromise aesthetics. The architecture of the… Read More
View Case Study
Lexington 7 Retail

Lexington 7 Retail

Ashburn, Virginia
Lexington 7, a 66,000-square-foot building with retail space aiming to create an entertainment destination with space for restaurants, a potential food hall, brewery, escape room, climbing gym or bounce house, fitness center and cycling studio. Problem: The project required a trench drain system that could withstand the constant movement from… Read More
View Case Study

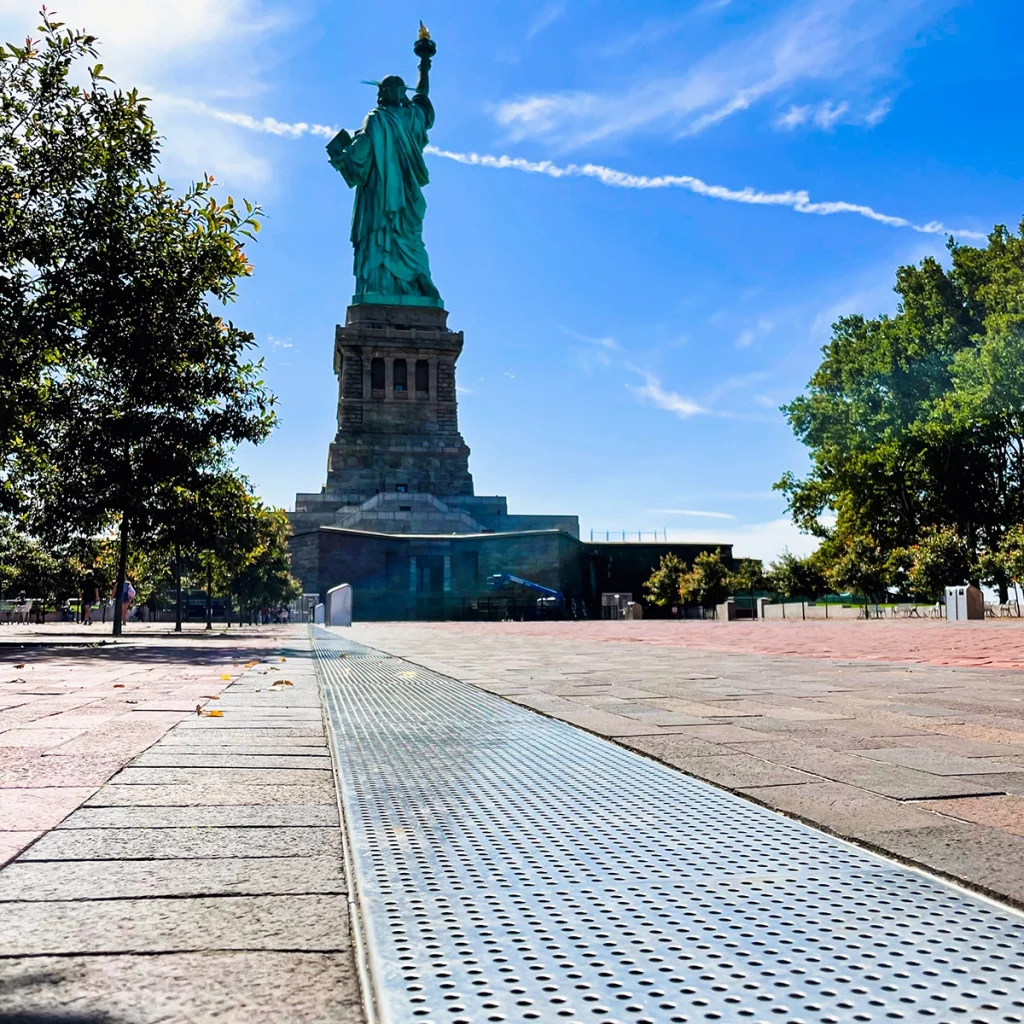

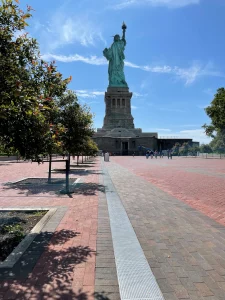

Liberty Island

Liberty Island

New York, New York
ACO KlassikDrain K300 was installed on Liberty Island to manage stormwater around visitor paths and queuing areas. The high capacity channel supports heavy foot traffic and service carts, keeping surfaces dry and accessible while preserving the site’s historic setting.
View Case Study
Summer Street

Summer Street

Boston, Massachusetts
ACO KlassikDrain K300 was installed along the walking path on Summer Street to capture runoff and keep pedestrian areas dry. The durable channel provides pedestrian-safe drainage, reducing ponding and slip hazards while maintaining clear, accessible passage.
View Case Study
