PowerDrain S200K
PowerDrain S200K
PowerDrain S200K

PowerDrain S200K

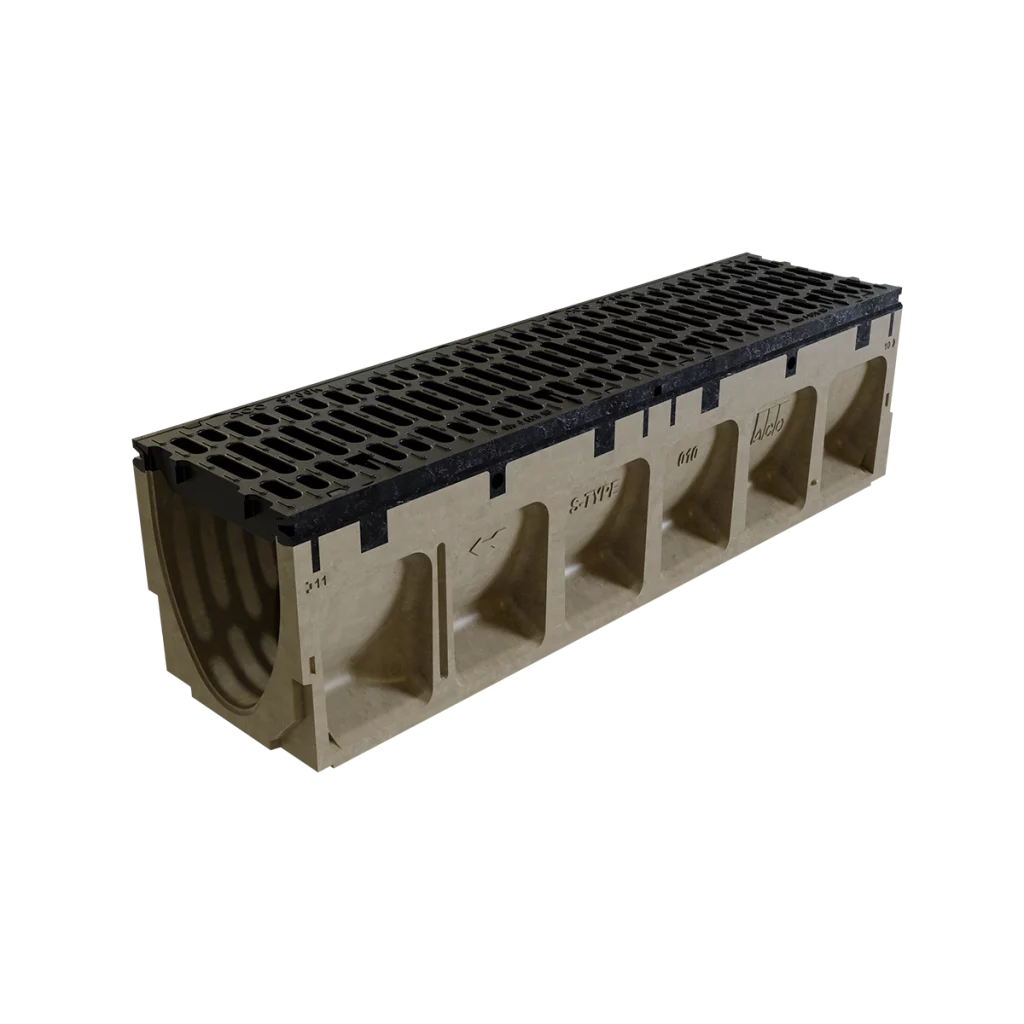

8" Internal Width Heavy-Duty Trench Drain
Modular polymer concrete trench drain system for heavy-duty applications, featuring an integrally cast-in ductile iron edge rail.
  • Pedestrian to heavy industrial-duty loads (EN-1433 Load Class F)
  • Loading standard includes airport airside 200K lb proof load
  • 0.5% sloped channels (constant-depth channels available)
  • Slotted or ADA-compliant longitudinal ductile iron grates
  • Bolted or PowerLok® boltless grate locking options
  • Installation devices and multiple catch basin options
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S200K
    • ACO Drain® Catalog VIEW
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO PowerDrain S200K Product Overview PDF
  • Specification Drawings
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S200K
    • PowerDrain S200K – Ductile Iron Slotted Grate Spec Sheet PDF
    • PowerDrain S200K – Ductile Iron Longitudinal Grate Spec Sheet PDF
    • PowerDrain S200K – 4-Bolt Ductile Iron Grate Spec Sheet PDF
    • PowerDrain – S200K Iron Edged Channels Spec Sheet PDF
    • PowerDrain – SK2-632D Catch Basin with Polymer Concrete Riser & Base Spec Sheet PDF
    • PowerDrain – SK2-902D In-Line Catch Basin with Plastic Base Spec Sheet PDF
    • PowerDrain – SK2-906D In-Line Catch Basin with Polymer Concrete Base Spec Sheet PDF
    • PowerDrain – S200K Iron Edged Channel System with Longitudinal Grate Spec Sheet PDF
    • PowerDrain – S200K Iron Edged Channel System with Slotted Grate Spec Sheet PDF
    • PowerDrain – SK2-621D Catch Basin with Plastic Base Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S200K
    • S200K – Load F – Exposed Paver Pavement with Concrete Anchors PDF DWG
    • S200K – Load F – Exposed Concrete Pavement with Concrete Anchors PDF DWG
    • S200K – Load F – Exposed Ashphalt Pavement with Concrete Anchors PDF DWG
    • S200K – Load D – Haunched Paver Pavement PDF DWG
    • S200K – Load D – Exposed Concrete Pavement PDF DWG
    • S200K – Load D – Exposed Paver Pavement PDF DWG
    • S200K – Load D – Haunched Asphalt Pavement PDF DWG
    • S200K – Load E – Exposed Asphalt Pavement PDF DWG
    • S200K – Load E – Exposed Concrete Pavement PDF DWG
    • S200K – Load E – Exposed Paver Pavement PDF DWG

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • PowerLok® Longitudinal Ductile Iron

    PowerLok® Longitudinal Ductile Iron

    Part No. 72263

    EN1433 Load Class E134,885 lbs, 1,856–2,785 PSI
    Width 8"
    Length 19.69"
    Slot Size 1.36" x 0.45" avg.
    Intake Area 32.40 in2
    Weight 26.40 lbs
    ADA Compliant Anti-Slip Bicycle Safe LEED Certified
    Calculate water intake Spec sheet
  • 4-Bolt Slotted Ductile Iron

    4-Bolt Slotted Ductile Iron

    Part No. 99591

    FAA Airside Guidance200,000 lb Proof Load
    Width 8"
    Length 19.69"
    Slot Size 0.71" x 3.62" avg.
    Intake Area 71.30 in2
    Weight 26.40 lbs
    Bicycle Safe LEED Certified
    Calculate water intake Spec sheet
  • PowerLok® Slotted Ductile Iron

    PowerLok® Slotted Ductile Iron

    Part No. 02449

    FAA Airside Guidance200,000 lb Proof Load
    Width 8"
    Length 19.69"
    Slot Size 0.71" x 3.62" avg.
    Intake Area 70.10 in2
    Weight 30.80 lbs
    Bicycle Safe LEED Certified
    Calculate water intake Spec sheet

Case Studies

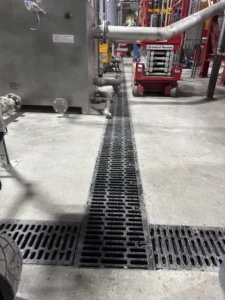

Mohawk Industries, Inc.

Mohawk Industries, Inc.

View Case Study
Upland High School

Upland High School

View Case Study

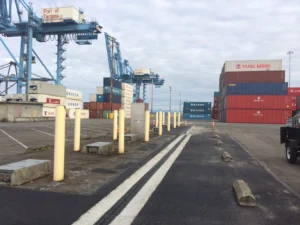

Olympic Container Terminal Port of Tacoma

Olympic Container Terminal Port of Tacoma

View Case Study
Lidl Grocery Store

Lidl Grocery Store

View Case Study

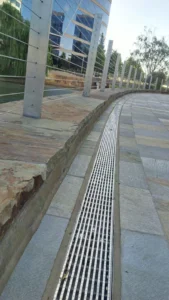

Granite Park

Granite Park

View Case Study
Central Valley Plaza FedEx Center

Central Valley Plaza FedEx Center

ACO PowerDrain S200K with ADA compliant grates was specified to eliminate ponding around the walkway at a FedEx Office site. The channel moves stormwater quickly to keep pedestrian routes safe during both light rain and heavy downpours.
View Case Study

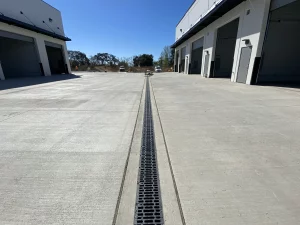

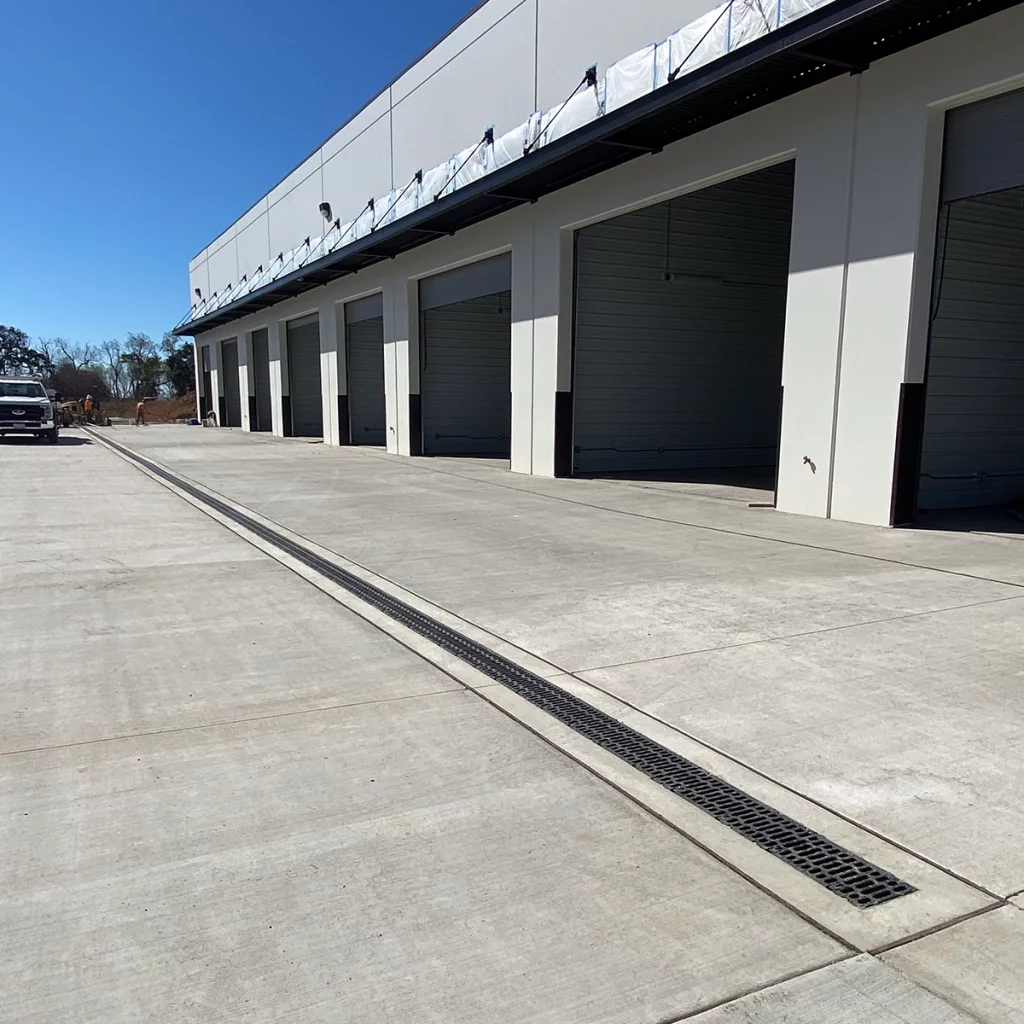

Napa Vault Industrial Storage

Napa Vault Industrial Storage

ACO PowerDrain S200K was installed in the drive aisles at Napa Vault. The 8 inch interior width met design criteria, while Class F slotted grates handle constant heavy traffic and simplify maintenance during the site’s initial construction phase.
View Case Study

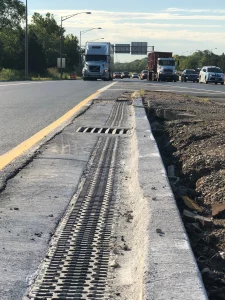

IDOT 7 West I90

IDOT 7 West I90

ACO PowerDrain S200K was specified on the I-90 corridor near O’Hare to collect runoff from steep side slopes while maintaining an 8 inch width. Class F performance and IDOT grate pull compliance suit variable shoulder traffic and deliver reliable drainage through phase two improvements.
View Case Study

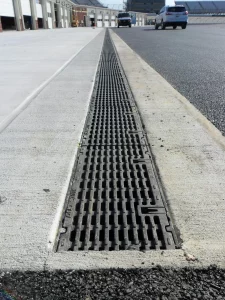

Dover Motor Speedway

Dover Motor Speedway

ACO PowerDrain S200K serves busy garage entrances at Dover Motor Speedway. The heavy-duty polymer concrete channel evacuates surface water quickly and withstands continuous vehicle loads, improving safety and uptime in one of the site’s most demanding areas.
View Case Study

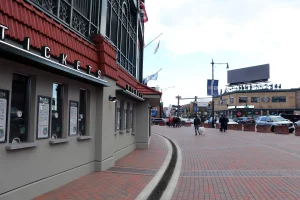

Wrigley Field

Wrigley Field

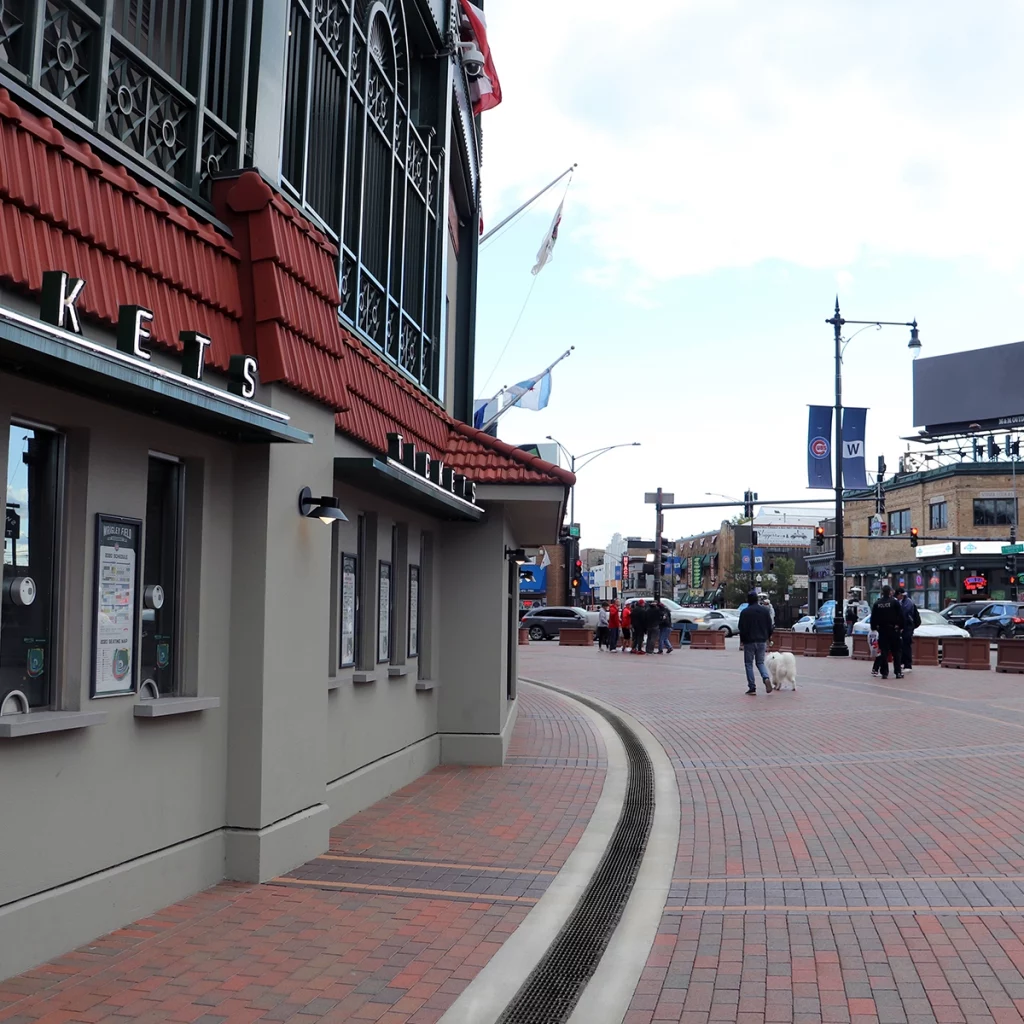

ACO PowerDrain S200K with PowerLok® longitudinal ductile iron grates was installed at Wrigley Field to manage stormwater and withstand constant truck traffic. About 310 feet across 92 channels delivers heavy-duty sloped drainage that’s easy to clean and maintain, keeping access areas safe.
View Case Study
