PowerDrain S300K
PowerDrain S300K
PowerDrain S300K

PowerDrain S300K

12" Internal Width Heavy-Duty Trench Drain
Modular polymer concrete trench drain system for heavy-duty applications, featuring an integrally cast-in ductile iron edge rail.
  • Pedestrian to heavy industrial-duty loads (EN-1433 Load Class F)
  • Loading standard includes airport airside 200K lb proof load
  • 0.5% sloped channels (constant-depth channels available)
  • Slotted or ADA-compliant longitudinal ductile iron grates
  • Bolted or PowerLok® boltless grate locking options
  • Installation devices and multiple catch basin options
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S300K
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
    • ACO PowerDrain S300K Product Overview PDF
  • Specification Drawings
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S300K
    • PowerDrain – S300K Iron Edged Channel System with Longitudinal Grate – ADA Spec Sheet PDF
    • PowerDrain – S300K Iron Edged Channels Spec Sheet PDF
    • PowerDrain – SK3-903D In-Line Catch Basin with Plastic Base Spec Sheet PDF
    • PowerDrain – SK3-904D Catch Basin with Plastic Riser & Base Spec Sheet PDF
    • PowerDrain – SK3-907D In-Line Catch Basin with Polymer Concrete Base Spec Sheet PDF
    • PowerDrain – SK3-908D In-Line Catch Basin w Polymer Concrete Riser & Base Spec Sheet PDF
    • PowerDrain S300K – 4-Bolt Ductile Iron Slotted Grate Spec Sheet PDF
    • PowerDrain S300K – Ductile Iron Longitudinal Grate Spec Sheet PDF
    • PowerDrain S300K – Ductile Iron Slotted Grate Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S300K
    • S300K – Load A – Exposed Asphalt Pavement PDF DWG
    • S300K – Load A – Exposed Concrete Pavement PDF DWG
    • S300K – Load A – Exposed Paver Pavement PDF DWG
    • S300K – Load A – Haunched Asphalt Pavement PDF DWG
    • S300K – Load A – Haunched Paver Pavement PDF DWG
    • S300K – Load B – Exposed Asphalt Pavement PDF DWG
    • S300K – Load B – Exposed Concrete Pavement PDF DWG
    • S300K – Load B – Exposed Paver Pavement PDF DWG
    • S300K – Load B – Haunched Asphalt Pavement PDF DWG
    • S300K – Load B – Haunched Paver Pavement PDF DWG

Tools

  • tool icon set_Run Layout Design

    ACO Drain Run Layout Designer

    ACO Scheduler helps create, plan, and profile ACO Drain run layouts compete with an itemized bill of materials.

    Use Tool
  • tool icon set_SWM Trench Hydraulics

    Stormwater Trench Drain Hydraulics

    ACO’s HYDROlite software provides accurate Stormwater channel size recommendations.

    Use Tool
  • tool icon set_Grate Hydraulics

    Stormwater Grate Intake Calculator

    Provides Stormwater grate intake performance recommendations.

    Use Tool
  • Stormwater Grate Visualizer

    Stormwater Grate Visualizer

    View ACO Stormwater grates installed in several surface finishes.

    Use Tool

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • PowerLok® Longitudinal Ductile Iron

    PowerLok® Longitudinal Ductile Iron

    Part No. 96833

    EN1433 Load Class E134,885 lbs, 1,856–2,785 PSI
    Width 12"
    Length 19.69"
    Slot Size 0.76" x 0.31" avg.
    Intake Area 63.20 in2
    Weight 64.00 lbs
    ADA Compliant Bicycle Safe Heel Resistant Anti-Slip LEED Certified
    Calculate water intake Spec sheet

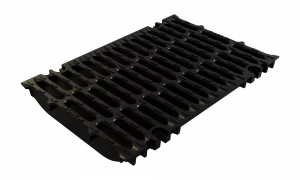

  • 4-Bolt Slotted Ductile Iron

    4-Bolt Slotted Ductile Iron

    Part No. 99592

    FAA Airside Guidance200,000 lb Proof Load
    Width 12"
    Length 19.69"
    Slot Size 0.71" x 3.75" avg.
    Intake Area 115.50 in2
    Weight 50.20 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

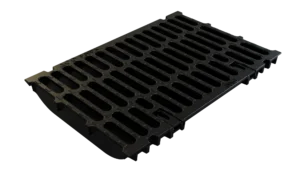

  • PowerLok® Slotted Ductile Iron

    PowerLok® Slotted Ductile Iron

    Part No. 02445

    FAA Airside Guidance200,000 lb Proof Load
    Width 12"
    Length 19.69"
    Slot Size 0.71" x 3.61" avg.
    Intake Area 122.60 in2
    Weight 50.00 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

Case Studies

Lower Fox River OU2-5 - Tetra Tech

Lower Fox River OU2-5 – Tetra Tech

Green Bay, Wisconsin
The Lower Fox River Operable Units 2–5 (OU2-5) area, which supports the Green Bay Sediment Processing Facility, has begun planning infrastructure upgrades. Tetra Tech EC, Inc. was involved in both the planning and implementation of the site improvements. Problem: Tetra Tech EC, Inc.’s purpose is to avoid unwanted oil discharges… Read More
View Case Study
The Porch

The Porch

Chicago, Illinois
The Porch is Sterling Bay’s newest office destination in Fulton Market. The building’s contemporary design has a dynamic wall of perforated metal screens that surrounds a 200-car parking garage. To accommodate the expected rise in journeys via ride-hailing services such as Lyft and Uber, the garage’s entrance will have a… Read More
View Case Study
Euclid Waterfront

Euclid Waterfront

Euclid, Ohio
The Euclid, Ohio Waterfront Improvement Project is a transformational, precedent-setting erosion mitigation and public access infrastructure project that is essential for livability, economic growth and community resiliency. Problem: Phase 2 of the project focused on the restoration of a 3/4-mile stretch of shoreline as well as the construction of an… Read More
View Case Study
The Flats at East Bank

The Flats at East Bank

Cleveland, Ohio
The Flats is a mixed-use industrial, entertainment, and increasingly residential area of the Cuyahoga Valley neighborhood of Cleveland, Ohio, USA. The name reflects its low-lying topography on the banks of the Cuyahoga River. Problem: Improvements near the area where two retail buildings, restaurants, and bars are being constructed have begun… Read More
View Case Study
BNA Concourse D Expansion

BNA Concourse D Expansion

Nashville, Tennessee
Nashville International Airport (BNA) has provided service to flights entering and leaving Nashville since 1937. The airport includes Joint Base Berry Field, home base of the Tennessee Army National Guard. Problem: Expansion to Concourse D’s airside required modular drainage that could withstand 200,000 lb loads. ACO Solution: PowerDrain… Read More
View Case Study

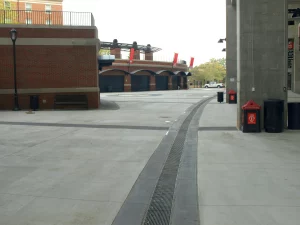

University of Georgia - Reed Plaza Sanford Stadium

University of Georgia – Reed Plaza Sanford Stadium

Athens, Georgia
At the heart of UGA is a multi-functional amenity: Sanford Stadium. New transformation plans are in place for an area where over 30,000 square feet of space will be used on non-game days for student affairs activities and outdoor lectures. Problem: As a newly designated pedestrian route between Sanford Drive… Read More
View Case Study

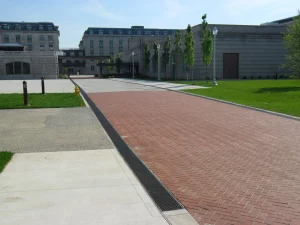

U.S. Naval Academy - Smoke Park

U.S. Naval Academy – Smoke Park

Annapolis, Maryland
ACO PowerDrain S300K was installed in parallel runs to eliminate tidal and storm flooding at the training ground. Longitudinal ADA-compliant grates evacuate large volumes quickly, and Class E ductile iron components endure heavy pedestrian use and equipment.
View Case Study

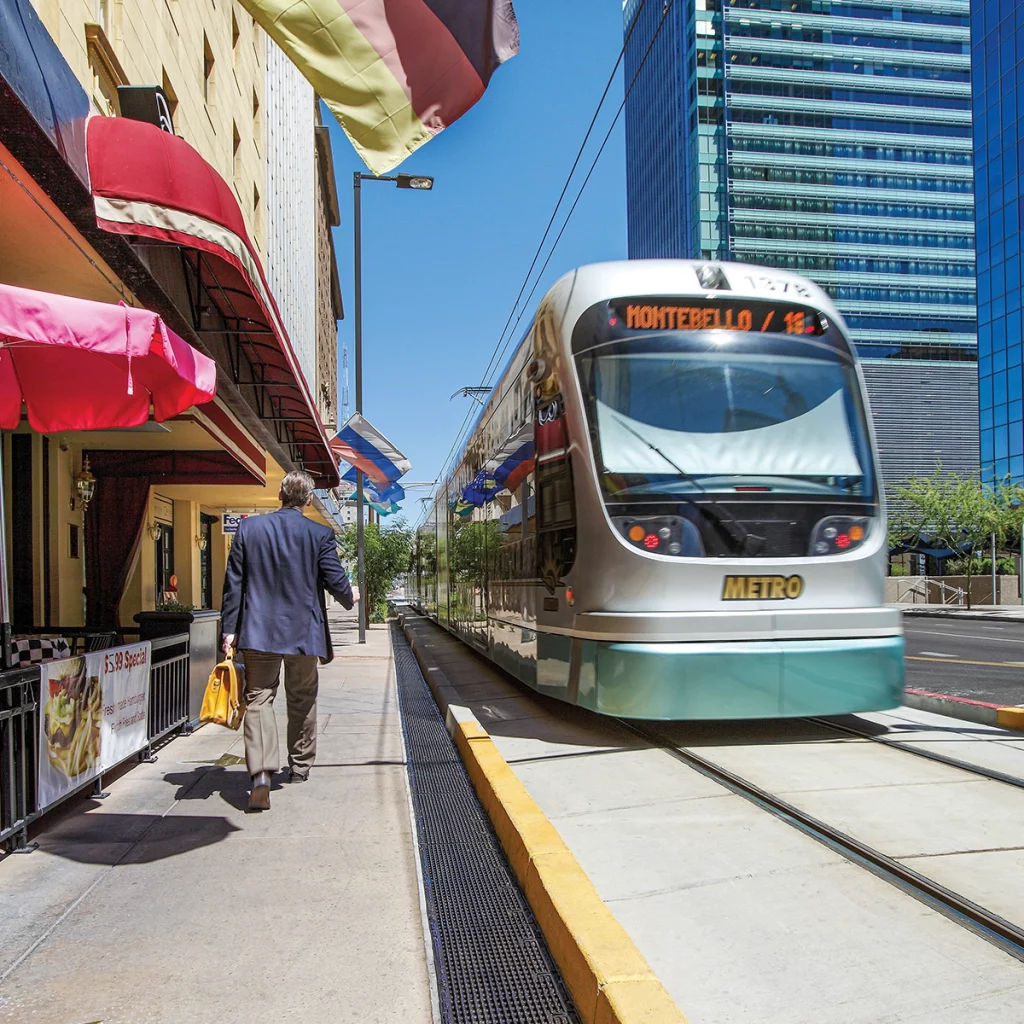

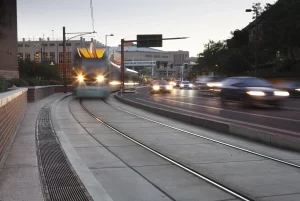

Phoenix Valley Metro Rail

Phoenix Valley Metro Rail

Phoenix, Arizona
The Phoenix Valley Metro Light Rail added 42 miles of new light rail and hosted stations in the metropolitan area. Today, approximately 50,000 riders use the system daily. Problem: The construction of the Phoenix Valley Metro Light Rail called for a variety of surface drainage solutions. Although Arizona is a… Read More
View Case Study

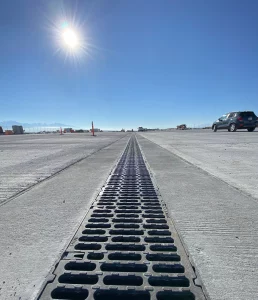

Salt Lake Airport - Deicing Pad

Salt Lake Airport – Deicing Pad

Salt Lake City, Utah
Salt Lake City International Airport is a civil-military airport about 4 miles west of downtown Salt Lake City, Utah, United States. The airport is the closest commercial airport for more than 2.5 million people. Problem: The Salt Lake City Airport construction project added a vital lifeline to airport operations by… Read More
View Case Study

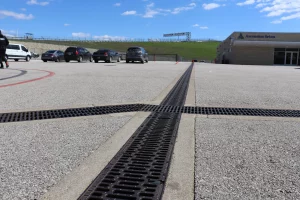

Circuit of the Americas - Formula 1 Race Track

Circuit of the Americas – Formula 1 Race Track

Austin, Texas
Since 1950, Formula One has been the world’s top motor racing championship. Many F1 races were staged in the United States during that time. The final Formula One race in the United States was conducted in 2007 at the Indianapolis Motor Speedway in Indiana. It was announced in 2010 that… Read More
View Case Study
