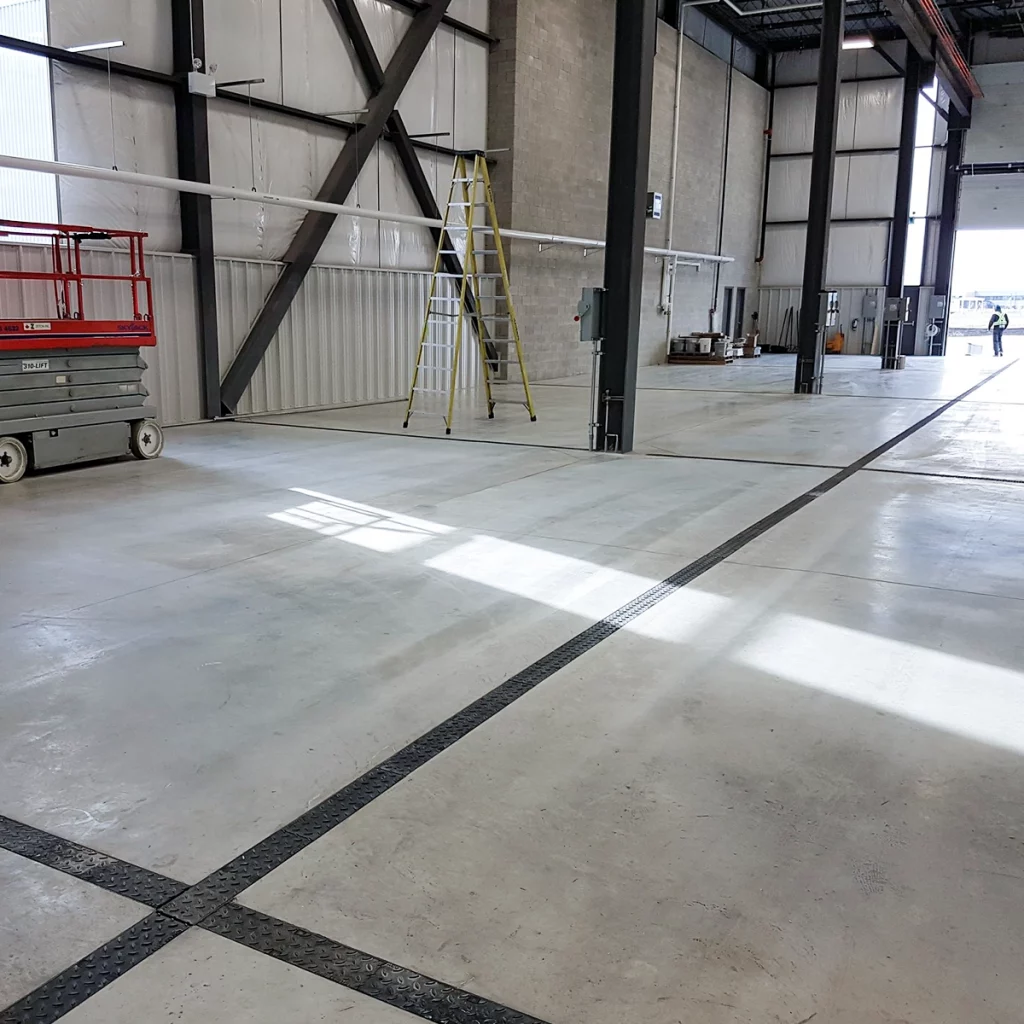

UtilityDuct DK100

UtilityDuct DK100

4″ Internal Width Modular Polymer Concrete Duct
Polymer concrete ducting system for surface-level utilities that protects cables, pipes, and other components while shielding people from contact with hazardous contents.
  • Pedestrian to heavy industrial-duty loads (EN-1433 Load Class E)
  • 3 neutral depths available
  • Integrally cast-in galvanized steel edge rails
  • Excellent dielectric, chemical, and oil resistance
  • Cost-effective and easy to install
  • Galvanized steel or ductile iron solid cover options
  • DrainLok boltless locking holds covers in place without locking bars
  • Removable covers allow continuous access for cables, pipes, or system maintenance
Find a Rep

Technical Documents

  • Specification Drawings
    Utility & Cable Management
    Utility Trench
    UtilityDuct DK100
    • ACO UtilityDuct – DK100 System with Type 454D Composite Cover with Microgrip Spec Sheet PDF
    • ACO UtilityDuct – DK100 with Type 456 Solid Iron Covers Spec Sheet PDF
    • ACO UtilityDuct – Type 416D Galvanized Steel Grate Spec Sheet PDF
    • ACO UtilityDuct – Type 454D Composite Cover with Microgrip Spec Sheet PDF
    • ACO UtilityDuct – Type 456D Solid Ductile Iron Cover Spec Sheet PDF
    • ACO UtilityDuct – Type 456Q Solid Ductile Iron Grate Spec Sheet PDF

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Type 454D Solid Composite Microgrip Cover

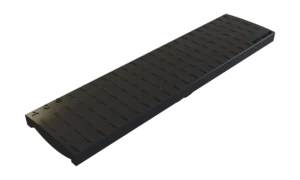

    Type 454D Solid Composite Microgrip Cover

    Part No. 132729

    EN1433 Load Class B28,101 lbs, 387–580 PSI
    Width 4"
    Length 19.69"
    Weight 1.70 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe Non-Metallic
    Spec sheet
  • Type 416D Solid Galvanized Steel Cover

    Type 416D Solid Galvanized Steel Cover

    Part No. 98947

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 39.37"
    Weight 11.73 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Spec sheet
  • Type 456D Solid Ductile Iron Cover

    Type 456D Solid Ductile Iron Cover

    Part No. 12672

    EN1433 Load Class C56,202 lbs, 774–1,160 PSI
    Width 4"
    Length 19.69"
    Weight 12.53 lbs
    ADA Compliant Bicycle Safe Heel Resistant Heel Safe LEED Certified
    Spec sheet

Case Studies

Zeton

Zeton

Oakville, Ontario
ACO UtilityDuct DK100 was installed at Zeton to protect power and process lines across pilot plant areas. The polymer concrete duct shields cables and pipes and provides electrical insulation, while removable covers allow continuous access. Modular plug and play sections simplified layout and improve safety for staff, equipment, and property
View Case Study
View all

Applications
