FloorDrain Square 12"

FloorDrain Square 12″

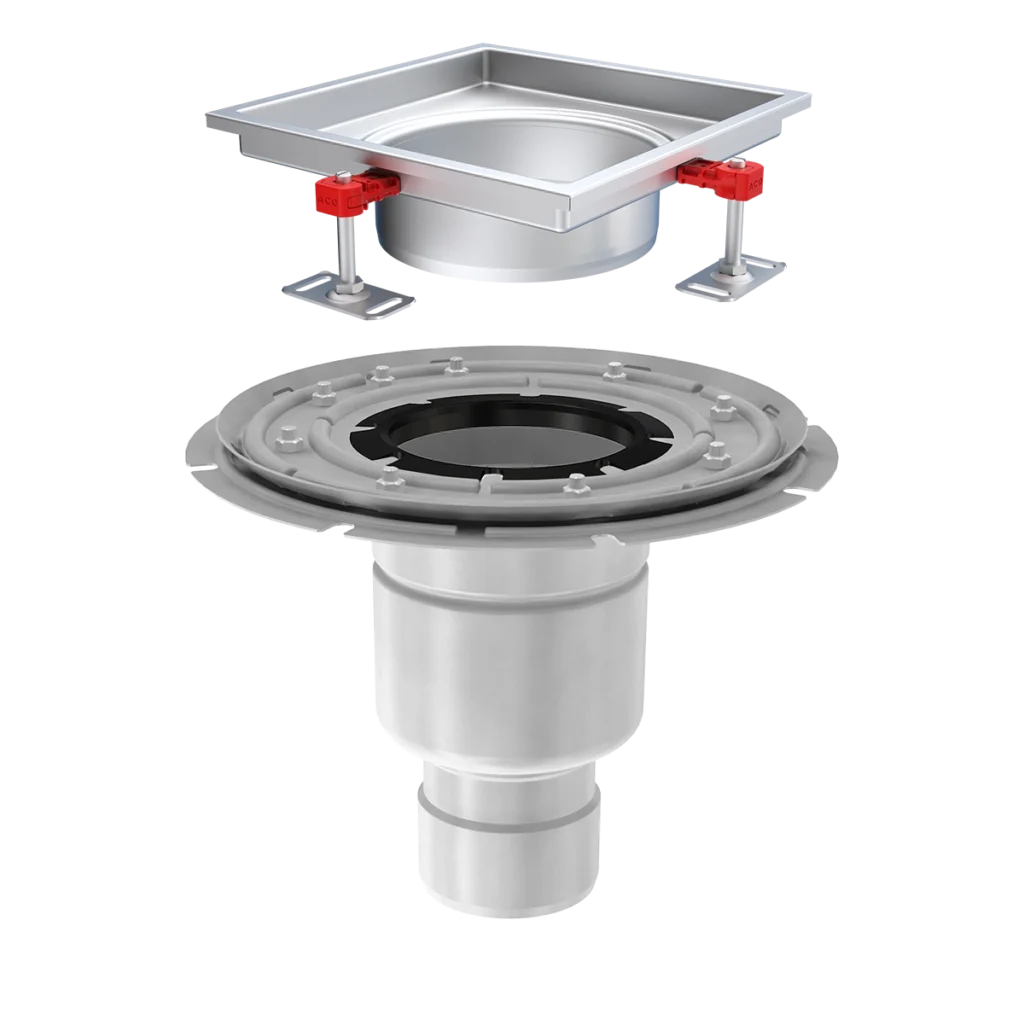

12” Wide Stainless Steel Square Floor Drain
Hygienic stainless steel point drain with minimal installation. Ideal for commercial kitchens/restaurants and food processing areas.
  • 12″ × 12″ square drain body available in AISI 304 or 316L stainless steel
  • Available in fixed-height or adjustable-height models with EasyFix leveling feet
  • Can be used in conjunction with ACO Hub Drains to capture wastewater from multiple outlet lines efficiently
  • Can be stand-alone or integrated into a trench drain system
  • Various square grate style options available
  • Deep-drawn body with ≥ 1/8″ (3 mm) internal radii and dry-sump design for complete drainage and easy cleaning
Find a Rep

Technical Documents

  • Product Literature
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Drains
    FloorDrain Square 12″
    • ACO Stainless Steel Resistance Table PDF
    • ACO Building Drainage Winery Brochure PDF
    • ACO Building Drainage Food & Beverage Brochure PDF
    • ACO Building Drainage Commercial Kitchen Brochure PDF
    • ACO Building Drainage Brewery Brochure PDF
    • ACO FloorDrain Product Line Overview PDF
    • ACO FloorDrain Top & ACO BoxDrain Installation Guide PDF
    • ACO Stainless Catalog VIEW
    • ACO Building Drainage – 304 vs 316L Stainless Steel PDF
  • Specification Drawings
    Sanitary Industrial Stainless Steel Drainage
    Stainless Floor Drains
    FloorDrain Square 12″
    • ACO FloorDrain – 12 Inch Mechanical Clamping Flange, 4 Inch Horizontal Outlet Spec Sheet PDF
    • ACO FloorDrain – 12 Inch Fixed Height, 4 Inch Horizontal Outlet Spec Sheet PDF
    • ACO FloorDrain – 12 Inch Debris Strainer Basket Spec Sheet PDF
    • ACO FloorDrain – 12 Inch Adjustable Top Spec Sheet PDF
    • ACO FloorDrain – 12 Inch Adjustable Location Flange, 4 Inch Horizontal Outlet Spec Sheet PDF
    • ACO FloorDrain – Slot Cover Grate Spec Sheet PDF
    • ACO FloorDrain – Odor Seal Cover Spec Sheet PDF
    • ACO FloorDrain – Quadrato Grate Spec Sheet PDF
    • ACO FloorDrain – Raising Piece Spec Sheet PDF
    • ACO FloorDrain – Funnel Grate Spec Sheet PDF

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

  • Funnel LD

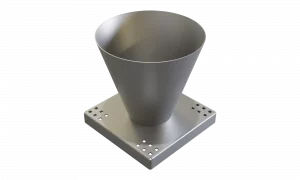

    Funnel LD

    Part No. 413547

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Weight 5.70 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Ladder LD

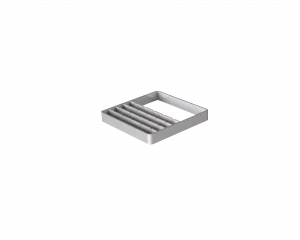

    Half-Ladder LD

    Part No. 416923

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 5.00" Open, 10.55" x 0.90" Ladder avg.
    Intake Area 96.70 in2
    Weight 4.80 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Ladder LD

    Half-Ladder LD

    Part No. 416922

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 5.00" Open, 10.55" x 0.90" Ladder avg.
    Intake Area 96.70 in2
    Weight 4.80 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Plate LD

    Half-Plate LD

    Part No. 416925

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 5.05 avg.
    Intake Area 51.60 in2
    Weight 5.10 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Half-Plate LD

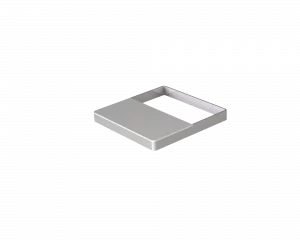

    Half-Plate LD

    Part No. 416924

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 5.04 avg.
    Intake Area 51.60 in2
    Weight 5.10 lbs
    Anti-Slip Chem Resist LEED Certified
    Spec sheet
  • Ladder LD

    Ladder LD

    Part No. 416917

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 0.79" avg.
    Intake Area 88.60 in2
    Weight 7.60 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Ladder LD

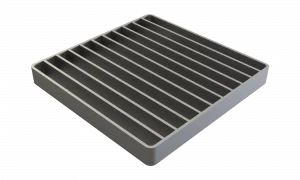

    Ladder LD

    Part No. 416916

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 0.79" avg.
    Intake Area 88.60 in2
    Weight 7.60 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified NSF Certified
    Spec sheet
  • Quadrato LD

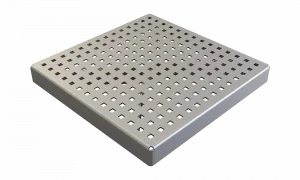

    Quadrato LD

    Part No. 408136

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 0.28" x 0.28" avg.
    Intake Area 14.90 in2
    Weight 3.90 lbs
    ADA Compliant Chem Resist Heel Resistant LEED Certified
    Spec sheet
  • Quadrato LD

    Quadrato LD

    Part No. 408036

    Light Duty (ASME) – ≤2,000 LBS
    Width 12"
    Length 10.55"
    Slot Size 0.28" x 0.28" avg.
    Intake Area 14.90 in2
    Weight 3.90 lbs
    ADA Compliant Chem Resist Heel Resistant LEED Certified
    Spec sheet
  • Frameless Ladder MD

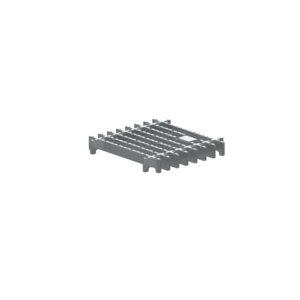

    Frameless Ladder MD

    Part No. 446271

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 0.79" avg.
    Weight 7.50 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified
    Spec sheet
  • Frameless Ladder MD

    Frameless Ladder MD

    Part No. 446270

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 0.79" avg.
    Weight 7.50 lbs
    Anti-Slip Chem Resist Hygienic LEED Certified
    Spec sheet
  • Heel-Safe MD

    Heel-Safe MD

    Part No. 408140

    Medium Duty (ASME) – 2,000-4,999lbs
    Width 12"
    Length 10.55"
    Slot Size 10.55" x 0.25" avg.
    Intake Area 52.70 in2
    Weight 5.80 lbs
    ADA Compliant Anti-Slip Chem Resist Heel Resistant Heel Safe LEED Certified
    Spec sheet
