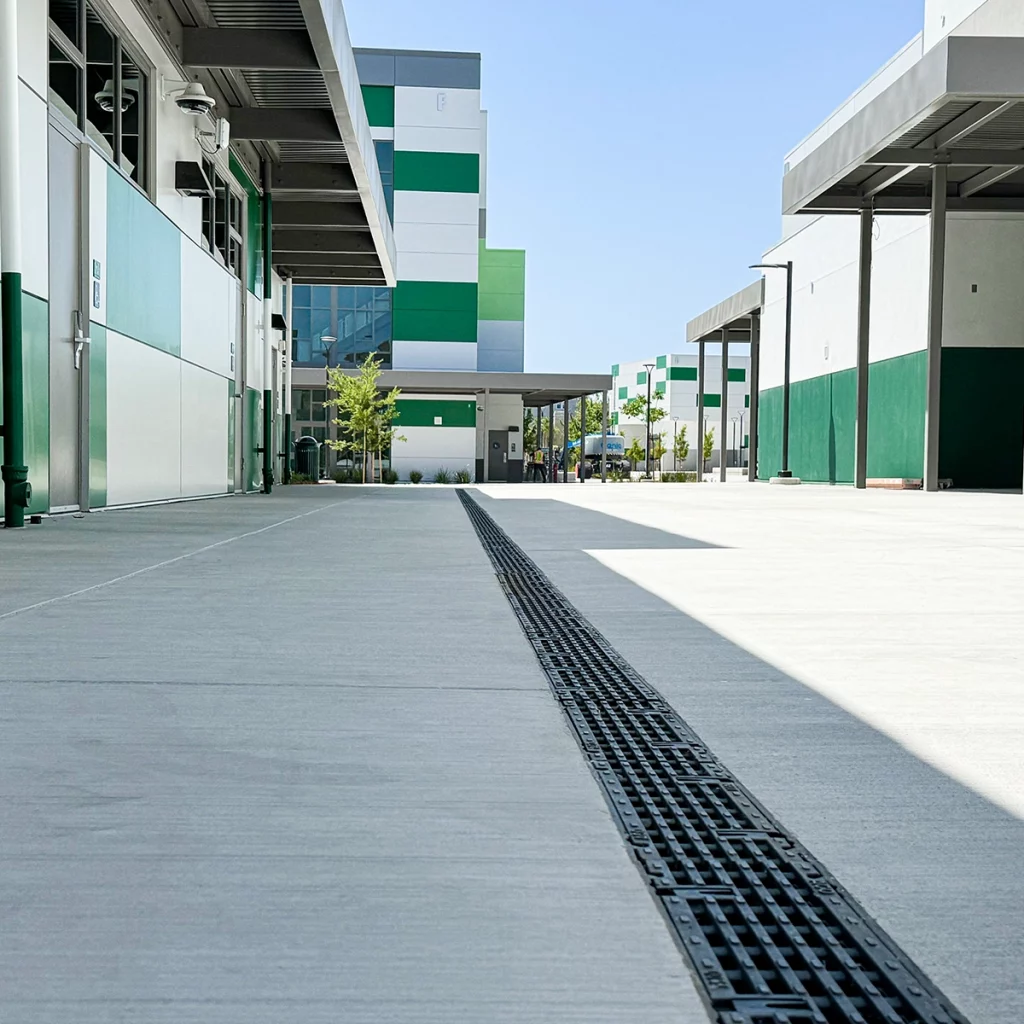

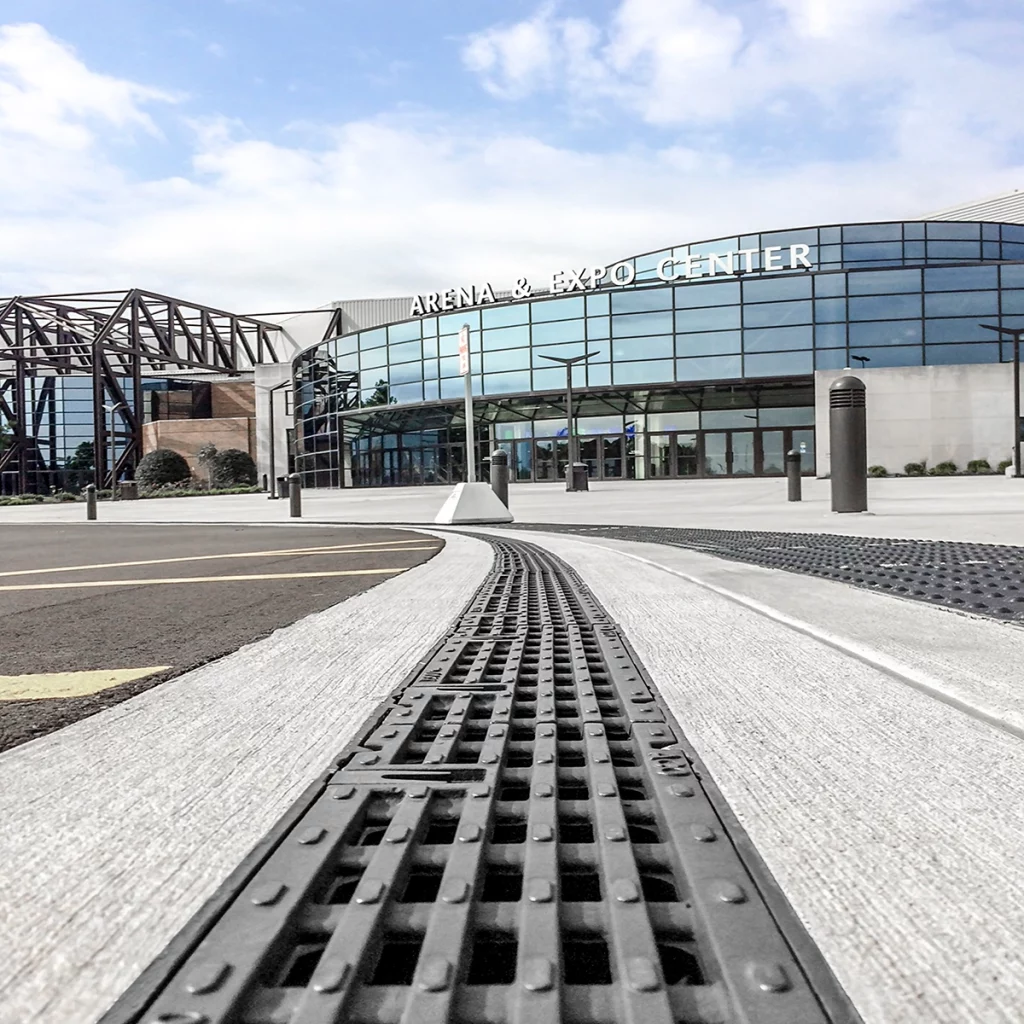

4" Internal Width Heavy-Duty Trench Drain
Modular polymer concrete trench drain system for heavy-duty applications, featuring an integrally cast-in ductile iron edge rail.
  • Pedestrian to heavy industrial-duty loads (EN-1433 Load Class F)
  • Loading standard includes airport airside 200K lb proof load
  • 0.5% sloped channels (constant-depth channels available)
  • Slotted or ADA-compliant longitudinal ductile iron grates
  • Bolted or PowerLok® boltless grate locking options
  • Installation devices and multiple catch basin options
Where to Buy

Technical Documents

  • Product Literature
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S100K
    • ACO Drain Fiberglass System Installation Manual PDF
    • ACO Drain Installation Device Guide PDF
    • ACO Drain Installation Device Positioning Template PDF
    • ACO Drain Overview PDF
    • ACO Drain Polymer Concrete Installation Manual PDF
    • ACO Drain® Catalog VIEW
    • ACO PowerDrain S100K Product Overview PDF
  • Specification Drawings
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S100K
    • PowerDrain – S100K Iron Edged Channel System with Long Grate ADA Spec Sheet PDF
    • PowerDrain – S100K Iron Edged Channel System with Slotted Grate Spec Sheet PDF
    • PowerDrain – S100K Iron Edged Channels Spec Sheet PDF
    • PowerDrain – SK1-621D Catch Basin Spec Sheet PDF
    • PowerDrain – SK1-622D Catch Basin with Polymer Concrete Base Spec Sheet PDF
    • PowerDrain – SK1-631D Catch Basin with Plastic Riser & Base Spec Sheet PDF
    • PowerDrain – SK1-632D Catch Basin with Polymer Concrete Riser & Base Spec Sheet PDF
    • PowerDrain – SK1-901D In-Line Catch Basin with Plastic Base Spec Sheet PDF
    • PowerDrain – SK1-906D In-Line Catch Basin with Polymer Concrete Base Spec Sheet PDF
    • PowerDrain S100K – 4-Bolt Ductile Iron Grate Spec Sheet PDF
  • Standard Installation Details
    Commercial Trench Drains
    Heavy-Duty Drains
    PowerDrain S100K
    • S100K – Load A – Exposed Asphalt Pavement PDF DWG
    • S100K – Load A – Exposed Concrete Pavement PDF DWG
    • S100K – Load A – Exposed Paver Pavement PDF DWG
    • S100K – Load A – Haunched Asphalt Pavement PDF DWG
    • S100K – Load A – Haunched Paver Pavement PDF DWG
    • S100K – Load B – Exposed Asphalt Pavement PDF DWG
    • S100K – Load B – Exposed Concrete Pavement PDF DWG
    • S100K – Load B – Exposed Paver Pavement PDF DWG
    • S100K – Load B – Haunched Asphalt Pavement PDF DWG
    • S100K – Load B – Haunched Paver Pavement PDF DWG

Grates

When selecting a grate for your system, consider the following: Load Class (resistance to pressure failure), Grate Length, Site Needs (e.g. ADA compliance, heel-resistance, etc.), Grate Material (affects load class, corrosion resistance, weight, general appearance), and Grate Design (affects intake area and aesthetics). For further detail, a Grate Visualizer is available here for this system.

Available Grates:

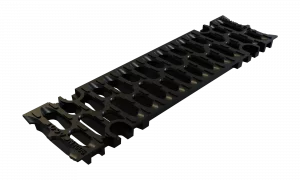

  • 4-Bolt Slotted Ductile Iron

    4-Bolt Slotted Ductile Iron

    Part No. 99590

    FAA Airside Guidance200,000 lb Proof Load
    Width 4"
    Length 19.69"
    Slot Size 0.71" x 1.81" avg.
    Intake Area 36.00 in2
    Weight 10.80 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

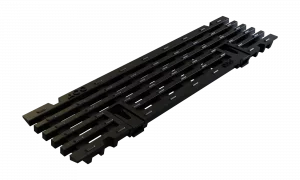

  • PowerLok® Longitudinal Ductile Iron

    PowerLok® Longitudinal Ductile Iron

    Part No. 96096

    FAA Airside Guidance200,000 lb Proof Load
    Width 4"
    Length 19.69"
    Slot Size 1.36" x 0.45" avg.
    Intake Area 25.20 in2
    Weight 13.60 lbs
    ADA Compliant Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

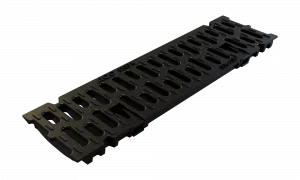

  • PowerLok® Slotted Ductile Iron

    PowerLok® Slotted Ductile Iron

    Part No. 96082

    FAA Airside Guidance200,000 lb Proof Load
    Width 4"
    Length 19.69"
    Slot Size 0.43" x 1.98" avg.
    Intake Area 25.70 in2
    Weight 12.30 lbs
    Bicycle Safe Anti-Slip LEED Certified
    Calculate water intake Spec sheet

Case Studies

Hard Rock Stadium at Miami Gardens Florida

Hard Rock Stadium

Miami Gardens, Florida
Hard Rock Stadium is a renowned venue, serving as the home of the the NFL’s Miami Dolphins and University of Miami Hurricanes. The stadium has hosted the second-most Super Bowls of any venue in the nation and matches for two FIFA World Cups as of 2026. The 65,000+ capacity stadium… Read More
View Case Study

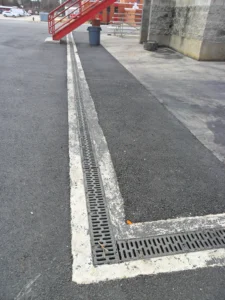

DC Fire Training Academy

DC Fire Training Academy

Washington, D.C.
View Case Study

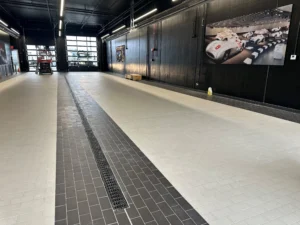

Mercedes-Benz of Romeoville

Mercedes-Benz of Romeoville

Romeoville, Illinois
View Case Study

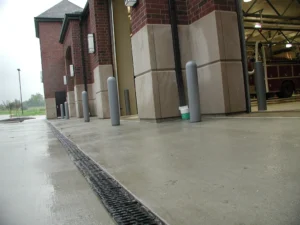

Mantua Fire Department

Mantua Fire Department

Mantua, Ohio
View Case Study

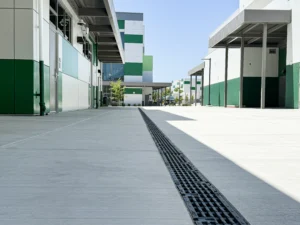

Emerald High School

Emerald High School

Dublin, California
View Case Study
BP Gas Station

BP Gas Station

Manassas, Virginia

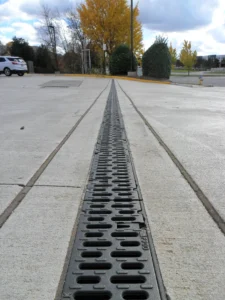

BP is a global oil and gas producer with operations in over 80 countries. BP has a greater economic impact in the United States than any other country, having invested more than $115 billion here since 2005. Problem: Trench drains at gas stations get a high volume of traffic from… Read More
View Case Study

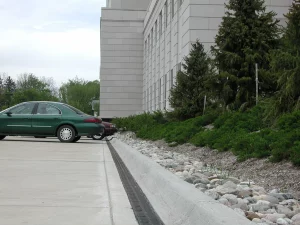

Michigan Hall of Justice

Michigan Hall of Justice

Lansing, Michigan
ACO PowerDrain S100K was installed along elevated curbing at the Michigan State Hall of Justice parking areas to avoid complex grading and speed construction. Ductile iron grates and a heavy-duty channel handle the heaviest applications up to Load Class G, keeping lots clear during storms.
View Case Study
Oakland International Airport

Oakland International Airport

Oakland, California

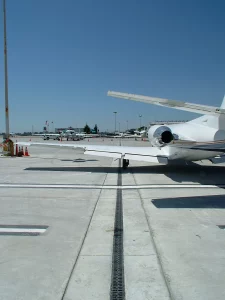

ACO PowerDrain S100K replaced a cast-in-place design at Oakland International Airport’s Hangars 1–5 apron to address flooding from ineffective catch basins. The one-piece channel arrives with grates installed, speeding construction and reducing cost, and its Class F rating supports a wide range of airside vehicle loads.
View Case Study

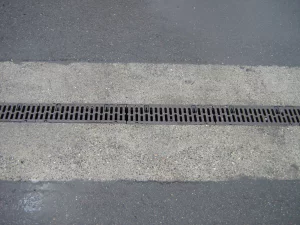

Port of Seattle Pier 115

Port of Seattle Pier 115

Seattle, Washington
The T115 Port of Seattle has about 70 acres of altiplano. Pier T115 is suitable for marine applications such as bulk cargo receiving and transport. Several 30-inch stormwater outfalls are located near the site. Problem: The Port required an effective drainage system to manage stormwater runoff and prevent ponding in… Read More
View Case Study

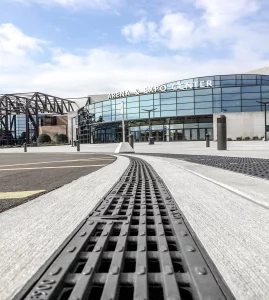

Allen County War Memorial

Allen County War Memorial

Fort Wayne, Indiana
Allen County War Memorial Coliseum is a hub for emergency response in Fort Wayne, Indiana. It also serves as the community’s major evacuation site. During the catastrophic flood of 1982, the Memorial Coliseum served as a shelter and command post. Problem: The summer renovation of the area in front of… Read More
View Case Study
PowerDrain S100K - Independence Ohio Office Bldg Parkng Lot

Independence Office Building

Independence, Ohio

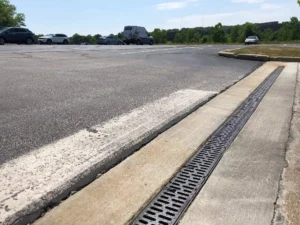

The office complex located in the city of Independence needed a solution for elimanting surface water ponds that accumulated at the entrance of the parking lot area. Problem: The region had previously installed a trench drain system, but not long after, the product collapsed and became a major safety hazard… Read More
View Case Study
View all
